Starter Switch Signal

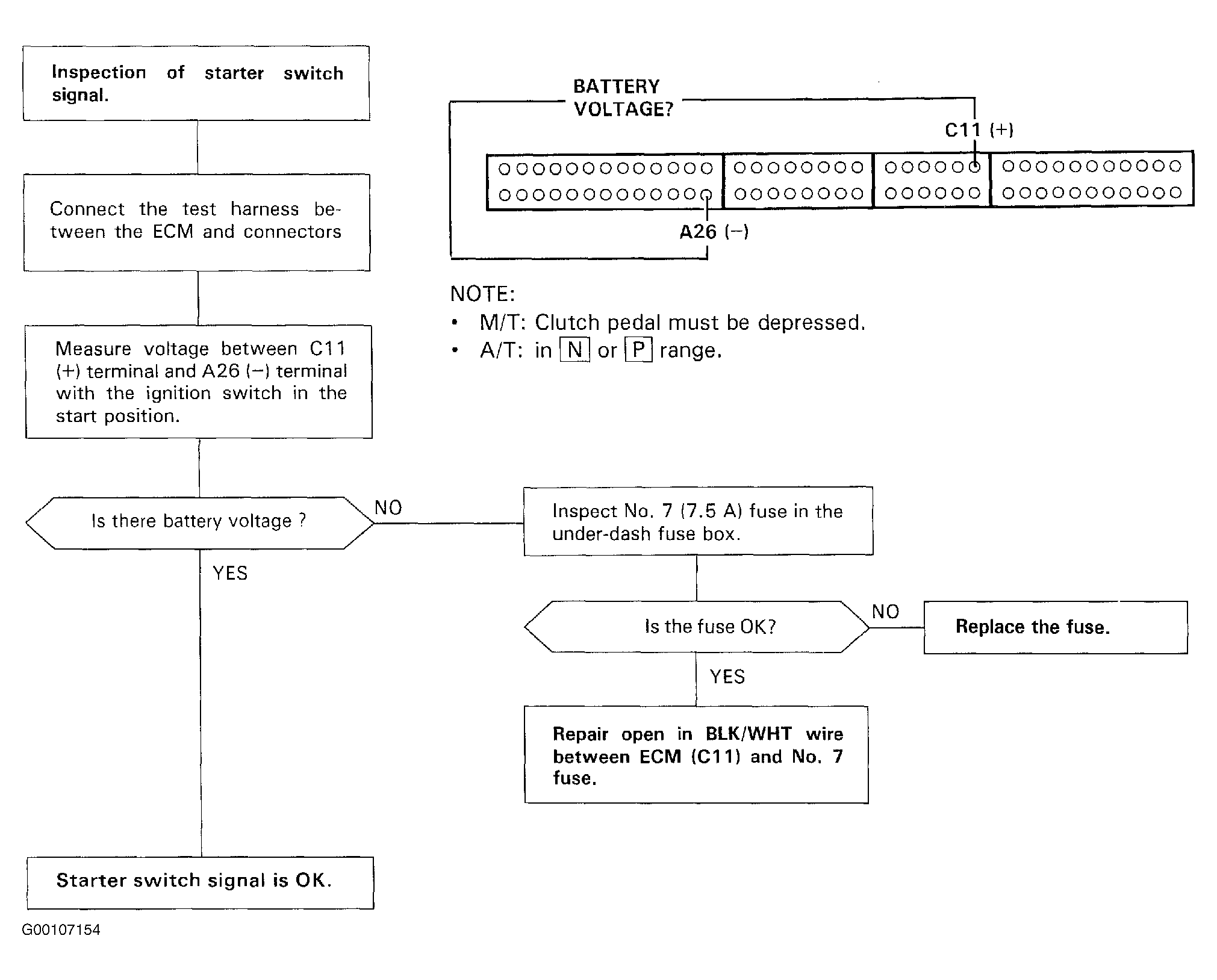

This signals the ECM when the engine is cranking. See Fig 1
.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
