PGM-FI Control System

NOTE: Components are grouped into two categories. The first category covers input devices , which control or produce voltage signals monitored by the ECM. See INPUT DEVICES  . The second category covers output devices, which are components controlled by the ECM. See OUTPUT SIGNALS  .

The Programmed Fuel Injection (PGM-FI) system controls the engine emission and performance functions as well as providing information to other vehicle systems. With the ignition switch in RUN or START, battery voltage is supplied from fuse No. 18 to the Engine Control Module (ECM) through the PGM-FI main relay and the Yellow/Black wires. Battery voltage is supplied at all times from fuse No. 33 and the White/Yellow wires to the ECM for memory functions. The ECM is grounded through the Black wires to G101.

The ECM is self-diagnosing and monitors the sensors for irregular signals. The ECM is programmed with settings for fuel injector discharge duration at various engine speeds and manifold pressures. Discharge duration is modified by signals sent from various sensors to determine final discharge duration. If the engine is cold, the A/C compressor is on, the transmission is in gear (A/T only) or the alternator is charging, the ECM controls current to the Idle Air Control (IAC) valve to maintain correct idle speed. The ECM is programmed with settings for basic ignition timing at various engine speeds and manifold pressures. Ignition timing is also adjusted for coolant temperature. A knock control system retards ignition timing when the knock sensor detects detonation. For a list of PGM-FI inputs and outputs, see Fig 1 . The PGM-FI also features the following:

For component locations, refer to illustrations. See Fig 2 -Fig 6

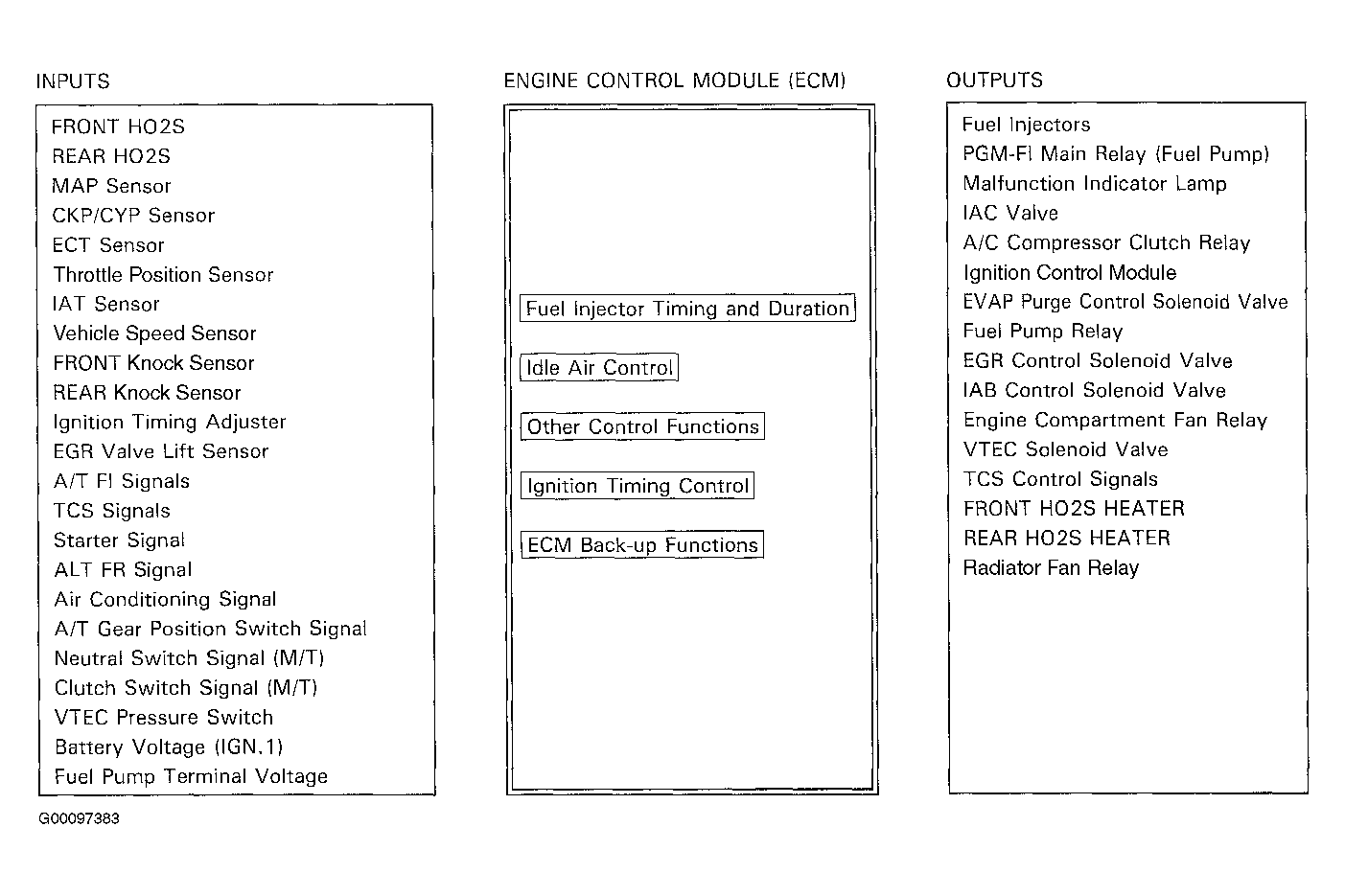

Fig 1: Identifying PGM-FI Inputs & Outputs
G00097383Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Locating PGM-FI Components (1 Of 5)
G00097379Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Locating PGM-FI Components (2 Of 5)
G00097380Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Locating PGM-FI Components (3 Of 5)
G00097381Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 5: Locating PGM-FI Components (4 Of 5)
G00097382Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 6: Locating PGM-FI Components (5 Of 5)
G00097384Courtesy of AMERICAN HONDA MOTOR CO., INC.
