Clutch Switch Signal

This signals the ECM when the clutch is engaged. See Fig 1 and Fig 2 .

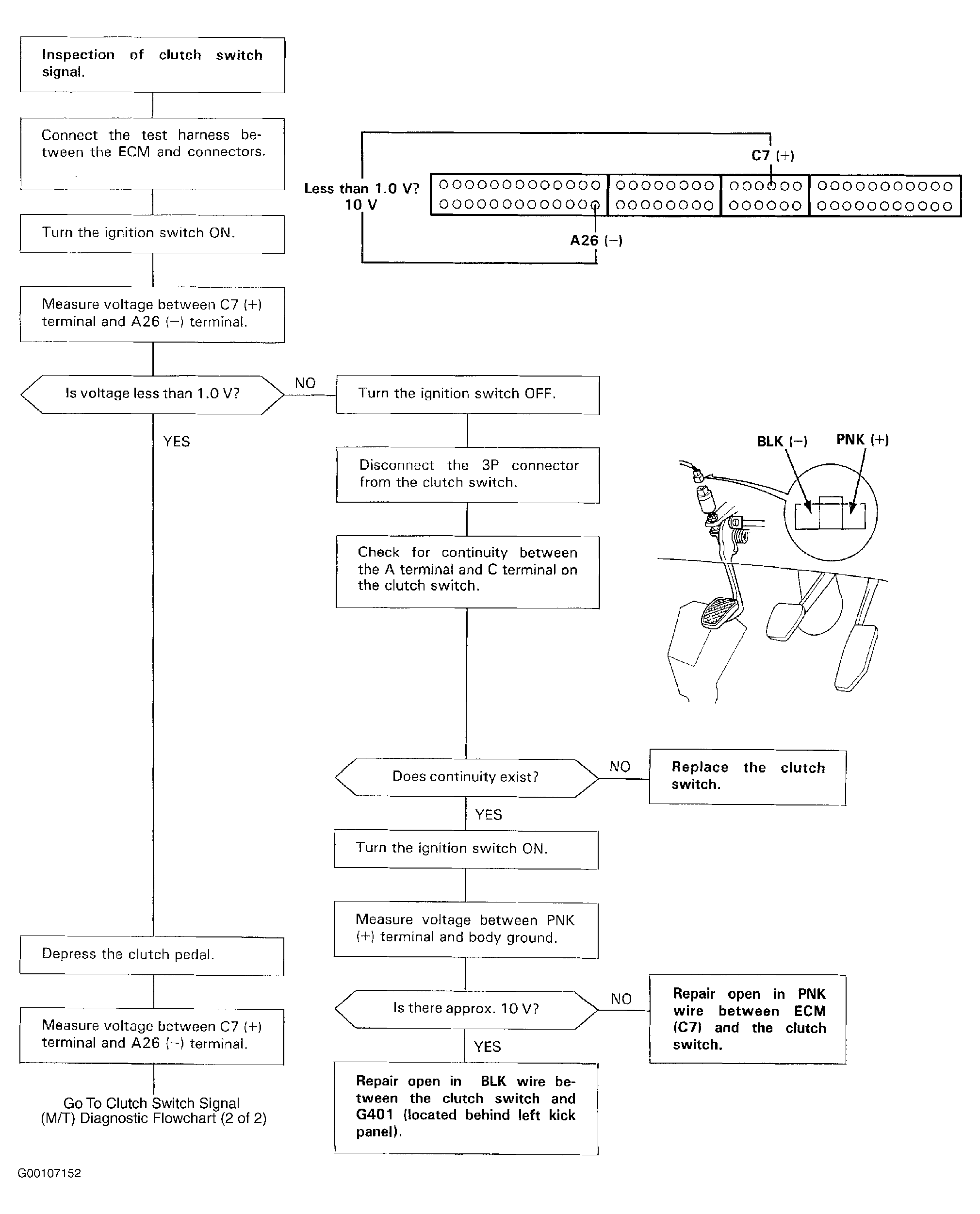

Fig 1: Clutch Switch Signal (M/T) Diagnostic Flowchart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

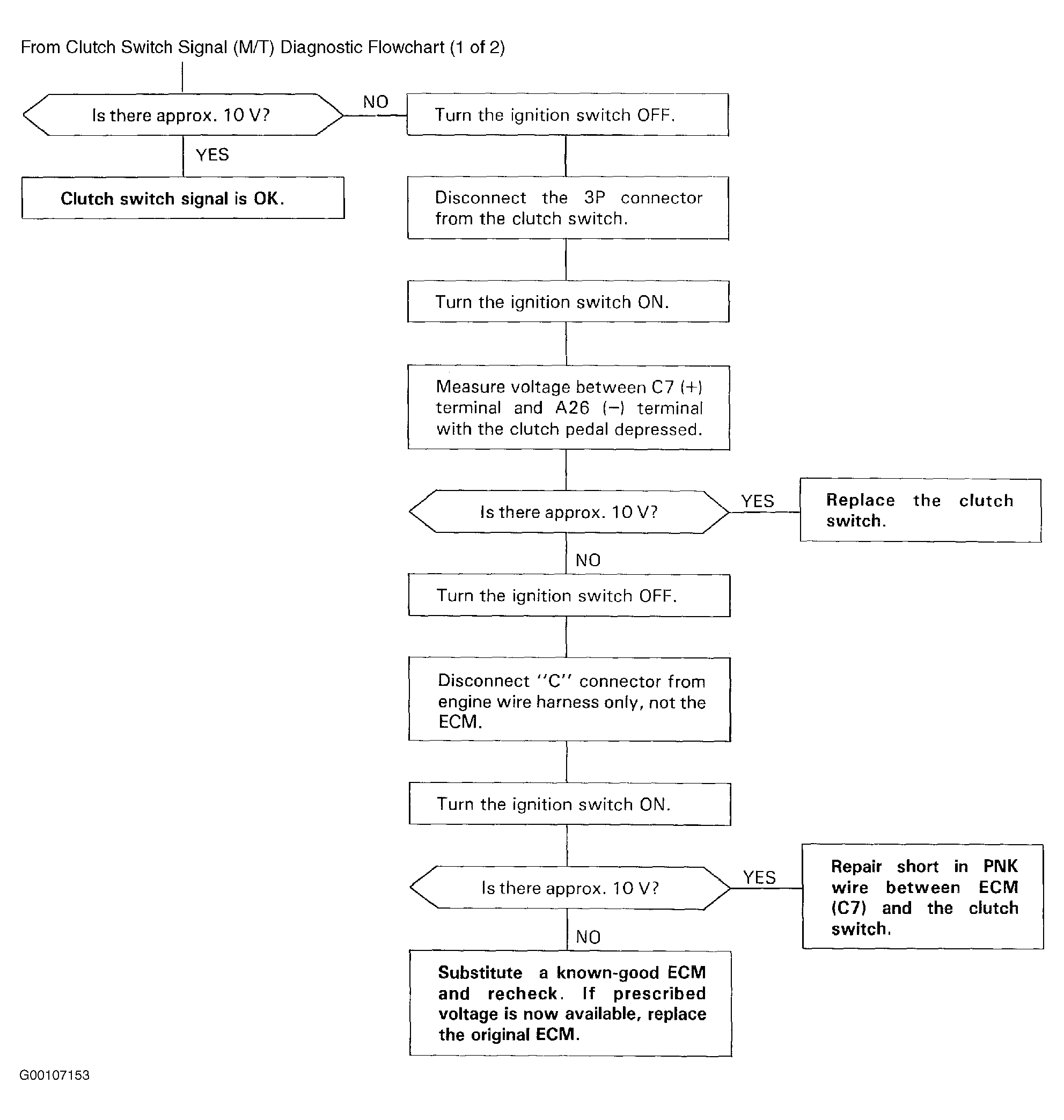

Fig 2: Clutch Switch Signal (M/T) Diagnostic Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
