Abs Control Unit

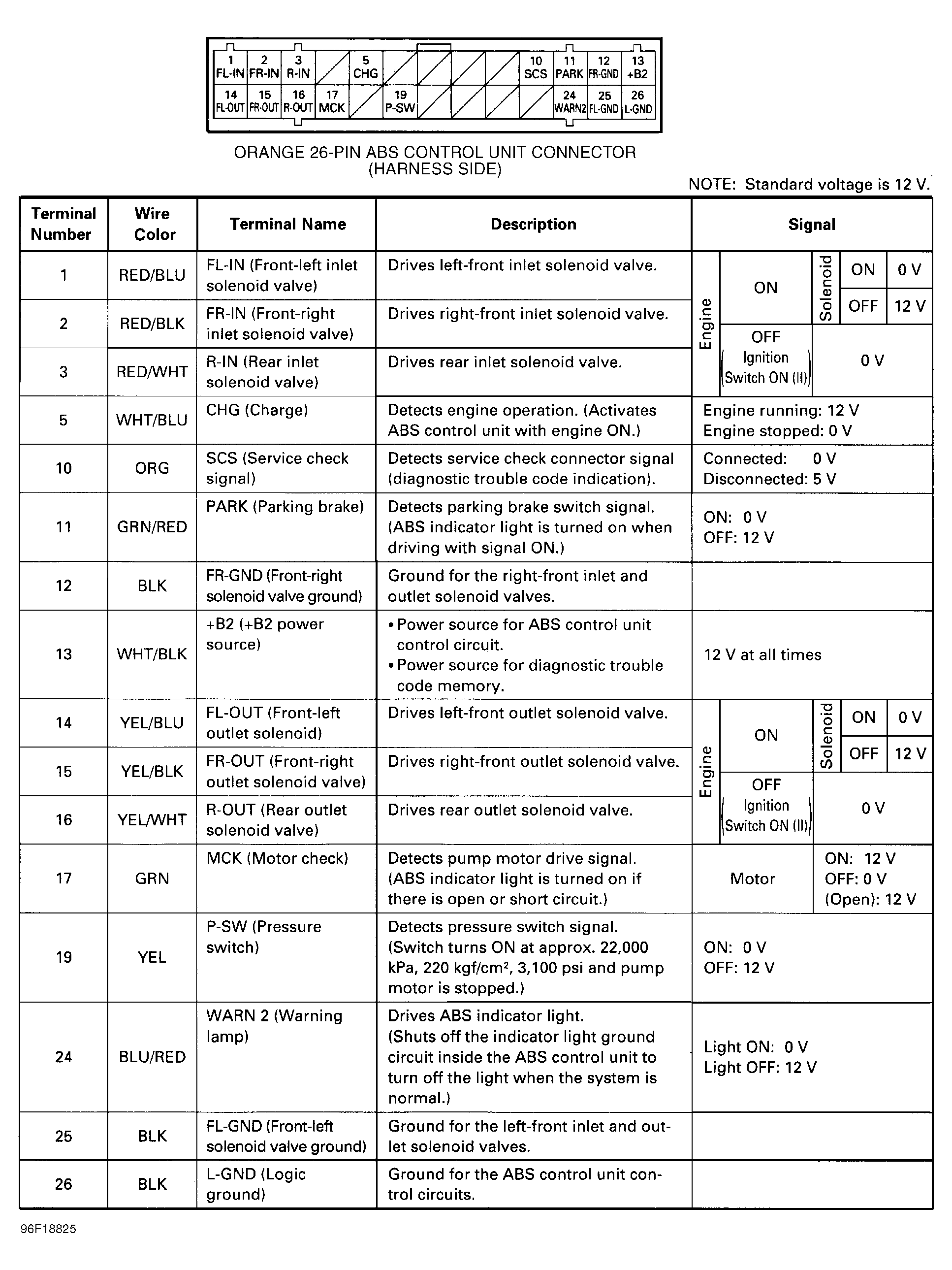

Fig 1: ABS Control Unit Connector Terminal Identification (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: ABS Control Unit Connector Terminal Identification (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
