Component Location

The following test procedures require that wiring be connected and disconnect from various components. These components are identified in the appropriate illustration. See Fig 1 , Fig 2 , and Fig 3 .

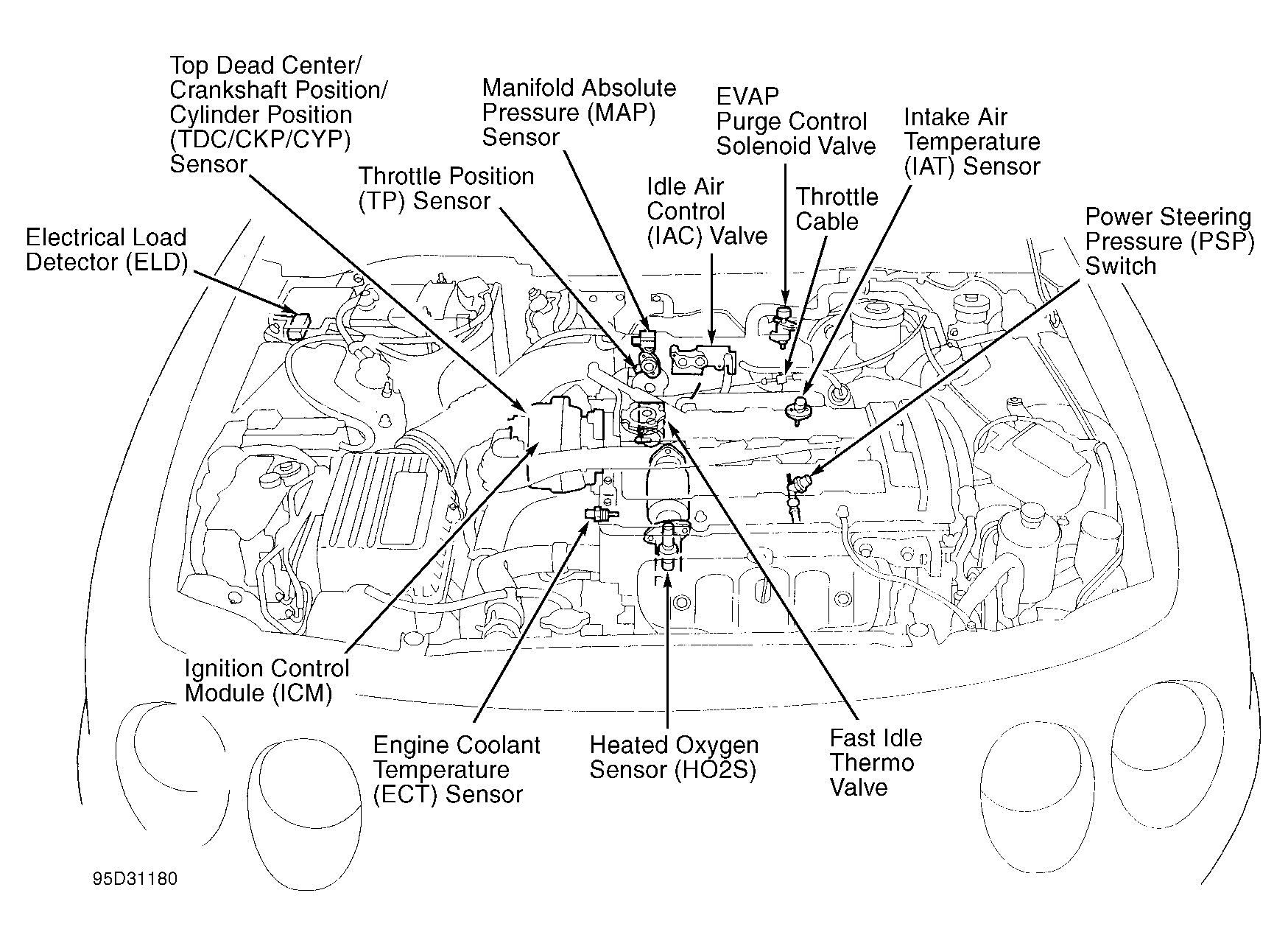

Fig 1: Locating Emission-Related Components (W/ B18B1 Engine)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

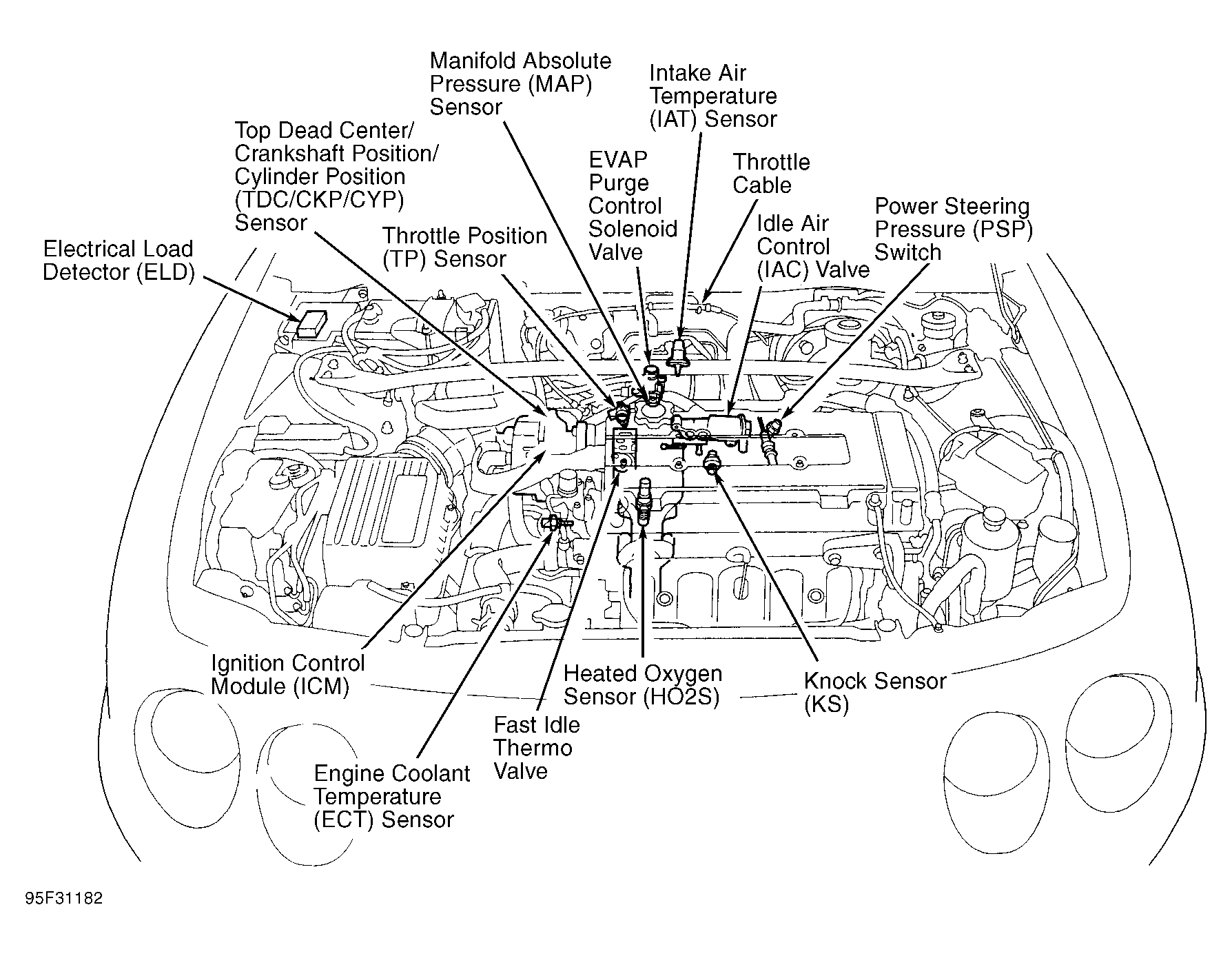

Fig 2: Locating Emission-Related Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Locating Emission-Related Components (W/ B18C1 Engine)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
