Power Seat Memory Sensor Test

Remove driver's seat. See FRONT SEATS  under REMOVAL & INSTALLATION. Disconnect all power seat motors/sensors. See Fig 1 . Connect battery power across motor leads. See Fig 2 . Using an analog ohmmeter, observe resistance across associated sensor terminals. Needle on ohmmeter should move from left to right. If motor does not run, reverse battery terminals. If motor still does not run, replace faulty motor. If ohmmeter needle does not move from left to right, replace faulty sensor. Repeat this procedure for each motor-sensor combination.

Fig 1: Identifying Driver's Power Seat Memory Sensors

Courtesy of AMERICAN HONDA MOTOR CO., INC.

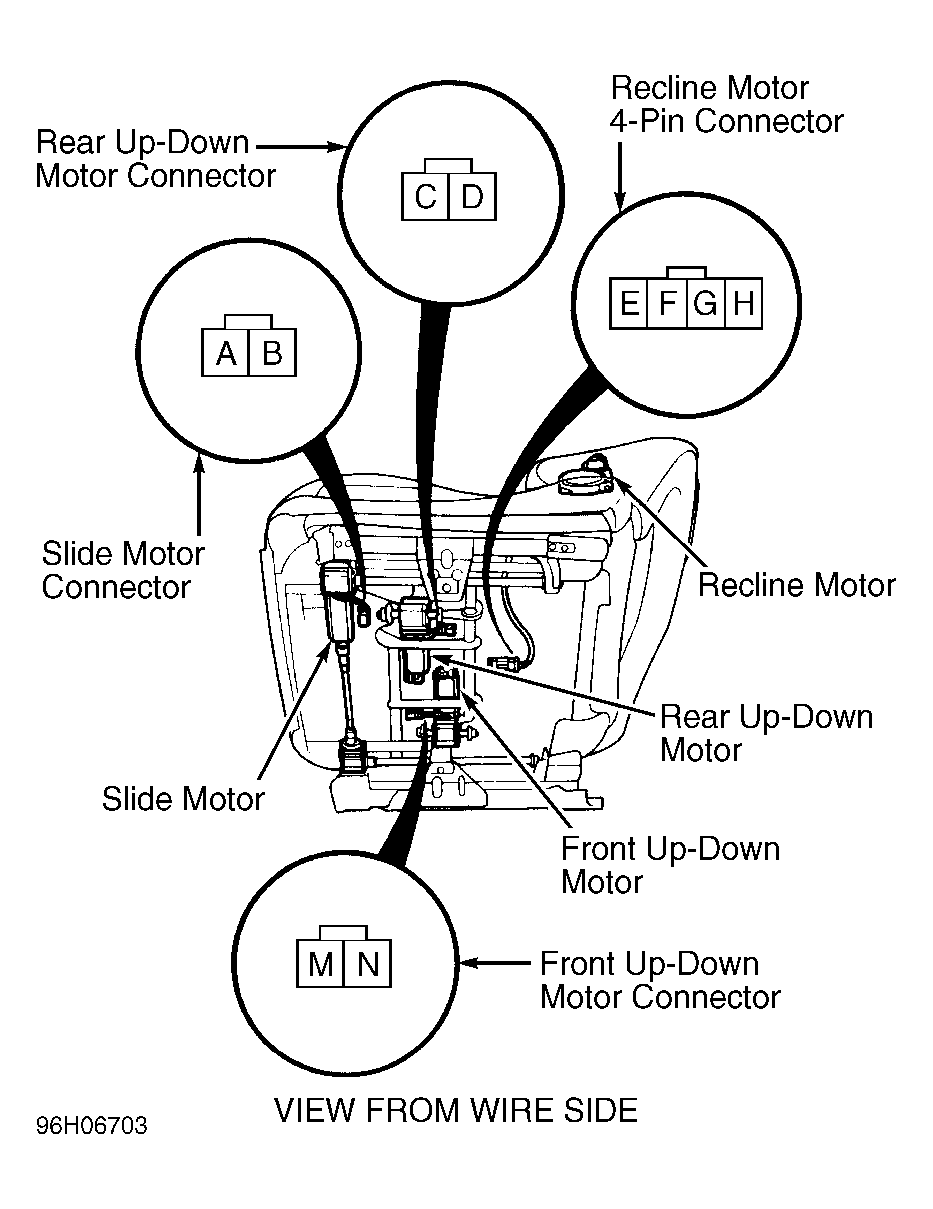

Fig 2: Identifying Driver's Power Seat Motors

Courtesy of AMERICAN HONDA MOTOR CO., INC.
