Seat Motor/Sensor Connector Terminals

Fig 1: Driver's Seat Motors Harness Connectors (Front Up/Down)
G94B47135Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Driver's Seat Motors Harness Connectors (Rear Up/Down)
G94C47136Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Driver's Seat Motors Harness Connectors (Extend/Retract, Tilt)
G94D47129Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Driver's Seat Motors Harness Connectors (Slide)
G94G47130Courtesy of AMERICAN HONDA MOTOR CO., INC.

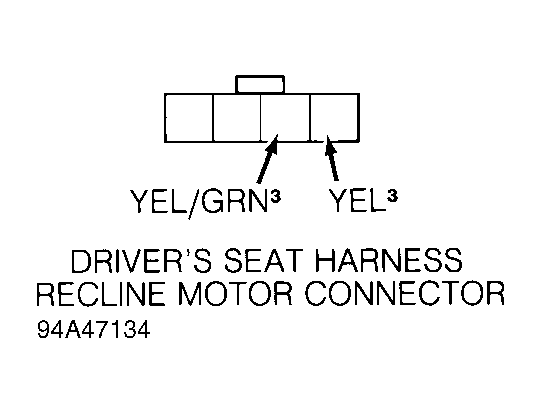

Fig 5: Driver's Seat Motors Harness Connectors (Recline)
G94A47134Courtesy of AMERICAN HONDA MOTOR CO., INC.

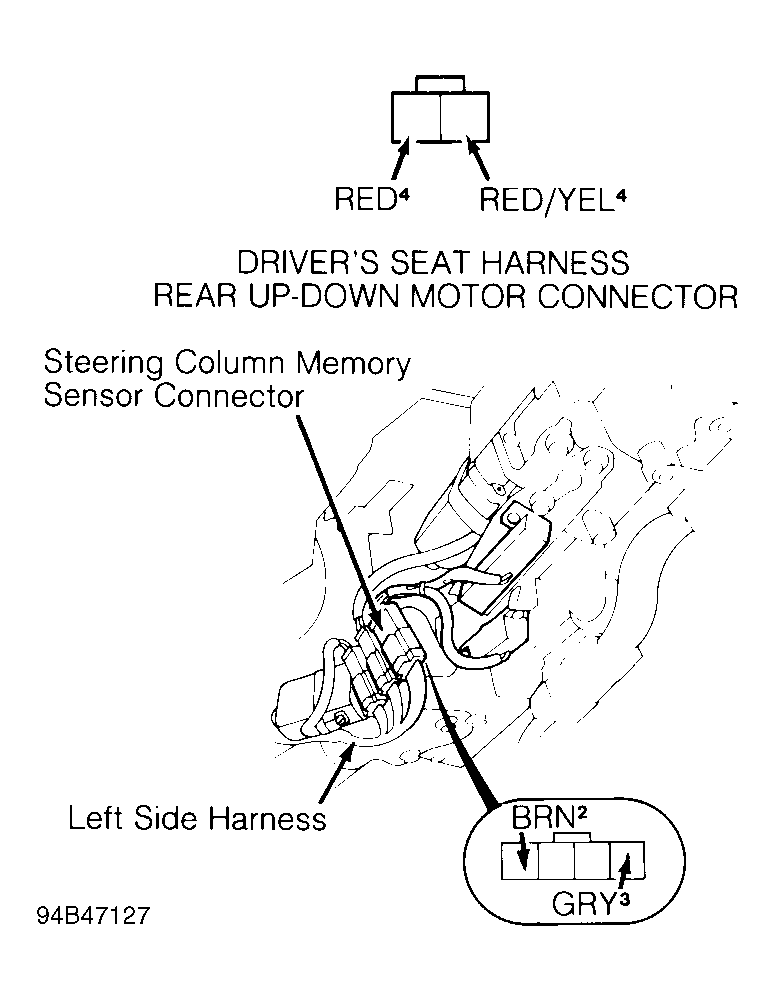

Fig 6: DPMS Connector On Driver's Door Wire Harness
G94B47127Courtesy of AMERICAN HONDA MOTOR CO., INC.

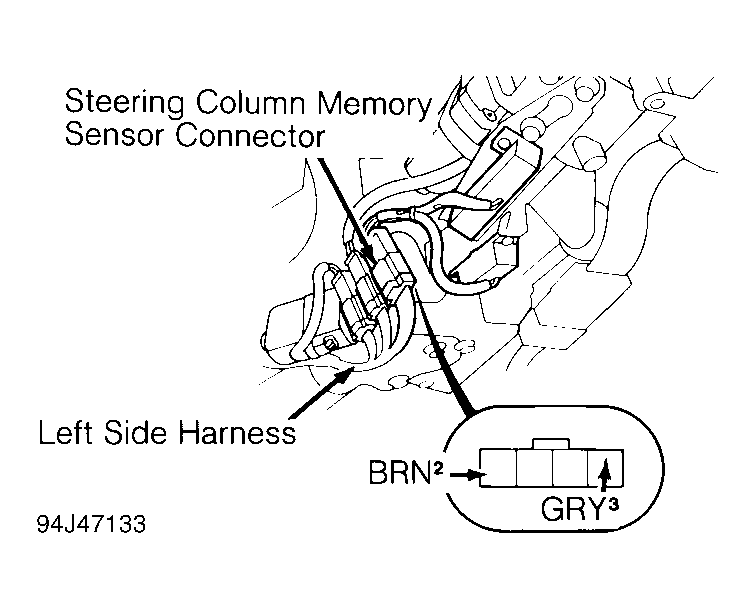

Fig 7: Steering Column Memory Sensor Connector
G94J47133Courtesy of AMERICAN HONDA MOTOR CO., INC.
