Starter Switch Signal

This signals the ECM when the engine is cranking. For troubleshooting of the starter switch signal circuit, see Fig 1 .

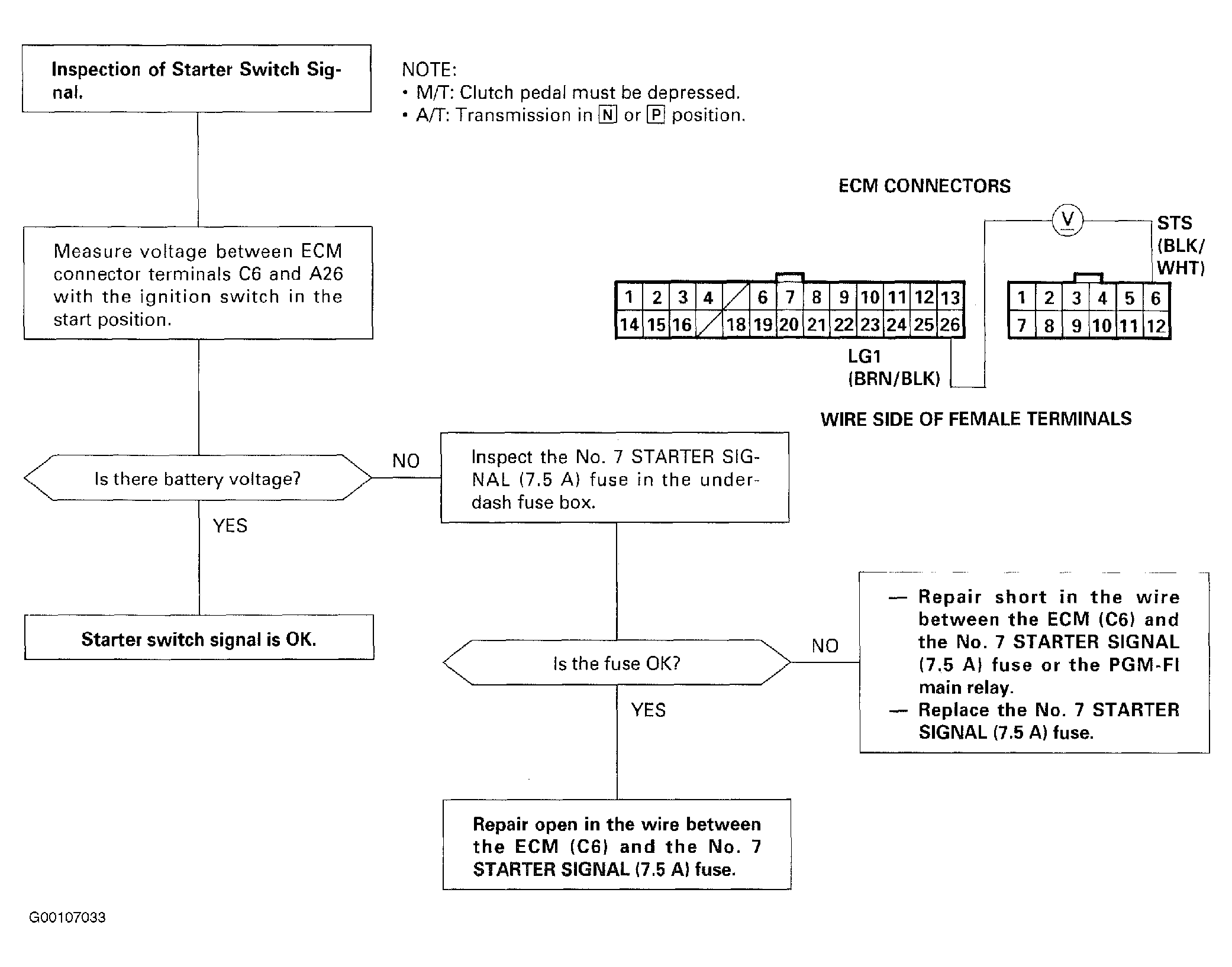

Fig 1: Starter Switch Signal Diagnostic Flow Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
