DTC 2-1: Steering Angle Sensor

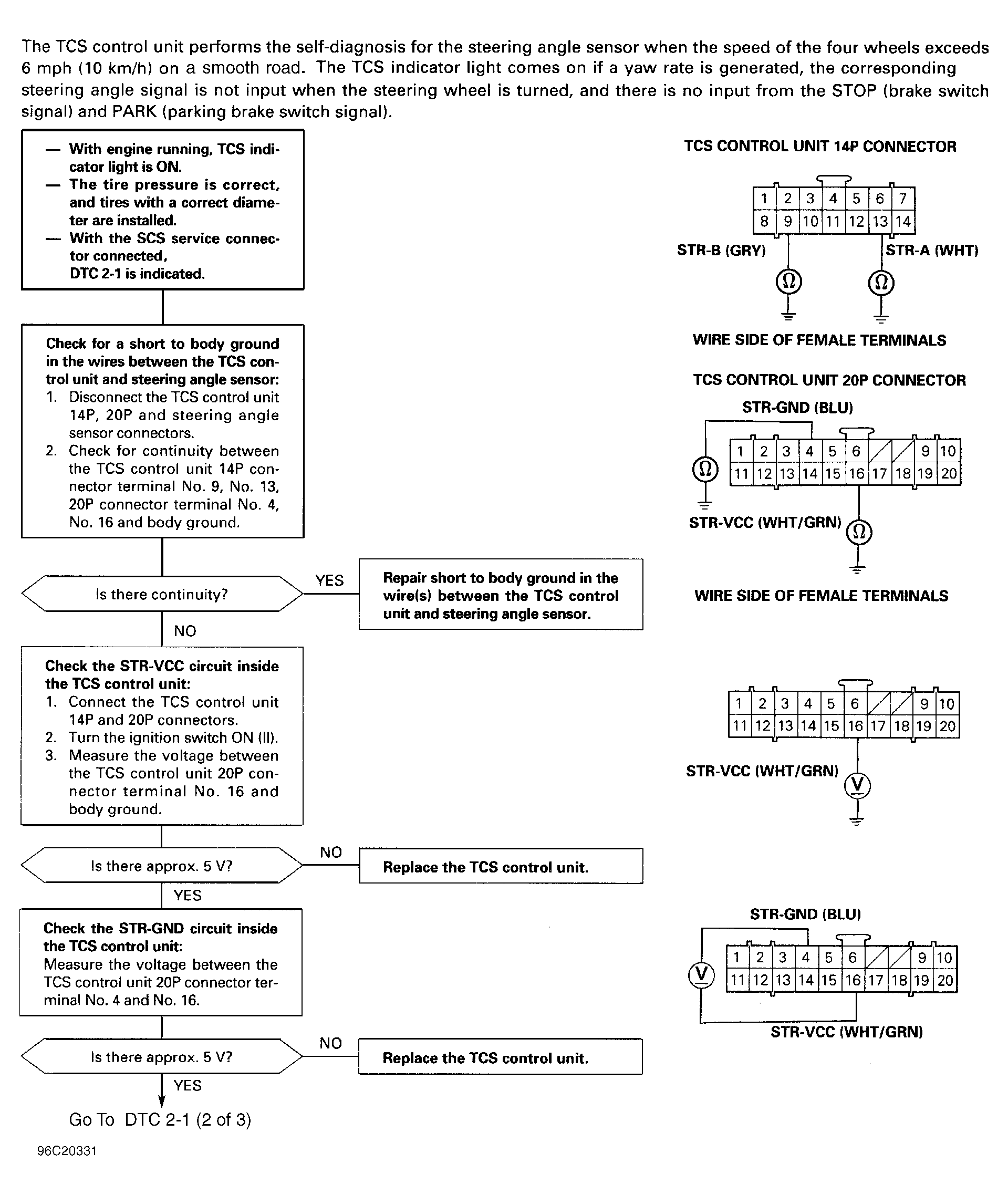

Fig 1: DTC 2-1: Steering Angle Sensor (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

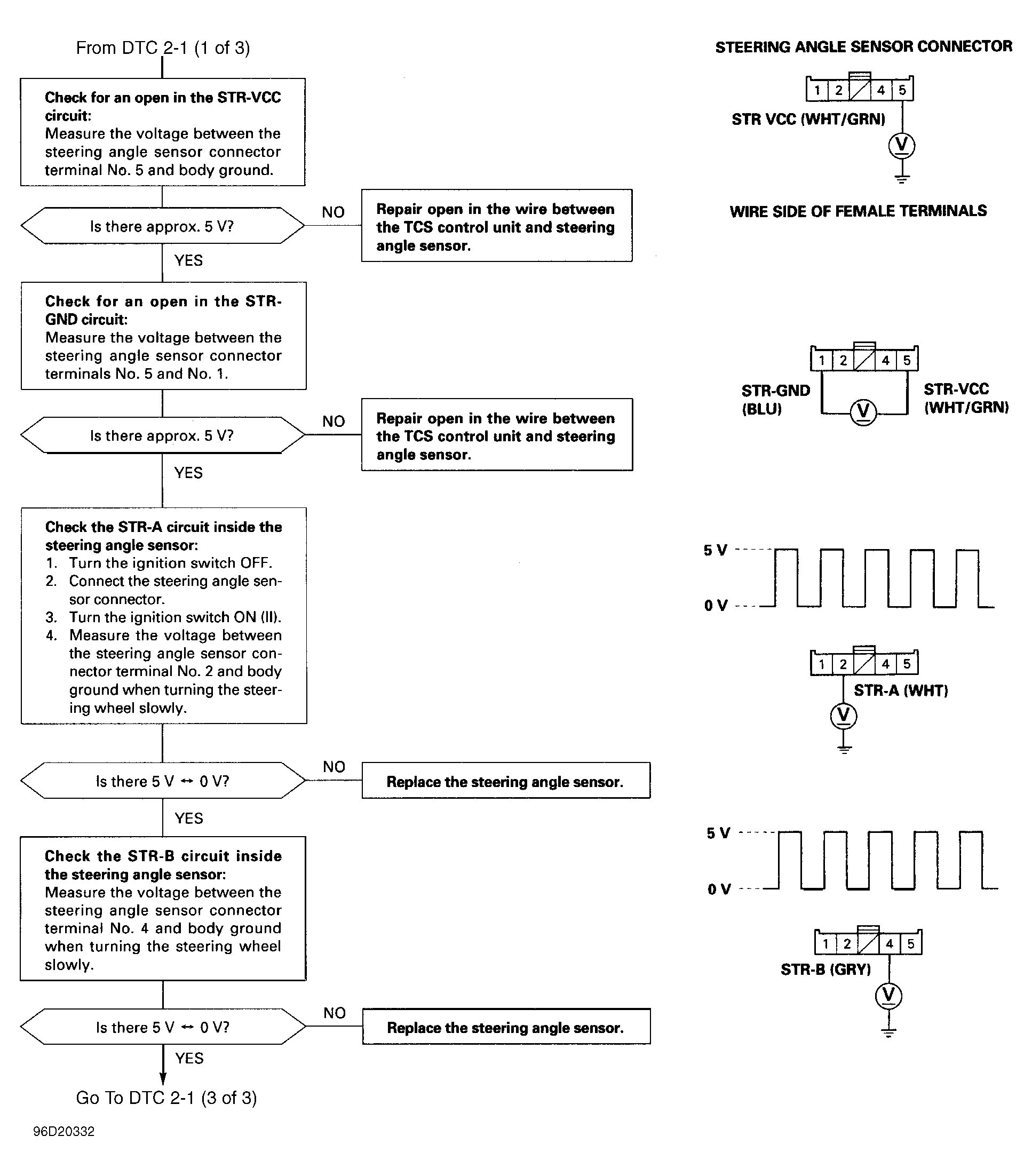

Fig 2: DTC 2-1: Steering Angle Sensor (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

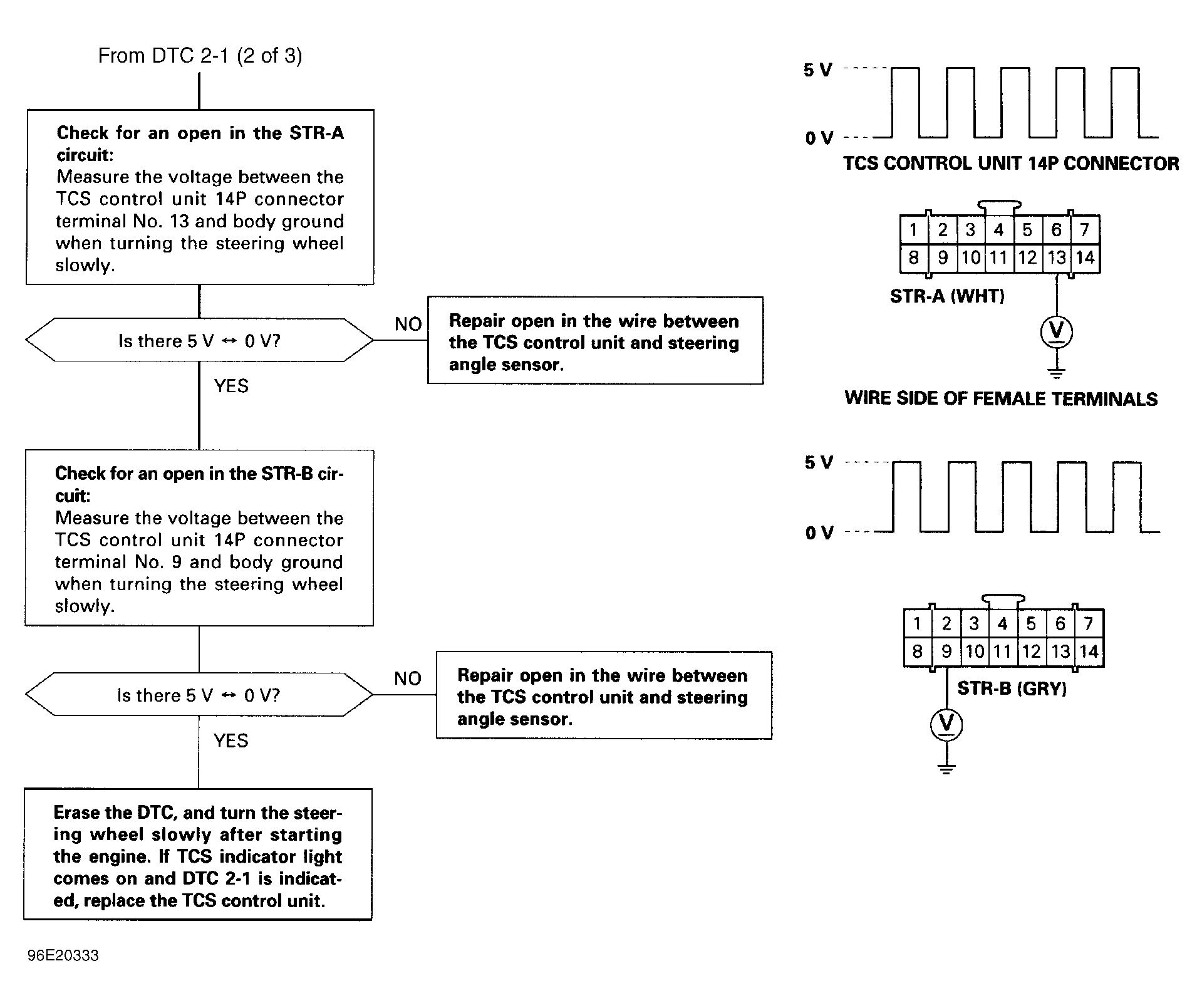

Fig 3: DTC 2-1: Steering Angle Sensor (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
