Multiplex Power Window Control Unit Tests

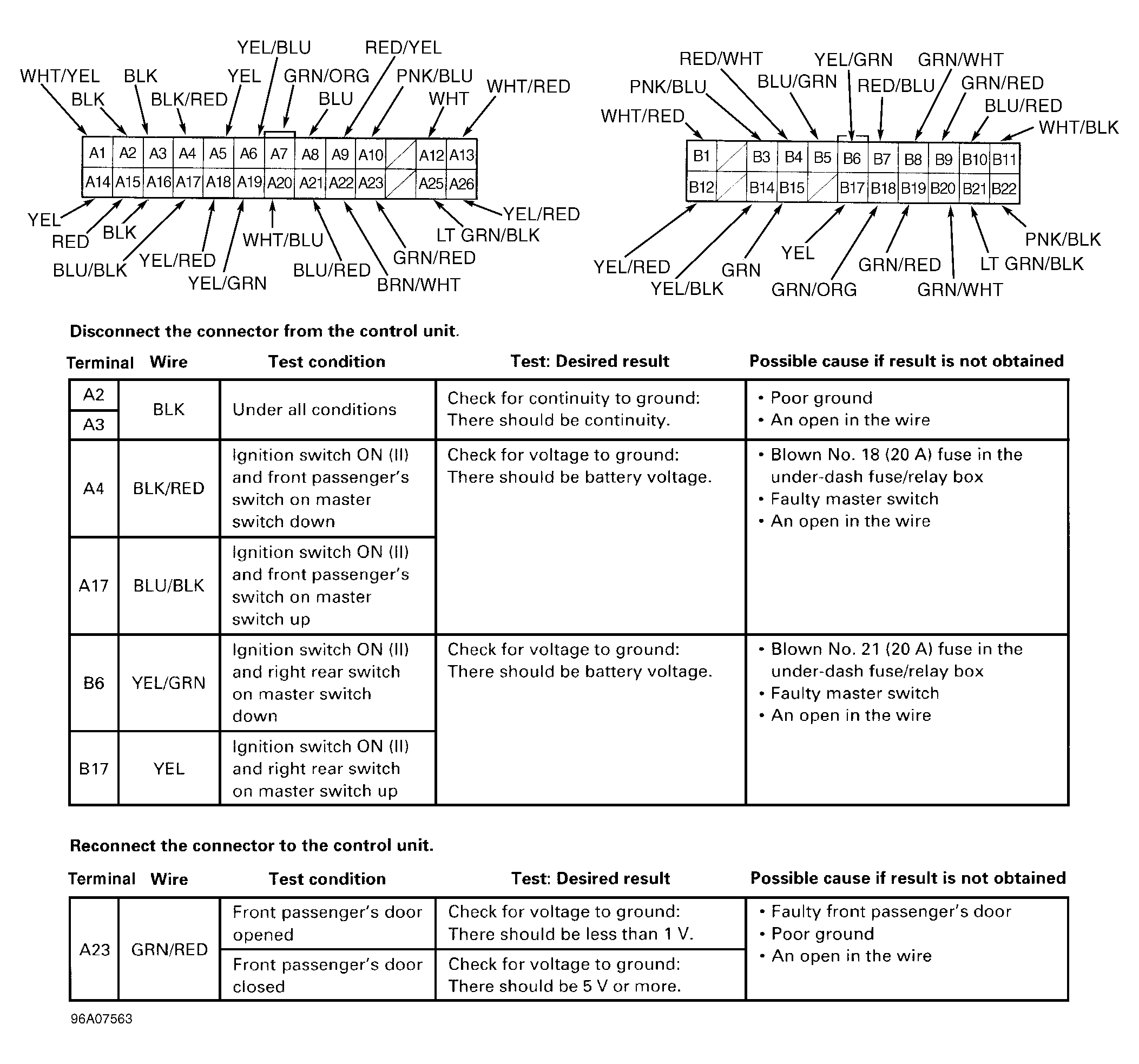

Fig 1: Driver's Multiplex Power Window Control Unit Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Door Multiplex Power Window Control Unit Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Passenger's Multiplex Power Window Control Unit Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
