Steering Angle System

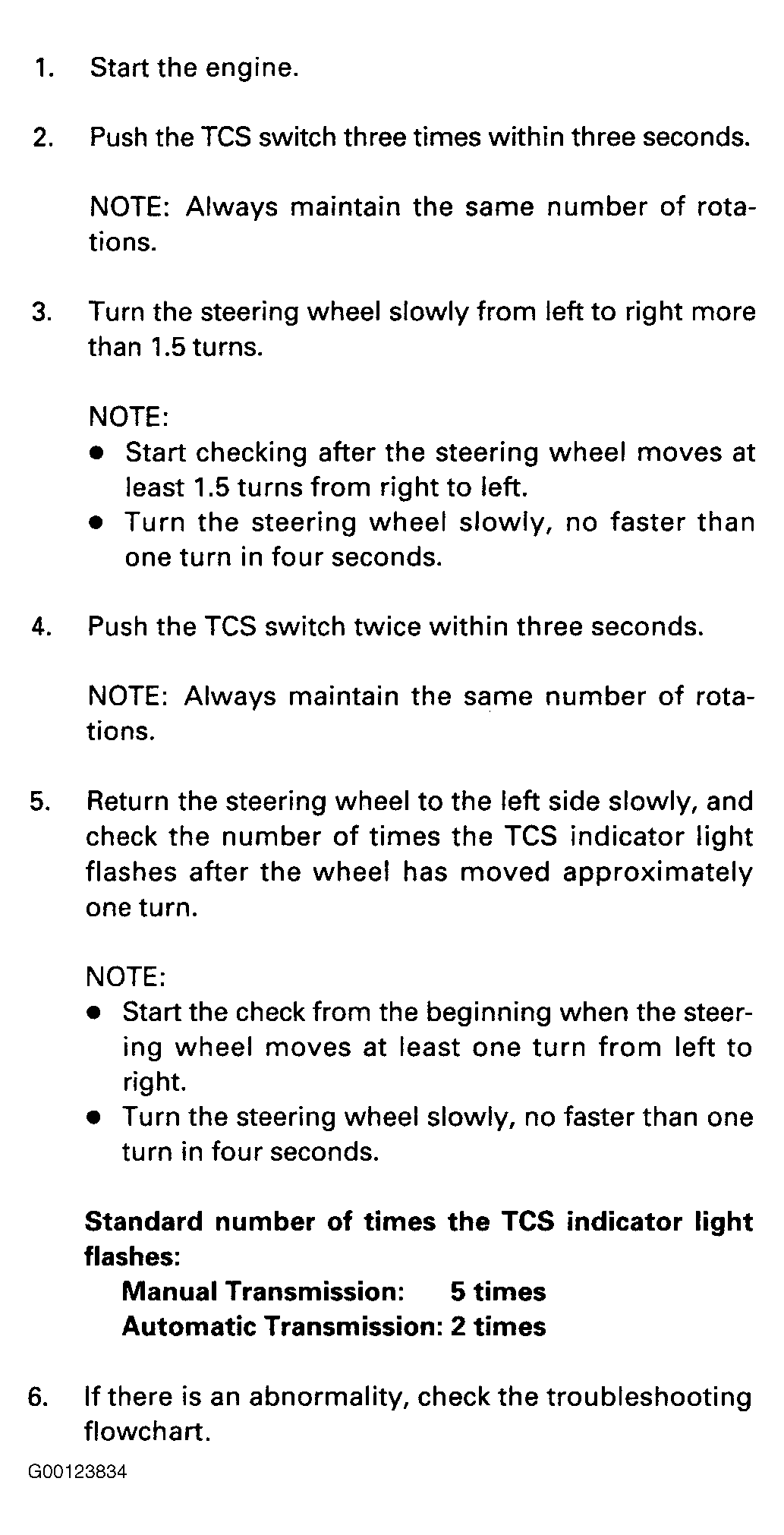

Fig 1: Steering Angle Sensor System Check
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
