Power Mirror Switch Test

Turn ignition off. Remove control switch from vehicle. Using an ohmmeter, check continuity between specified terminals while operating switch in each position. See Fig 1 . If control switch does not test as described, replace switch.

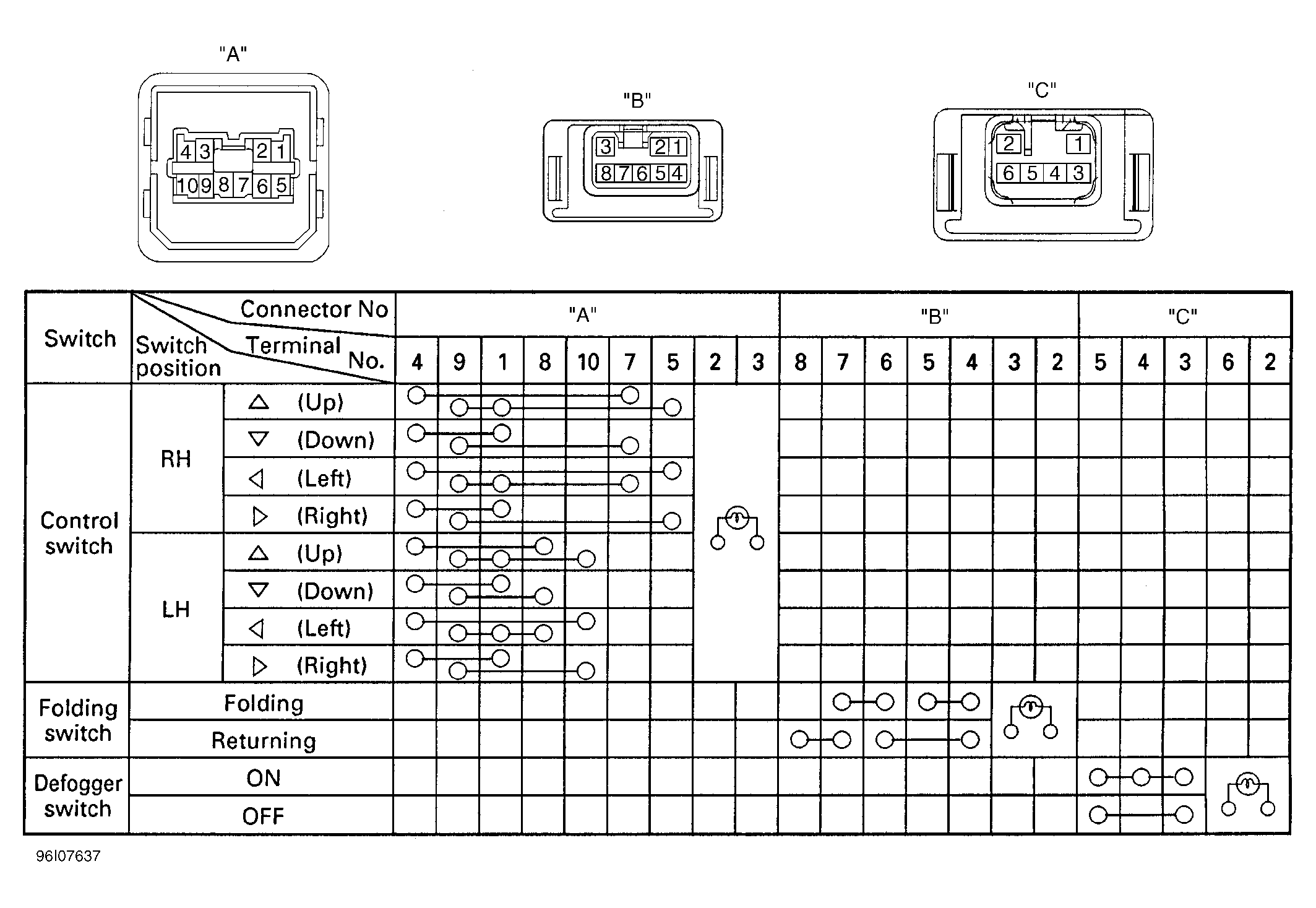

Fig 1: Testing Power Mirror Switch
G96I07637Courtesy of ISUZU MOTOR CO.
