Retrieving DTCS Using Abs Warning Light

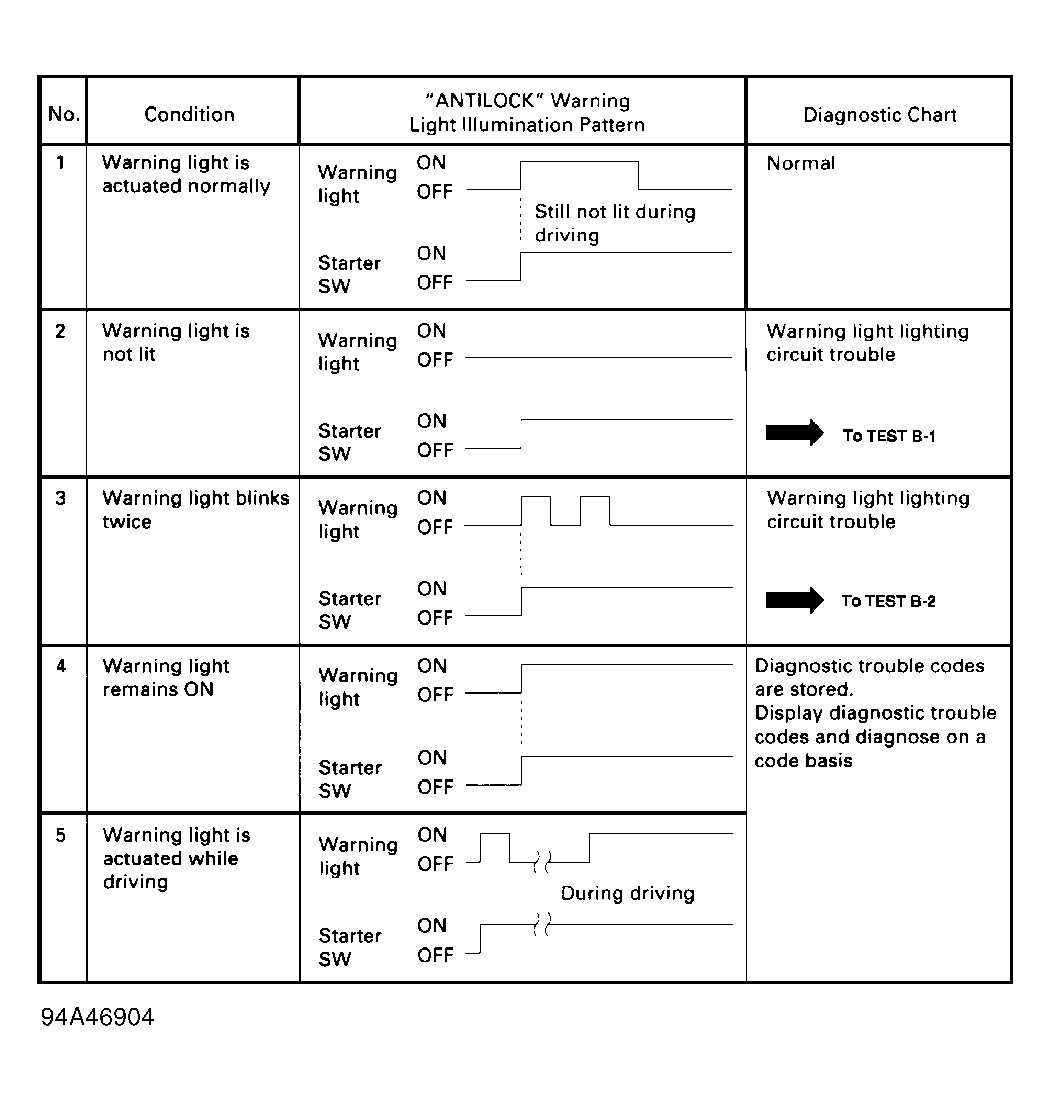

- When ABS warning light remains on, EBCM will store DTCs and disable ABS system. If DTCs are not displayed, wiring harness from EBCM to ABS warning light may be disconnected. Check and repair harness if necessary.
- Ensure ignition is off and brake pedal is released. Using a jumper wire, jumper specified Data Link Connector (DLC) terminals. See DLC SELF-DIAGNOSTIC TERMINALS table. See Fig 1 or Figure . Turn ignition on. DTC will be displayed by flashing ABS warning light.
- A stored DTC will be displayed 3 times, each being separated by a 3.2 second pause. If multiple DTCs are set, second DTC will follow after first DTC is displayed a third time. All DTCs contain 2 digits. First digit of DTC is identified by a series of 0.4 second flashes. After a 1.2 second pause, second digit of DTC will follow in another series of 0.4 second flashes. If no DTCs have been stored, ABS warning light will repeat DTC 12 (system normal).
- Once DTCs are retrieved, proceed to DTC IDENTIFICATION table. Identify DTC and perform test procedure specified. See SELF-DIAGNOSTIC TESTS . After repairs, DTCs must be cleared. See CLEARING DIAGNOSTIC TROUBLE CODES .
DLC SELF-DIAGNOSTIC TERMINALS
| Application | Terminals No. |
|---|---|
| SLX | 4 & 12 |
DTC IDENTIFICATION
| DTC & Component | Possible Malfunction | Go To TEST |
|---|---|---|
| DTC 12 (Start Code) | Normal Display | N/A |
| DTC 14 (EBCM Function) | Abnormality In Input/Output, Operational & Control Circuits | B-3 |
| DTC 15 (Power Voltage Drop) | Power Circuit | B-4 |
| DTC 21 ("G" Sensor) | Disconnected Wire | B-5 |
| DTC 22 (Brakelight Switch) | Disconnected Wire | B-6 |
| DTC 23 (Transmission Input) | Input Abnormality | B-7 |
| DTC 32 (Hydraulic Motor & Motor Relay) | Shorted Or Disconnected Coil | B-8 |
| DTC 41 (Left Front Solenoid Valve) | Shorted Or Disconnected Coil/Wiring | B-9 |
| DTC 42 (Right Front Solenoid Valve) | Shorted Or Disconnected Coil/Wiring | B-9 |
| DTC 44 (Rear Solenoid Valve) | Shorted Or Disconnected Coil/Wiring | B-9 |
| DTC 45 (Solenoid Valve Relay) | Shorted Or Disconnected Coil/Wiring | B-10 |
| DTC 51 (Left Front Speed Sensor) | Disconnected Coil/Wiring | B-11 |
| DTC 52 (Right Front Speed Sensor) | Disconnected Coil/Wiring | B-11 |
| DTC 53 (Left Rear Speed Sensor) | Disconnected Coil/Wiring | B-11 |
| DTC 54 (Right Rear Speed Sensor) | Disconnected Coil/Wiring | B-11 |
| DTC 61 (Left Front Speed Sensor) | Shorted Coil/Wiring | B-12 |
| DTC 62 (Right Front Speed Sensor) | Shorted Coil/Wiring | B-12 |
| DTC 63 (Left Rear Speed Sensor) | Shorted Coil/Wiring | B-12 |
| DTC 64 (Right Rear Speed Sensor) | Shorted Coil/Wiring | B-12 |
| DTC 65 (Sensor Signal Input) | Incorrect Number Of Teeth | B-13 |
