Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

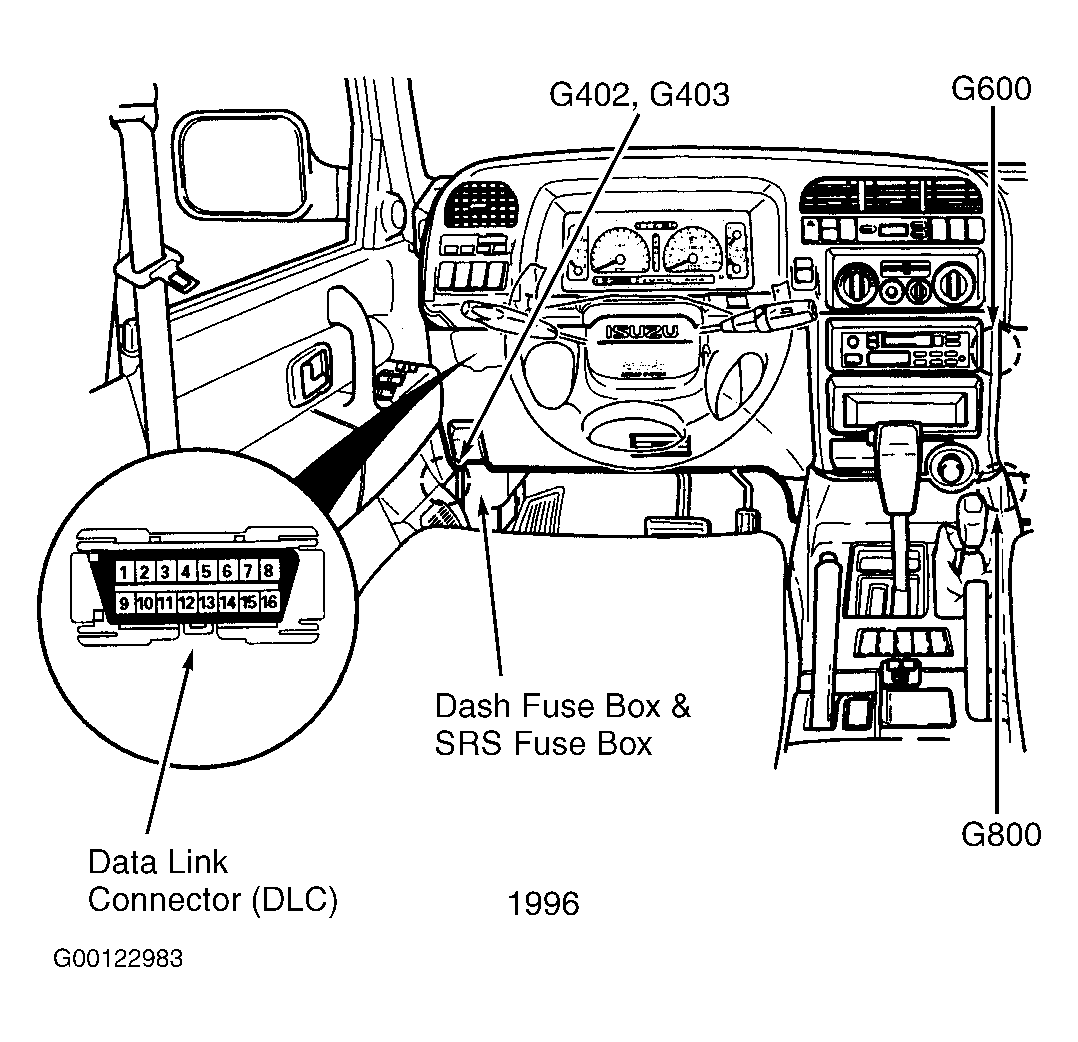

| Dash Fuse Box | Behind left kick panel. See Figure . |
| Diode Box No. 1 | Behind left Kick panel, on dash fuse box. |
| Diode Box No. 2 | Behind left Kick panel, on dash fuse box. |
| Diode Box No. 3 | Behind left Kick panel, on dash fuse box. |
| Diode Box No. 6 | Behind left Kick panel, on dash fuse box. |
| Diode Box B | Right side of engine compartment, in fuse/relay box. |
| Fuse/Relay Box | Right side of engine compartment. See Figure . |
| SRS Fuse Box | Left kick panel, top of dash fuse box. See Figure . |
