Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
A/C Diode Behind left kick panel, taped to harness.
Auxiliary Fuse Holder No. 1 Behind left kick panel, on right side of underdash fuse/relay box. See Figure .
Auxiliary Fuse Holder No. 2 Behind left kick panel, on right side of underdash fuse/relay box. See Figure .
Ignition Coil Fuse Holder Behind dash, left of steering column, on bracket. See Figure .
In-Line Diode A Above left kick panel, taped to harness.
In-Line Diode B Above right kick panel, taped to harness.
In-Line Diode C Above right kick panel, taped to harness.
In-Line Diode D Above right kick panel, taped to harness.
In-Line Diode E Above right kick panel, taped to harness.
In-Line Diode F Above right kick panel, taped to harness.
In-Line Diode G Above right kick panel, taped to harness.
Underdash Fuse/Relay Box Behind left kick panel. See Figure .

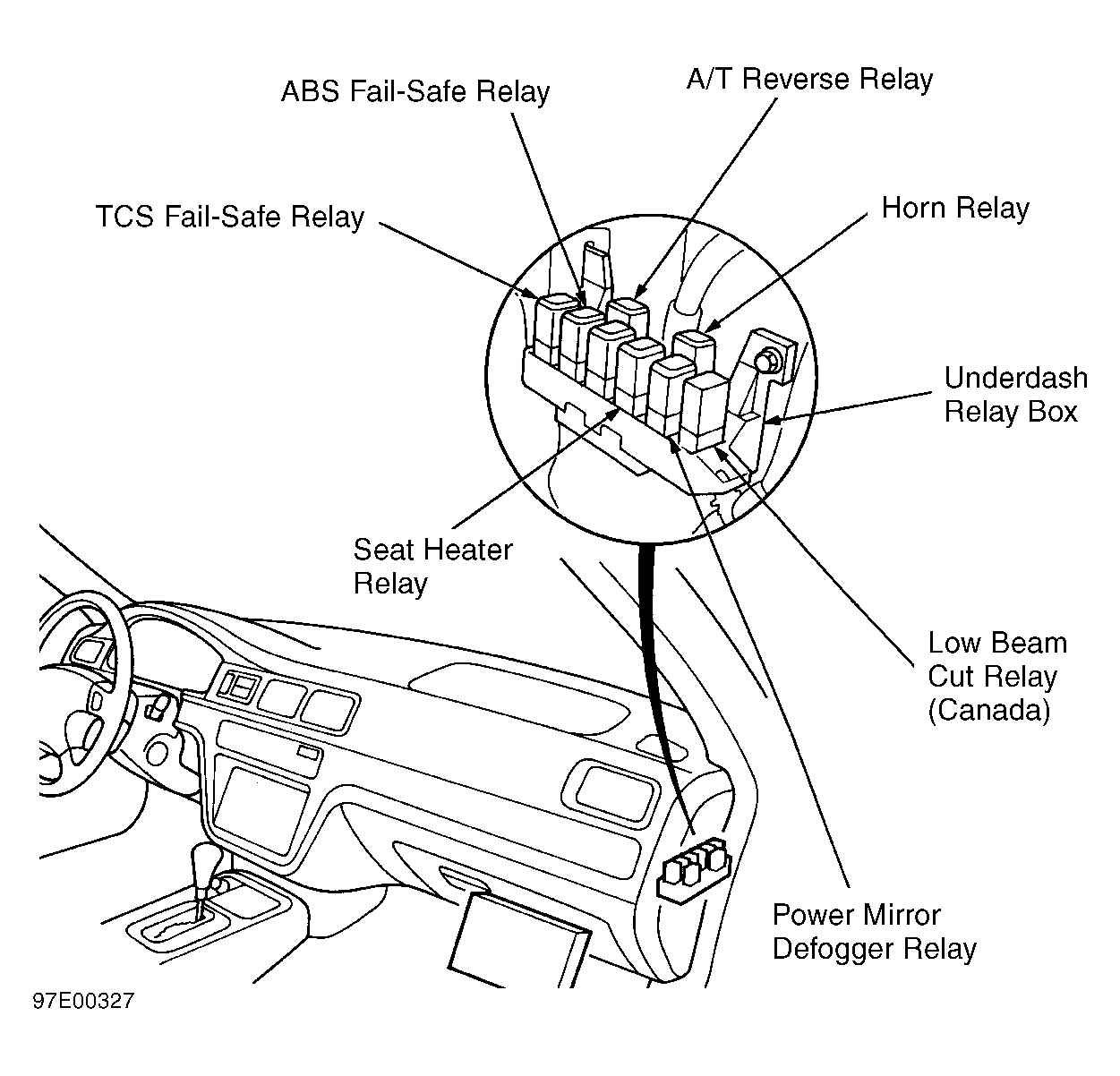

Underdash Relay Box Above right kick panel. See Figure .
Underhood Fuse/Relay Box On left side of engine compartment. See Figure .
