Driver's Power Seat Motor Test (2.3CL)

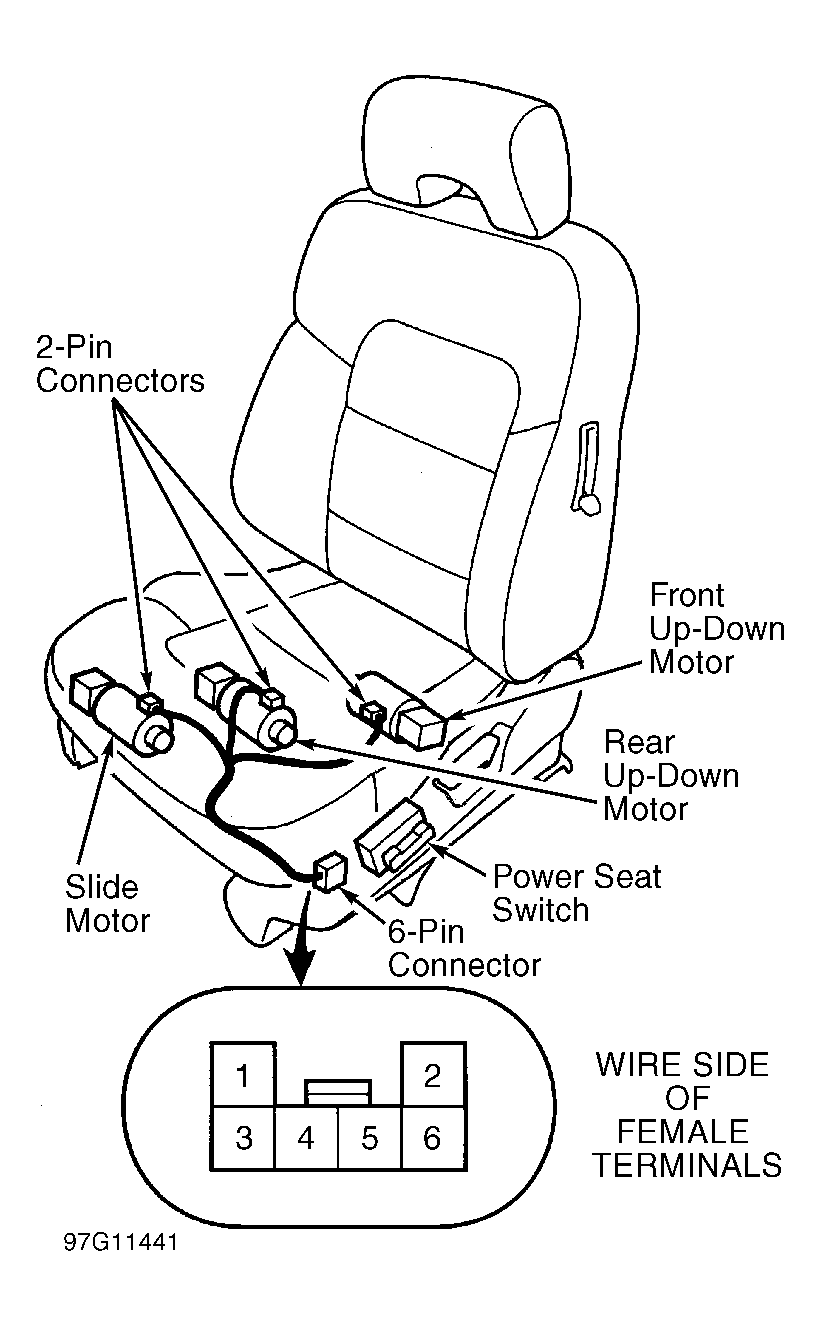

Remove driver's seat. See FRONT SEATS under REMOVAL & INSTALLATION. Disconnect each power seat motor. See Fig 1 . Apply battery voltage to each motor as specified in DRIVER'S POWER SEAT MOTOR TEST (2.3CL) table. If any motor fails any portion of test, replace faulty motor.
DRIVER'S POWER SEAT MOTOR TEST (2.3CL)
| Application & Seat Movement | Connect Battery To Specified Terminals (+) & (-) | |
|---|---|---|
| Slide Motor | ||
| Forward | 1 & 5 | |
| Backward | 5 & 1 | |
| Front Up-Down Motor | ||
| Up | 3 & 4 | |
| Down | 4 & 3 | |
| Rear Up-Down Motor | ||
| Up | 2 & 6 | |
| Down | 6 & 2 | |
