Control Unit Input Test (3.2TL)

Remove glove box. Disconnect power door lock control unit Gray 18-pin connector. See Fig 1 . Check connector for open, loose or disconnected terminals. If terminals are bent, loose or corroded, repair as necessary and recheck system. See WIRING DIAGRAMS  . If control unit input tests are okay, replace power door lock control unit and recheck system. See Fig 1 and Fig 2 .

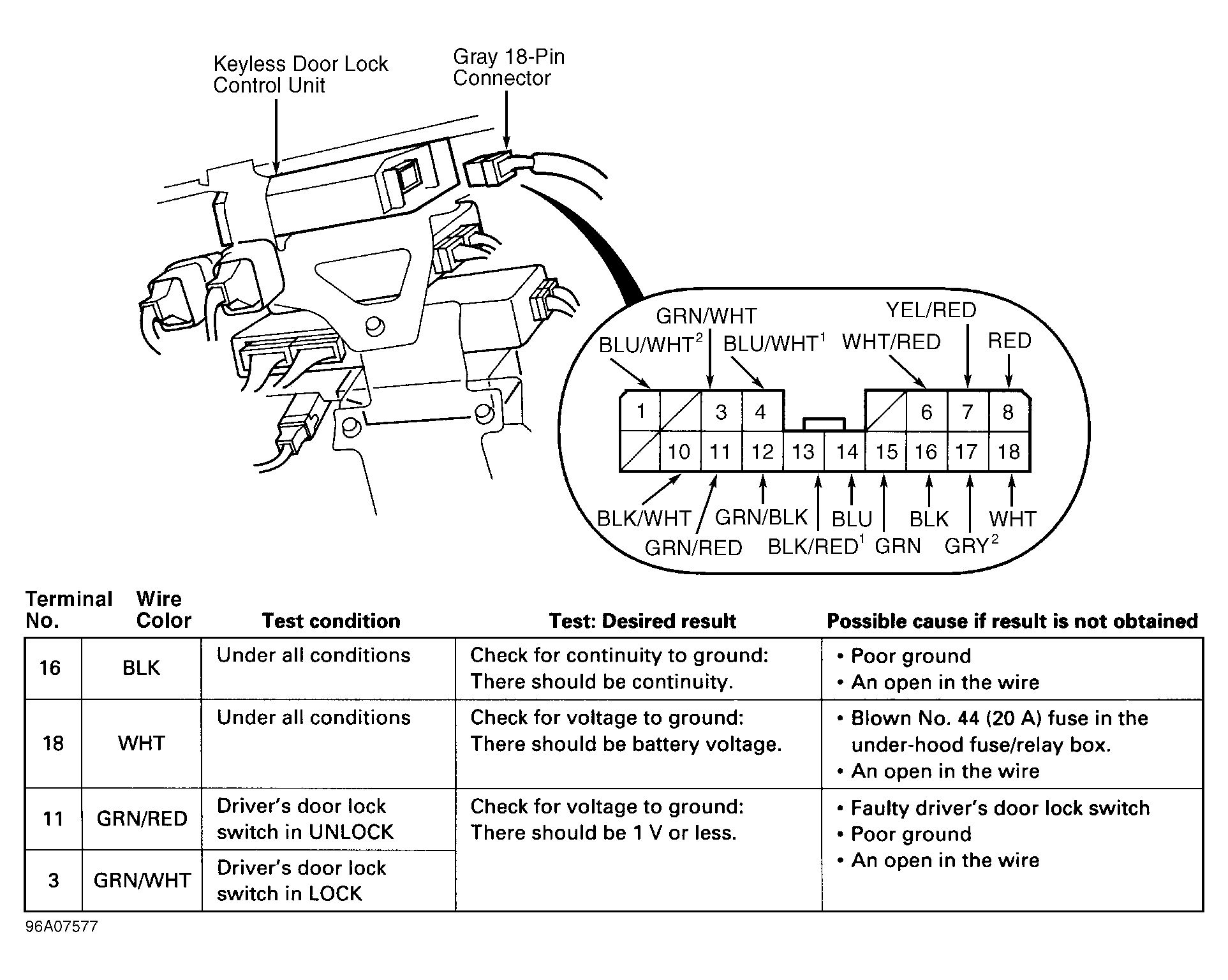

Fig 1: Power Door Lock Control Unit Input Tests (3.2TL - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

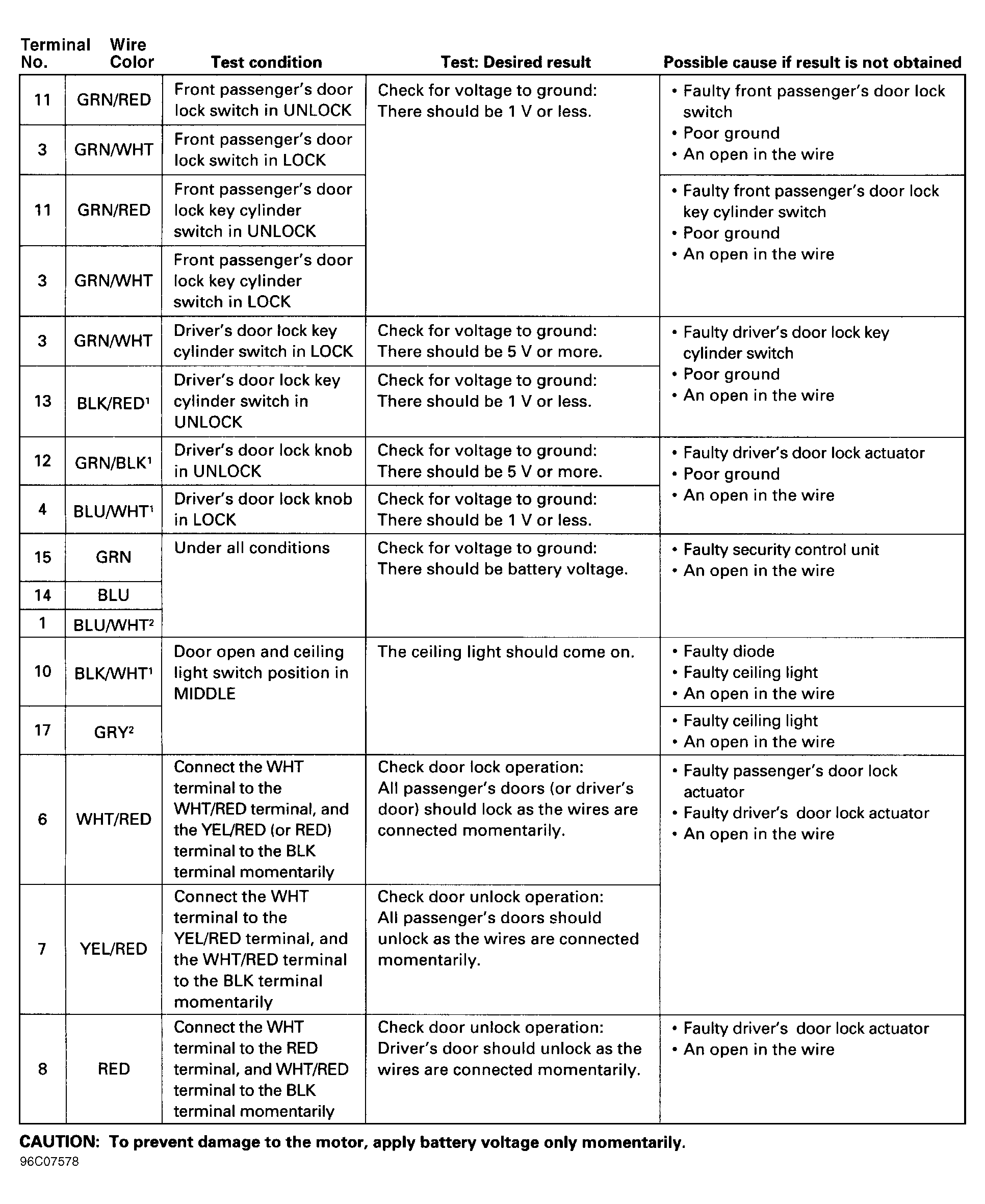

Fig 2: Power Door Lock Control Unit Input Tests (3.2TL - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
