Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/C Diode | Behind left kick panel, taped to harness. |
| Auxiliary Fuse Holder No. 1 | Behind left kick panel, on right side of underdash fuse/relay box. See Figure . |
| Auxiliary Fuse Holder No. 2 | Behind left kick panel, on right side of underdash fuse/relay box. See Figure . |
| Ignition Coil Fuse Holder | Behind dash, left of steering column, on bracket. See Figure . |
| In-Line Diode "A" (Interior Lights) | Above left kick panel, taped to harness. |
| In-Line Diode "B" (Interior Lights) | Above right kick panel, taped to harness. |
| In-Line Diode "C" (Interior Lights) | Above right kick panel, taped to harness. |
| In-Line Diode "D" (Power Door Locks) | Above right kick panel, taped to harness. |
| In-Line Diode "E" (Power Door Locks) | Above right kick panel, taped to harness. |
| In-Line Diode "F" (Power Door Locks) | Above right kick panel, taped to harness. |
| In-Line Diode "G" (Power Door Locks) | Above right kick panel, taped to harness. |
| Underdash Fuse/Relay Box | Behind left kick panel. See Figure . |

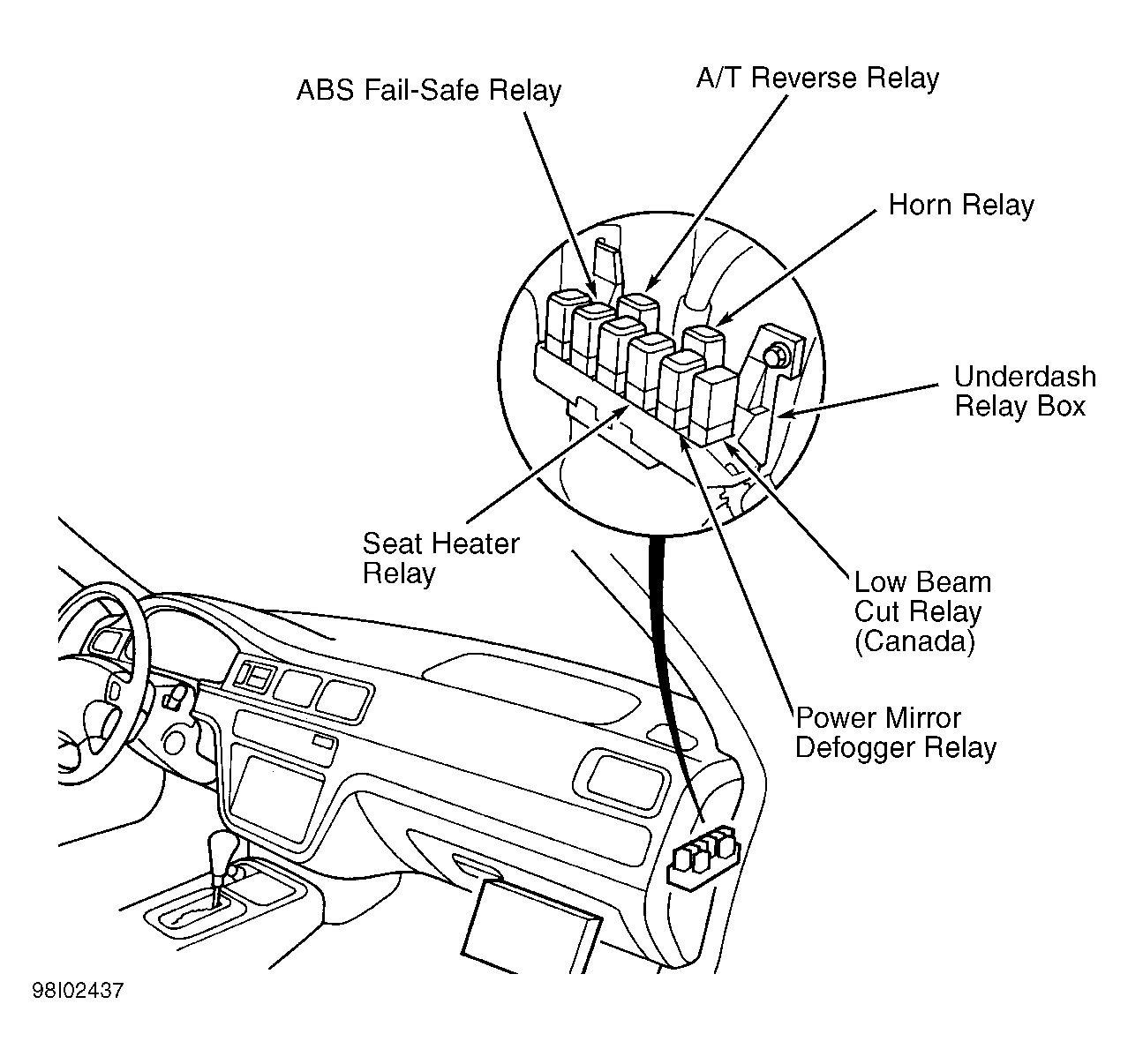

| Underdash Relay Box | Above right kick panel. See Figure . |

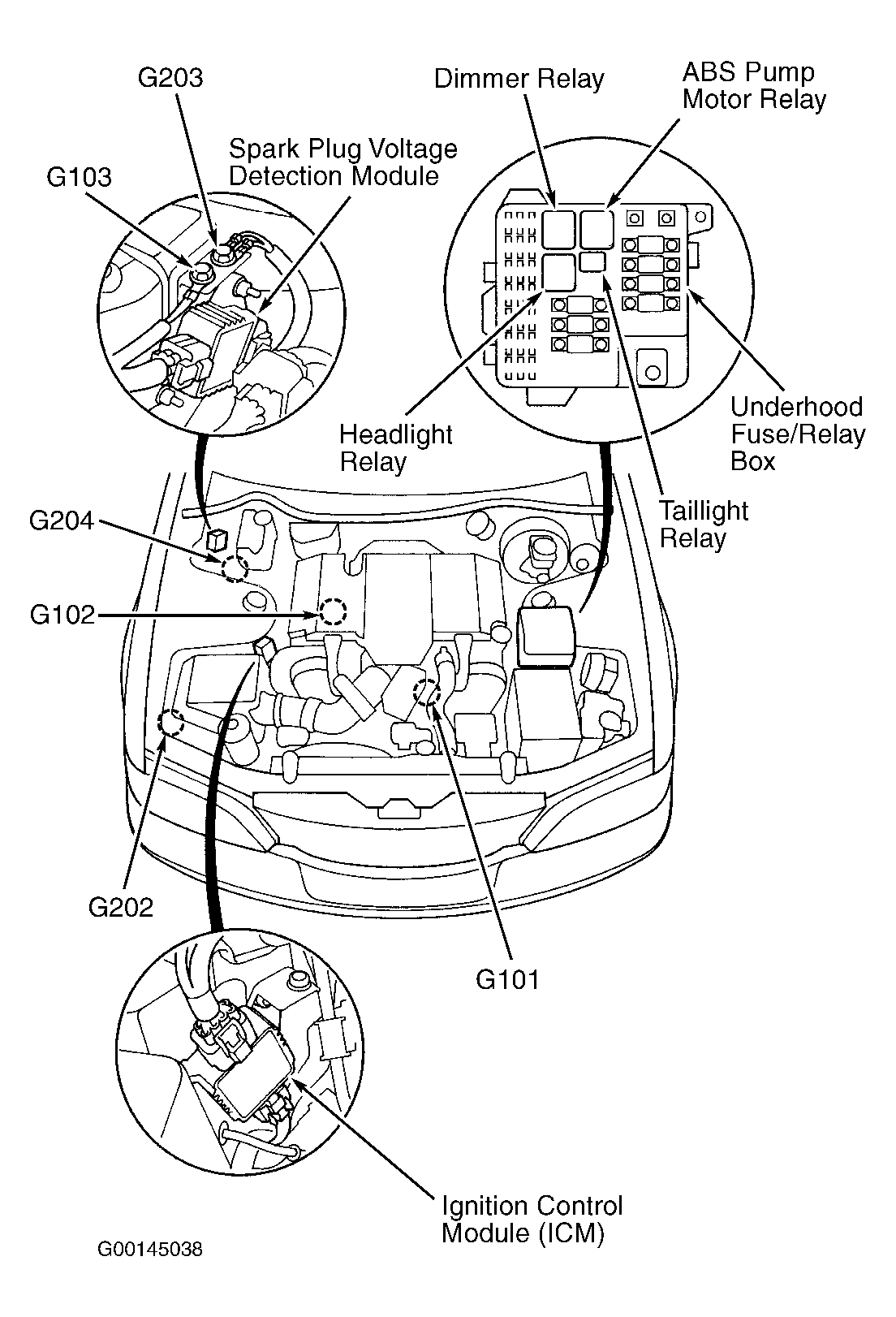

| Underhood Fuse/Relay Box | On left side of engine compartment. See Figure . |
