Abs Pump Motor Relay

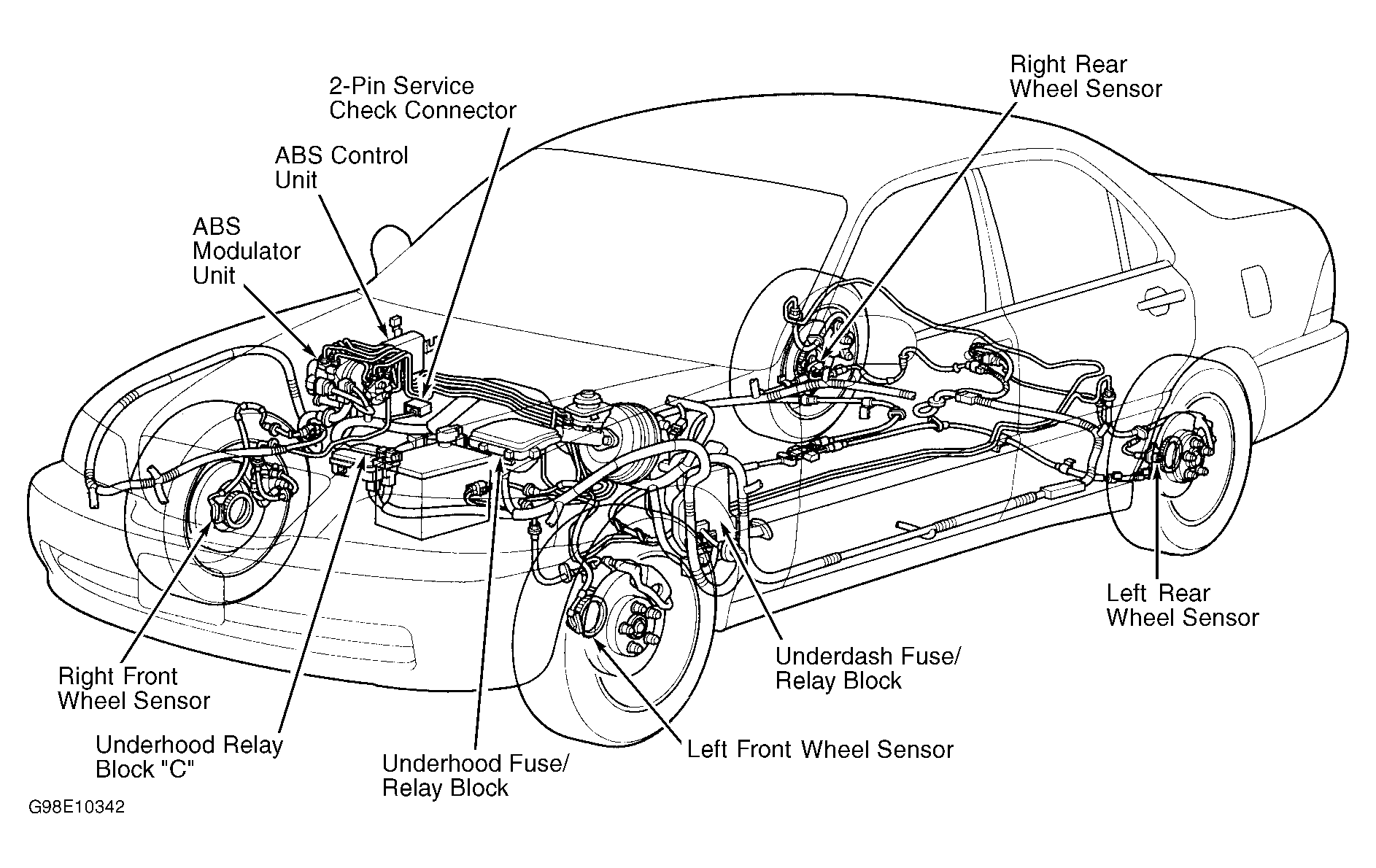

Remove relay from underhood fuse/relay block next to left strut tower. See Figure . With relay disconnected, use DVOM to check continuity between relay terminals No. and 3. See Fig 2 . Continuity should not exist. Apply battery voltage across terminals No. 2 and 4. Continuity should exist between terminals No. 1 and 3. If continuity is not as indicated, replace relay.

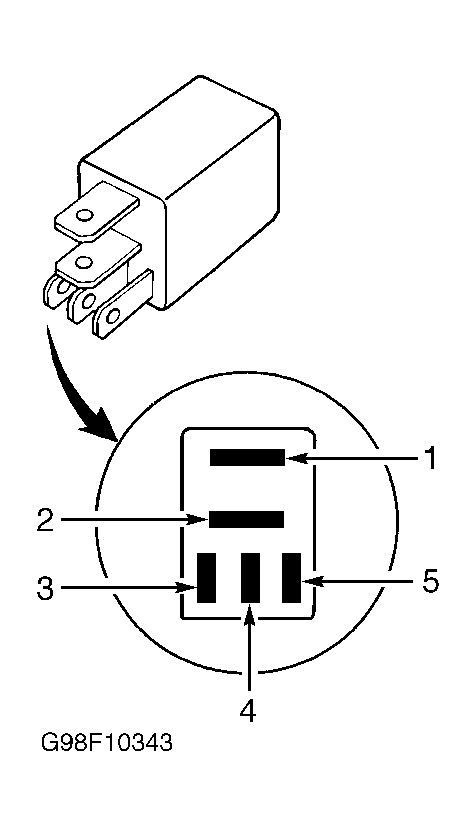

Fig 1: Identifying Fail-Safe Relay & Gauge Relay Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

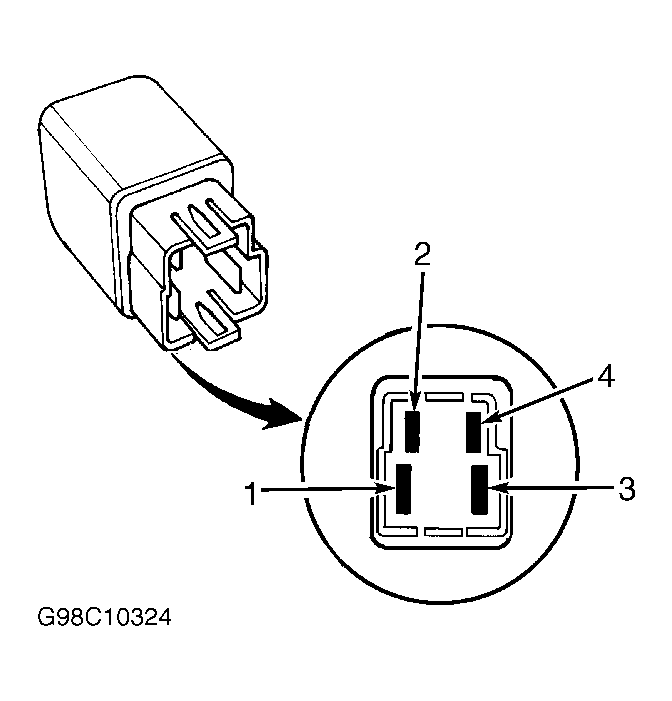

Fig 2: Identifying ABS Pump Motor Relay Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
