Power Mirror Motor Test Specifications (INTEGRA): 2.5TL

Remove mirror panel and disconnect power mirror motor 3-pin connector. See Fig 1. Using jumper wires, check motor operation by applying power and ground as specified. See POWER MIRROR MOTOR TEST (2.5TL) table. If motor does not function as specified, replace motor assembly.

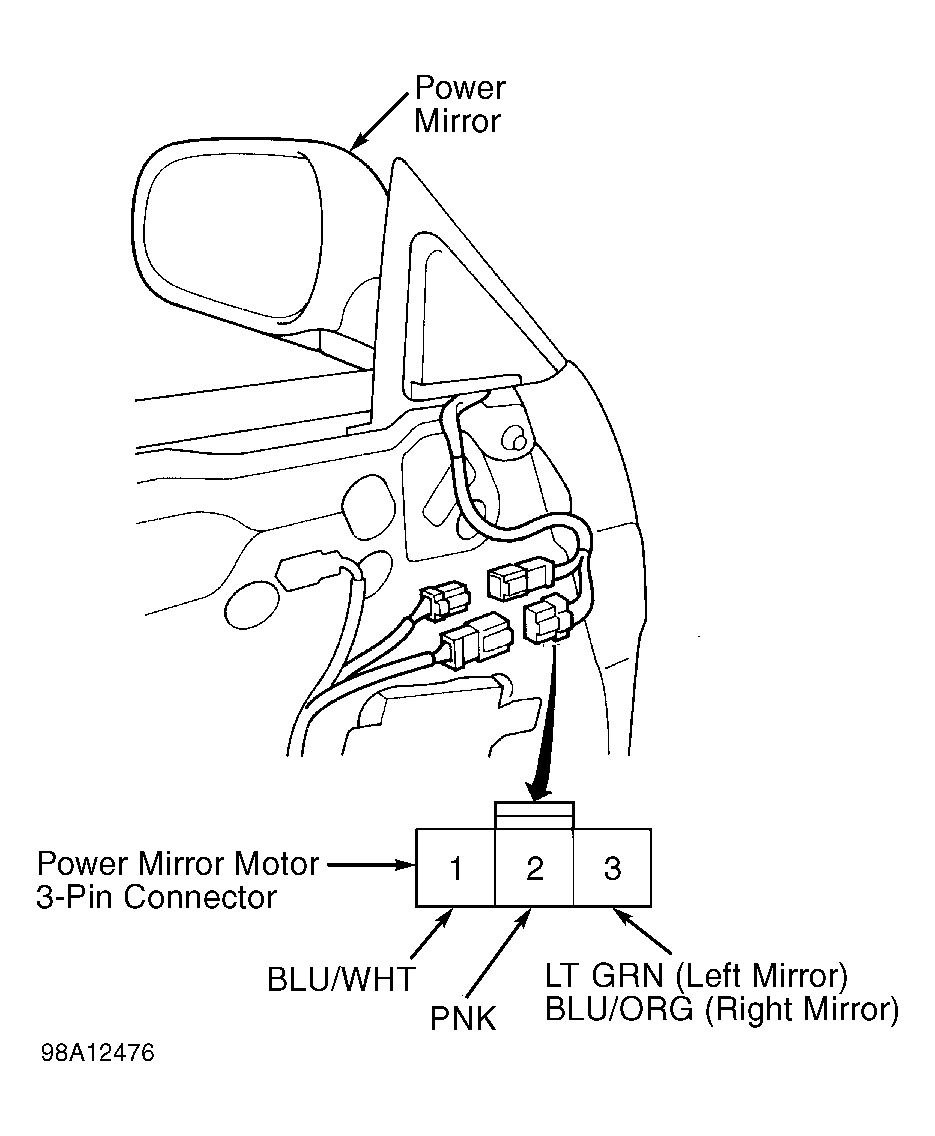

Fig 1: Power Mirror Motor Terminals (2.5TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

POWER MIRROR MOTOR TEST (2.5TL)

Application & Mirror Movement

⁽¹⁾ Battery Connection (+) & (-)

Tilt

1 & 2

Down

2 & 1

Swing

Left

2 & 3

Right

3 & 2

⁽¹⁾	Connect battery + and - terminals to indicated terminal.
