Abs Control Unit: Installation

Connect ABS control unit connectors. Install ABS control unit into kick panel area. See Fig 1. Install right kick panel. After installation, test drive vehicle and ensure system is functioning properly.

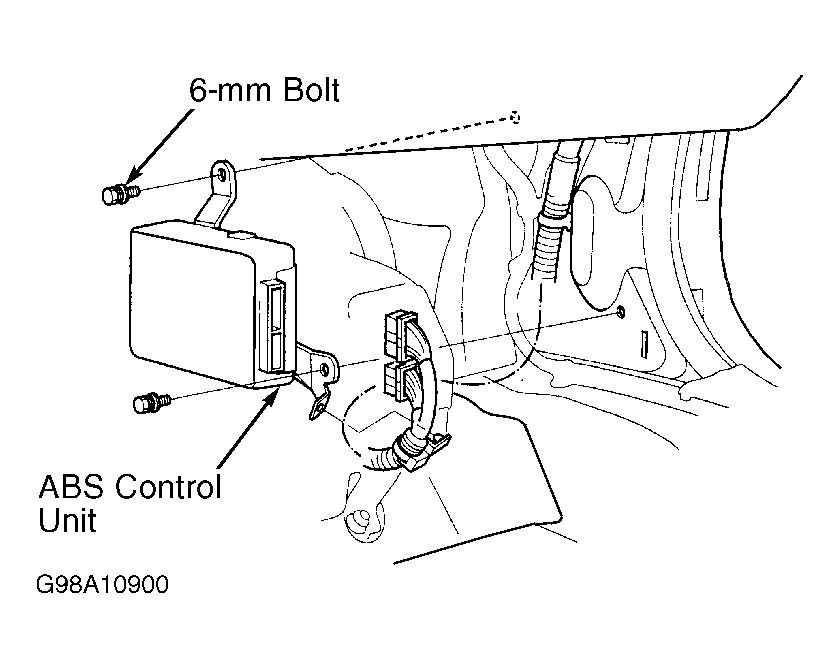

Fig 1: Accessing ABS Control Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
