Troubleshooting Flowchart - Linear Solenoid

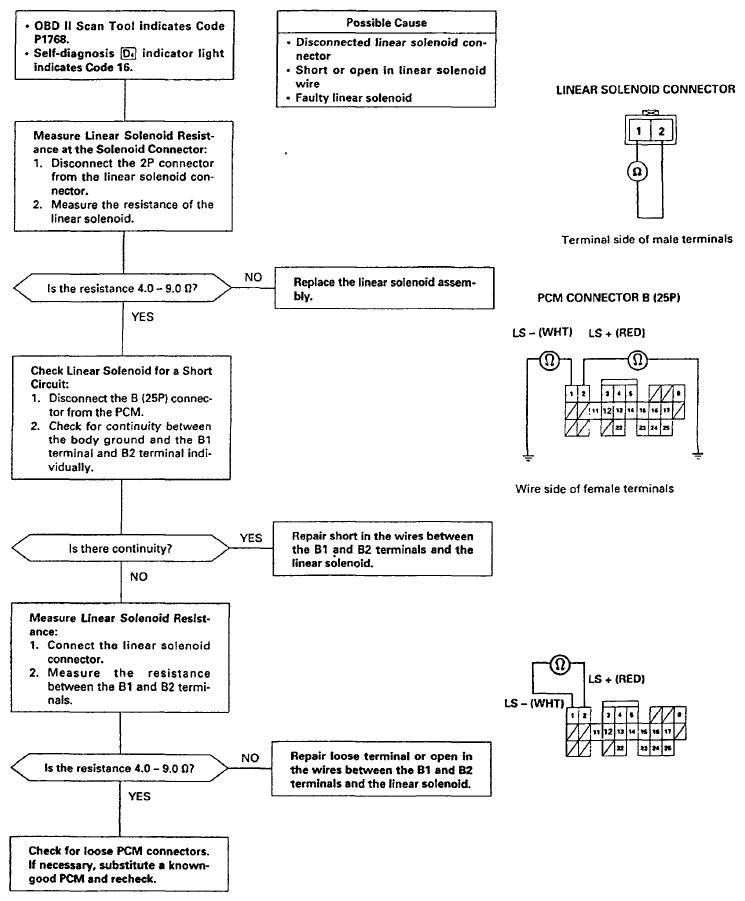

Fig 1: Troubleshooting Flowchart - Linear Solenoid
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
