Troubleshooting Flowchart - Shift Control Solenoid Valve B

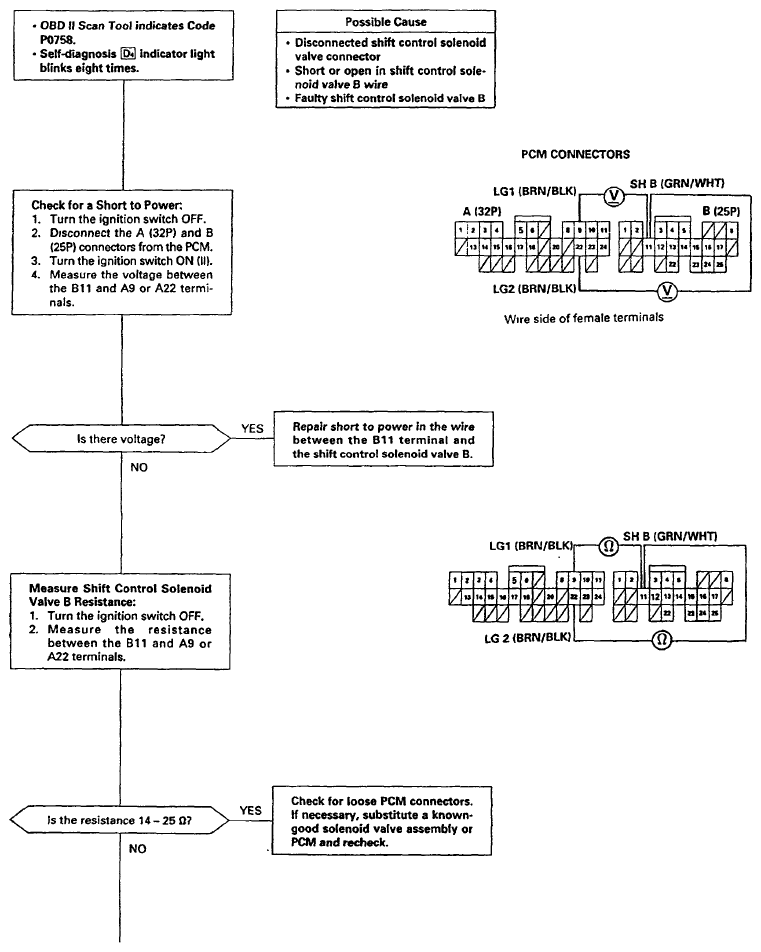

Fig 1: Troubleshooting Flowchart - Shift Control Solenoid Valve B (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

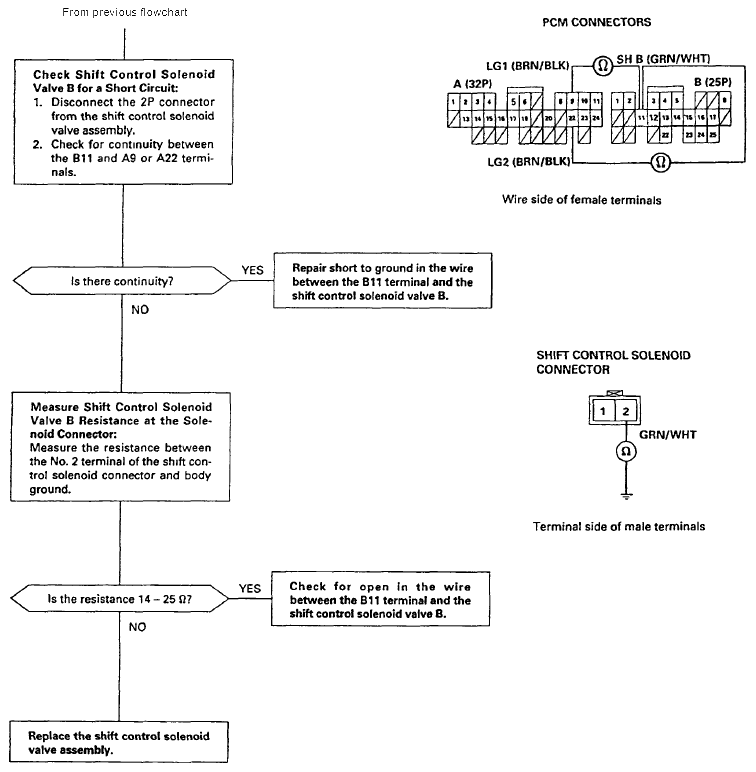

Fig 2: Troubleshooting Flowchart - Shift Control Solenoid Valve B (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
