Keyless Receiver Unit Input

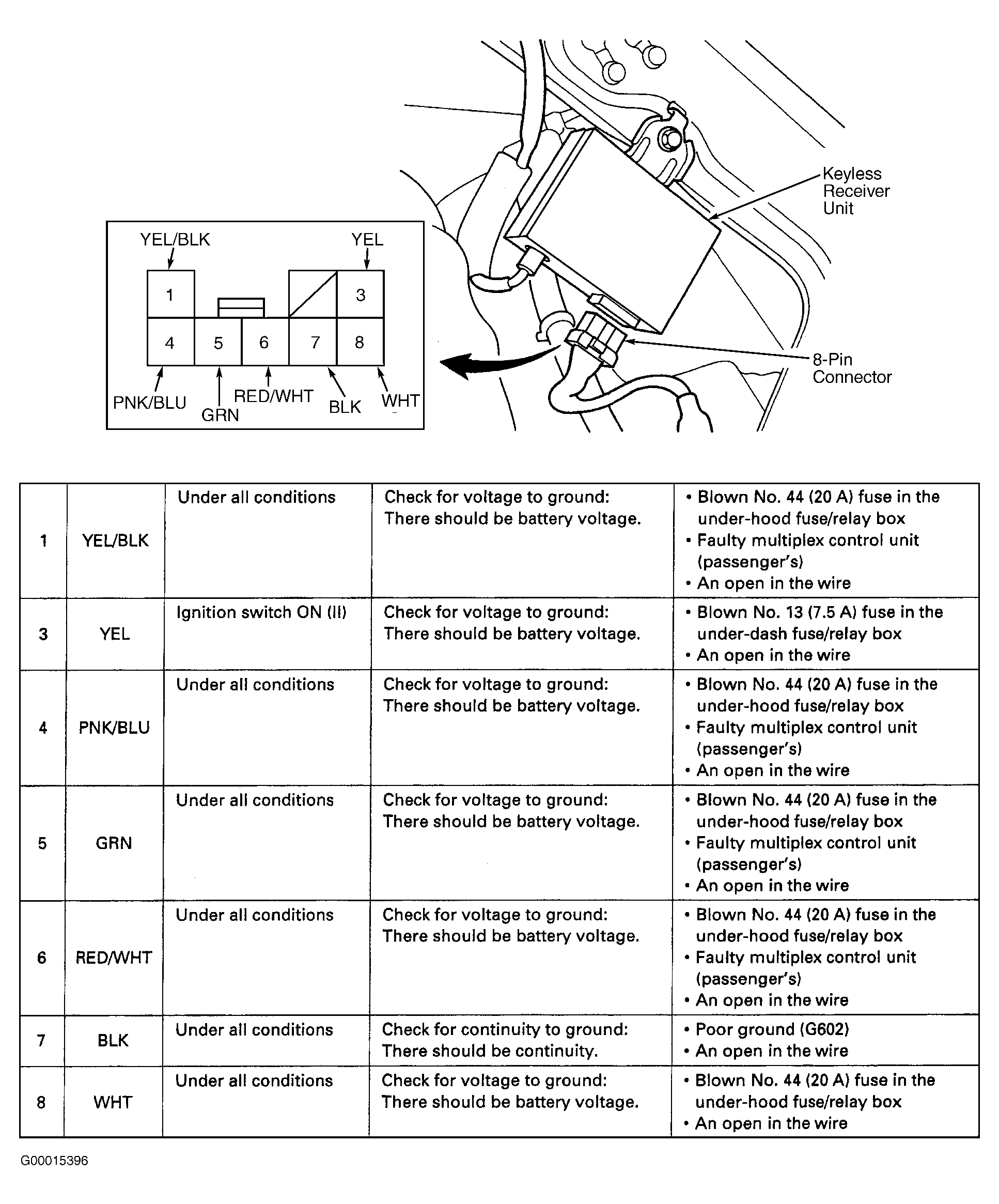

Remove 2 bolts below rear seat lower cushion and seat lower cushion. Remove rear seat headrests. Remove center seat belt from guide. Remove 4 bolts below and 4 bolts behind rear seat back. Remove 2 clips from trunk area and rear seat back. Disconnect keyless receiver unit 8-pin connector. Inspect connectors and terminals. Check for bent, loose or corroded terminals. Perform keyless receiver unit input test. See Fig 1 . Repair as necessary and recheck system operation. If input test is okay, replace keyless receiver unit and recheck system operation.
