Component Locations

COMPONENT LOCATIONS

Component	Location
Audio Unit	Center Of Dash, Above Console
Display Unit	Center Of Dash, Above Audio Unit
GPS Antenna	Under Package Shelf
Navigation Unit	Left Front Of Trunk Compartment
Yaw Rate Sensor	Built Into Navigation Unit

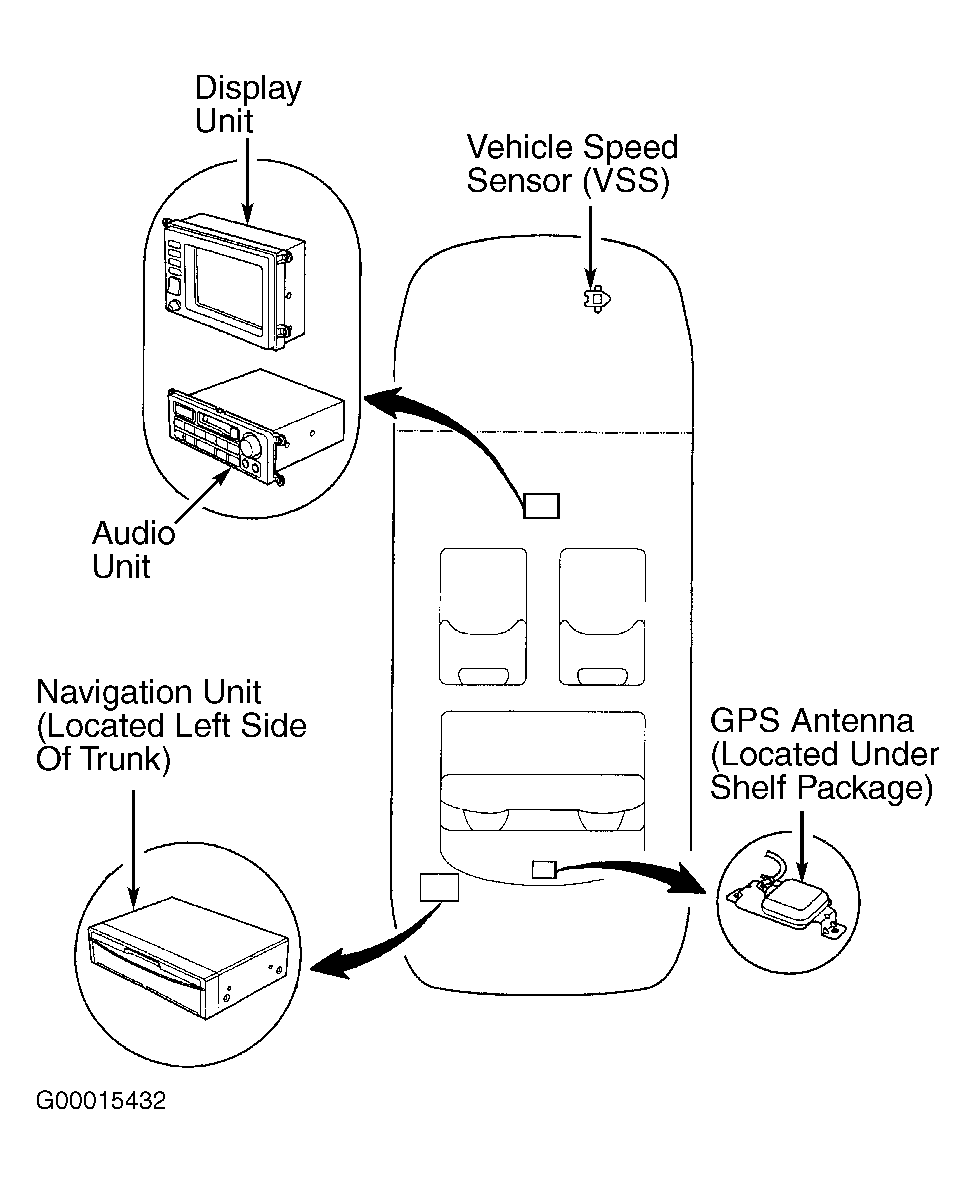

Fig 1: Identifying Navigation System Component Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.
