Automatic Transmission

COMPRESSOR BELT / REPLACEMENT
Automatic Transmission

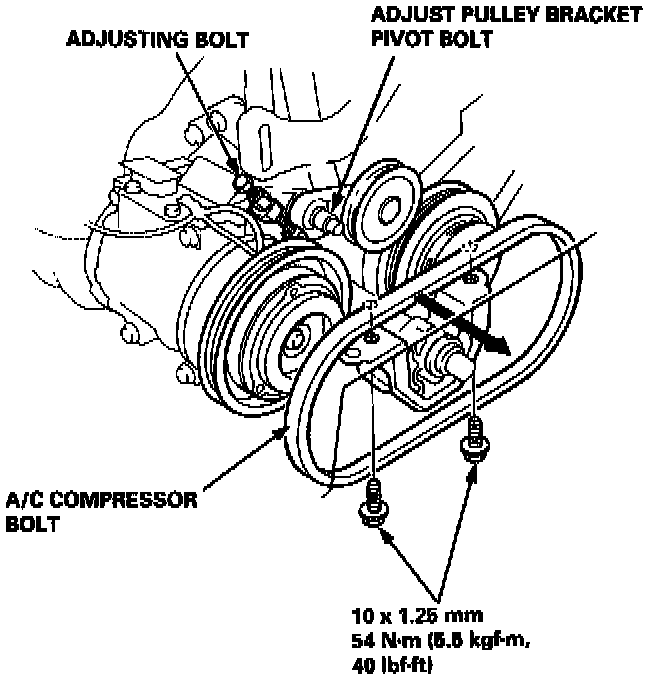

1. Loosen the adjust pulley bracket pivot bolt and the adjusting bolt, then remove the A/C compressor belt from the pulleys.






2. Remove the two mounting bolts from the left front engine mount, then pass the A/C compressor belt through the gap between the body and left front engine mount.
3. Install in the reverse order of removal, and adjust the A/C compressor belt.
