Rear Window Defogger Switch Test

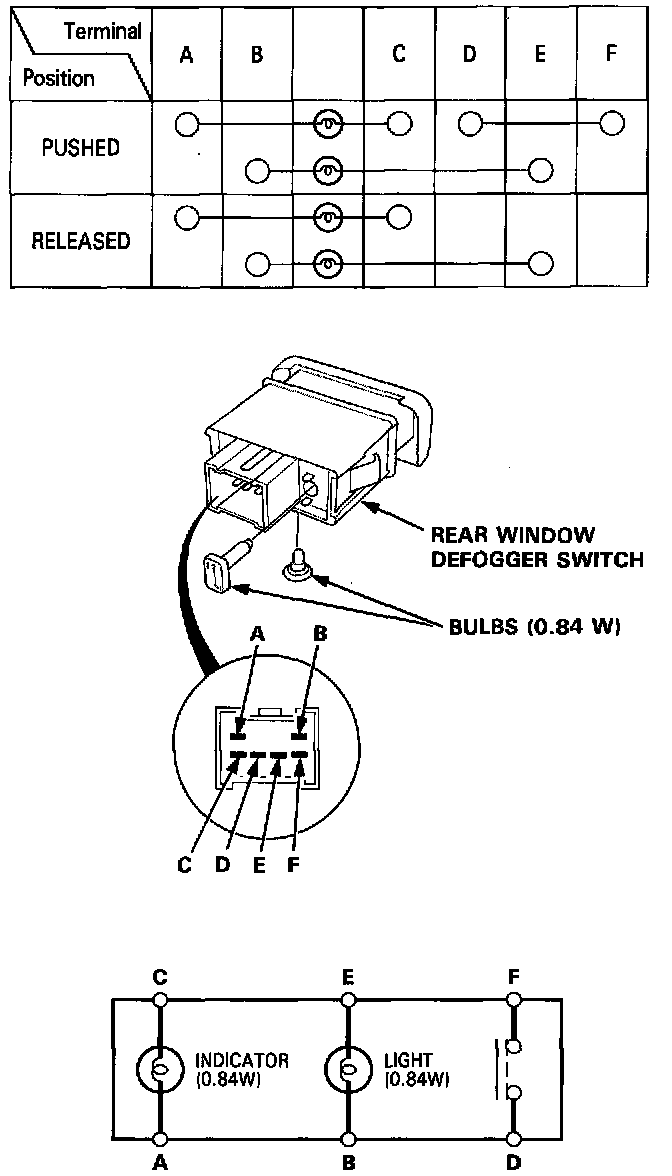

REAR WINDOW DEFOGGER SWITCH / TEST

NOTE: Be careful not to damage the heater control/center air vent.

1. Carefully pry the switch out of the heater control/center air vent.

2. Check for continuity between the terminals according to the table.
