Power Mirror Replacement

Power Mirror Replacement

1. Lower the door glass fully.

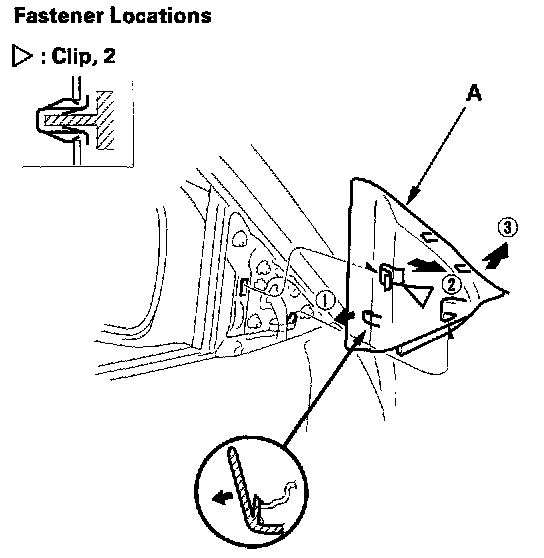

2. Carefully pry out the mirror mount cover (A) by hand in the sequence shown.
3. Remove the door panel.

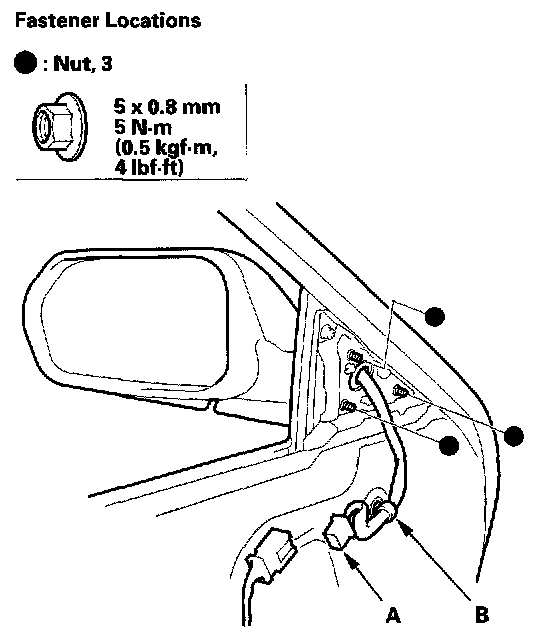

4. Disconnect the connector (A), and detach the harness clip (B), then remove the nuts securing the mirror.

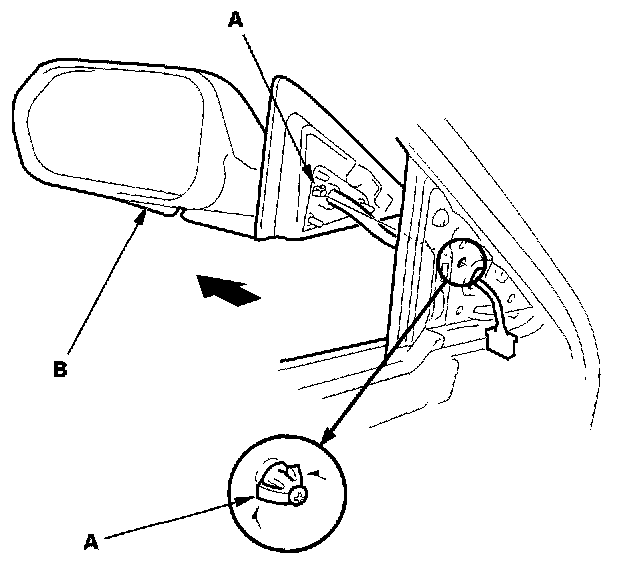

5. While holding the mirror, push out the clip (A), and remove the mirror (B). Take care not to scratch the door.
6. Install the mirror in the reverse order of removal, and note these items:
- Make sure the connector is plugged in properly.
- Attach the harness clip.
