Home >> Acura >> 2001 >> 3.2TL V6-3.2L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Diagrams >> Electrical Diagrams

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

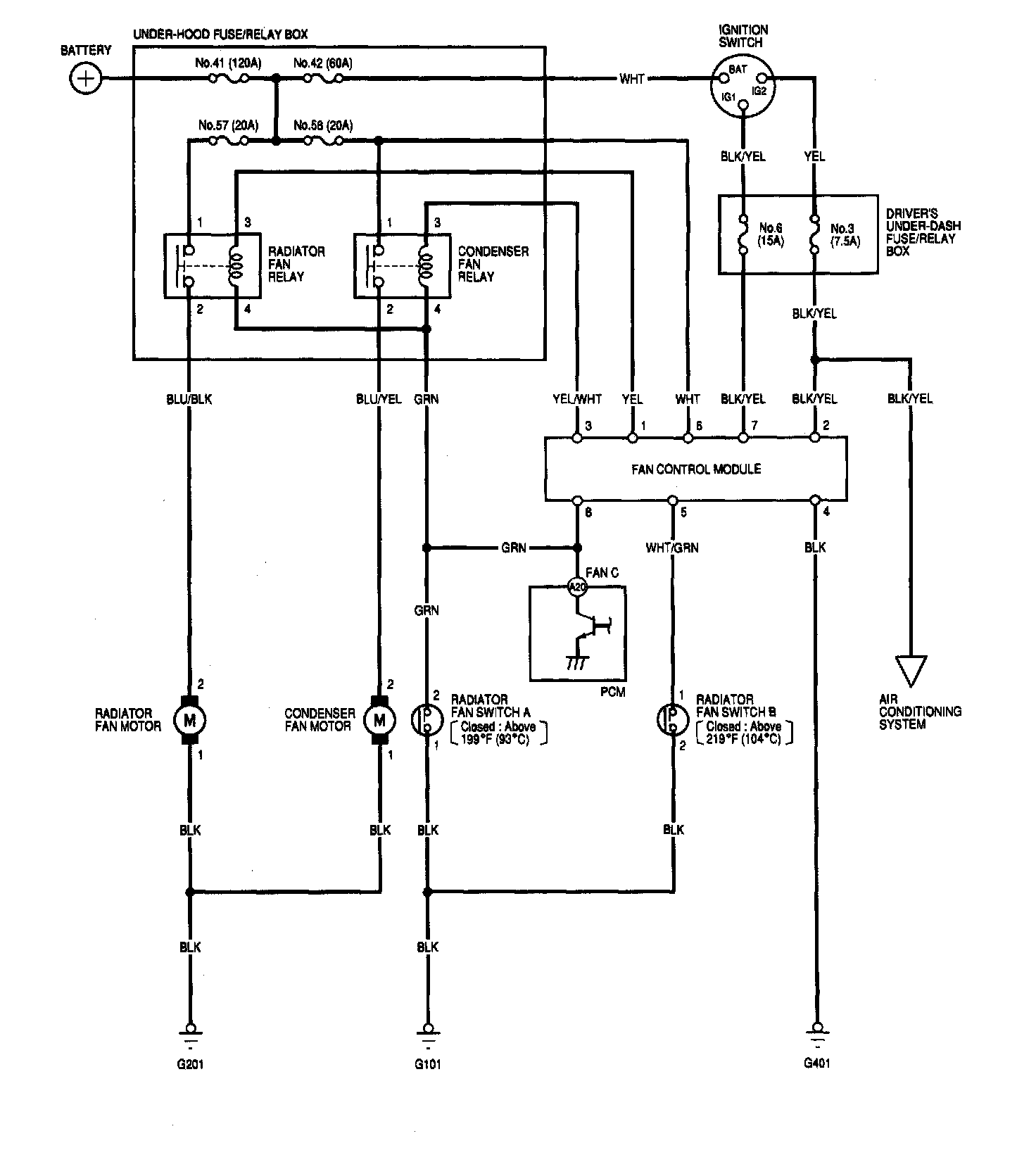

Electrical Diagrams
