General Module

Multiplex Control Inspection Connector:

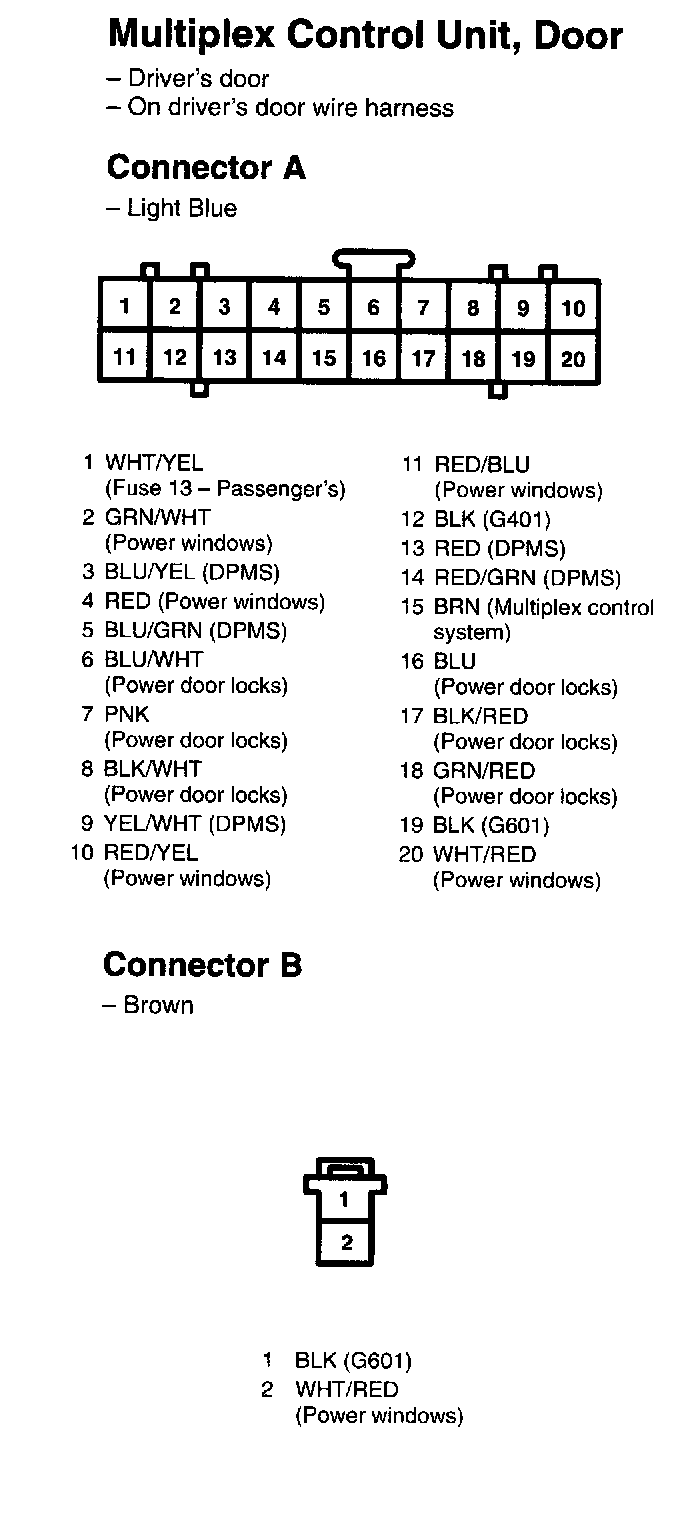

Multiplex Control Unit, Door:

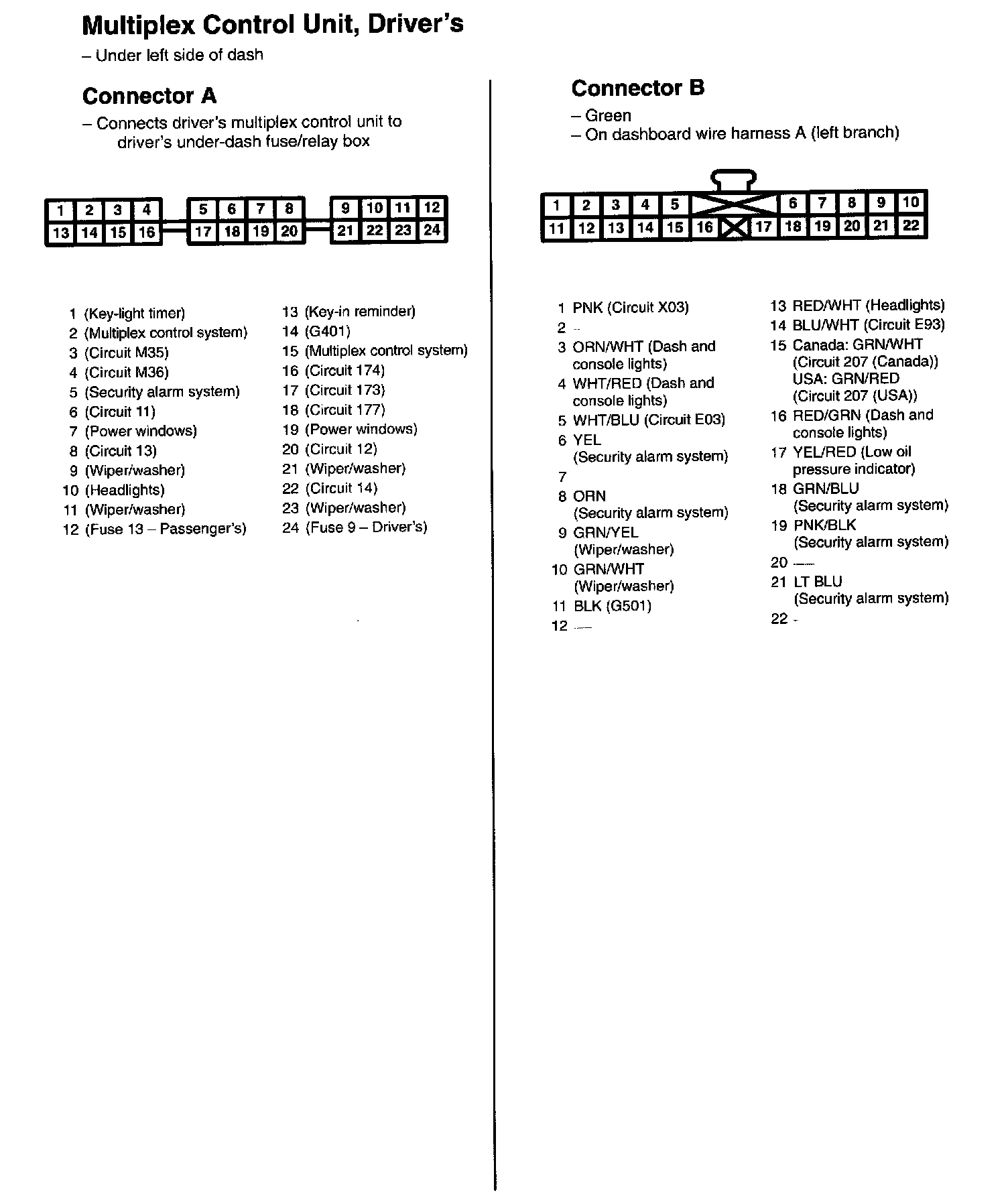

Multiplex Control Unit, Driver's:

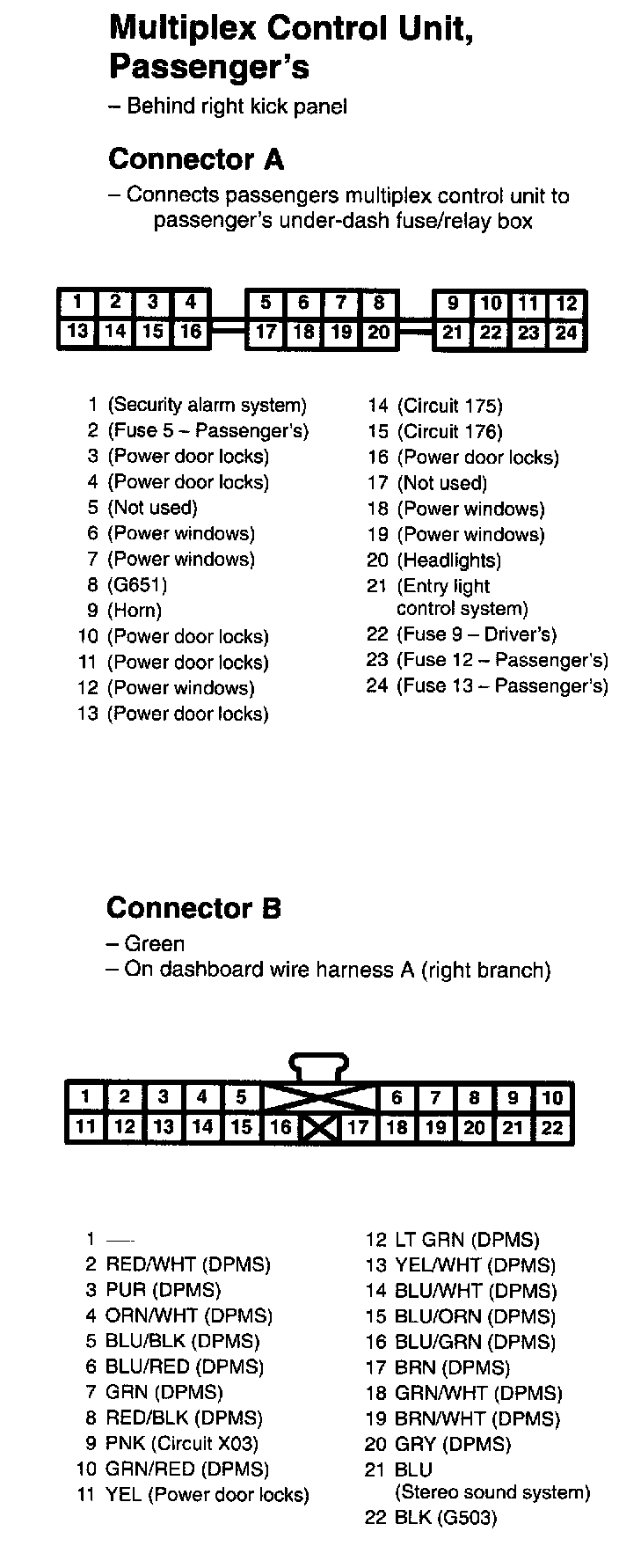

Multiplex Control Unit, Passenger's:
