Component Locations

NOTE: See Fig 1 for component locations.

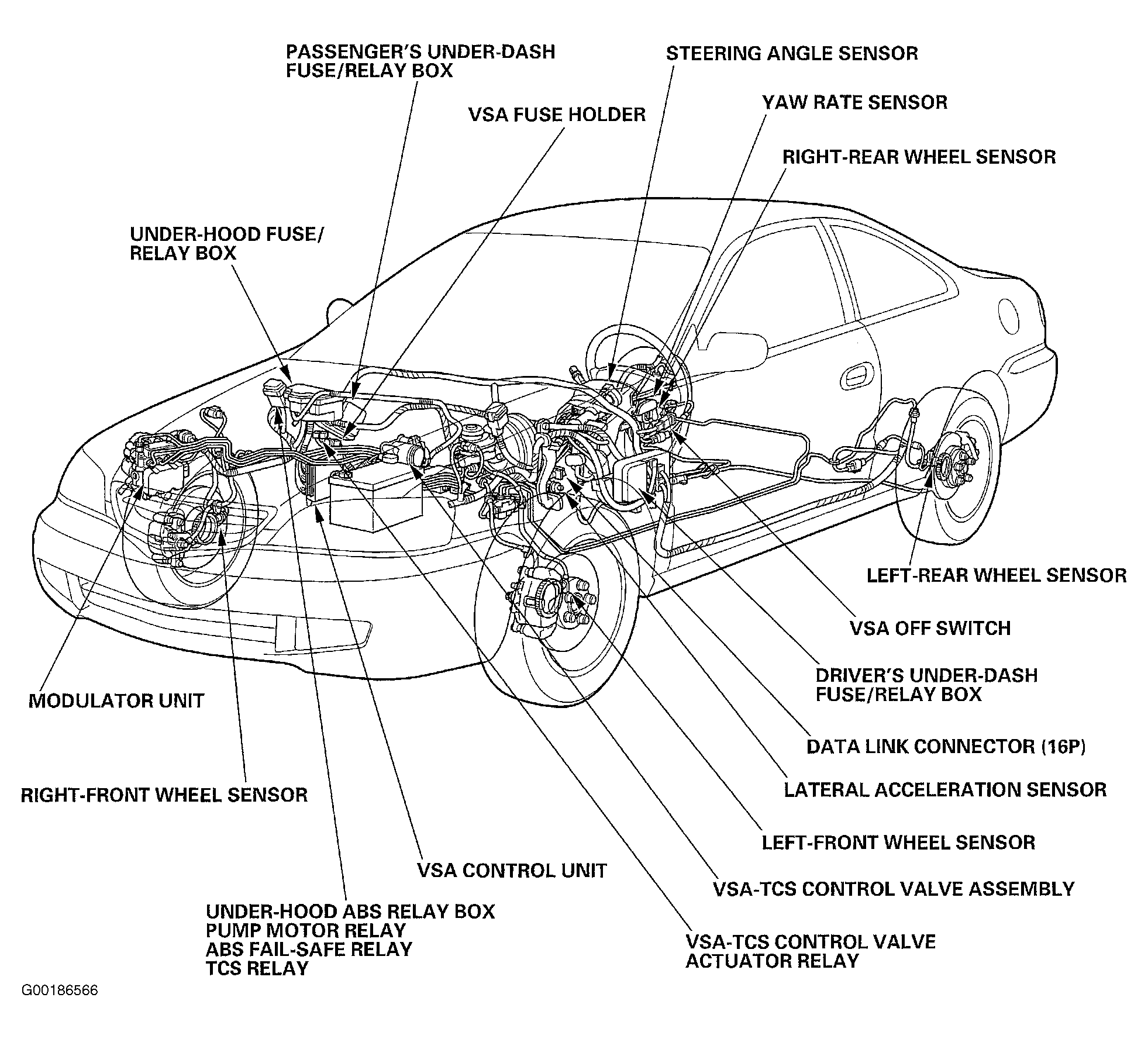

Fig 1: Locating VSA Components
G00186566Courtesy of AMERICAN HONDA MOTOR CO., INC.
