General Module

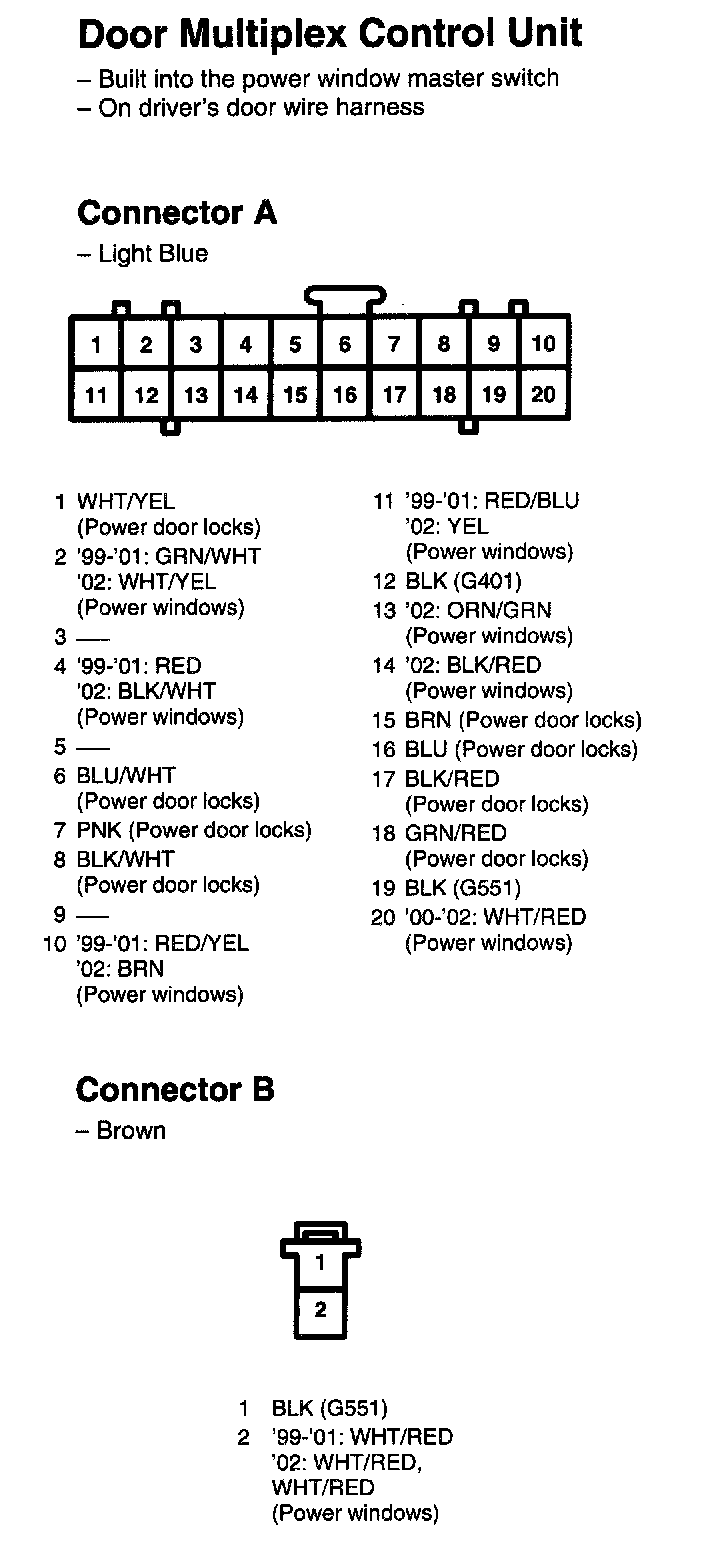

Door Multiplex Control Unit Connectors A, B:

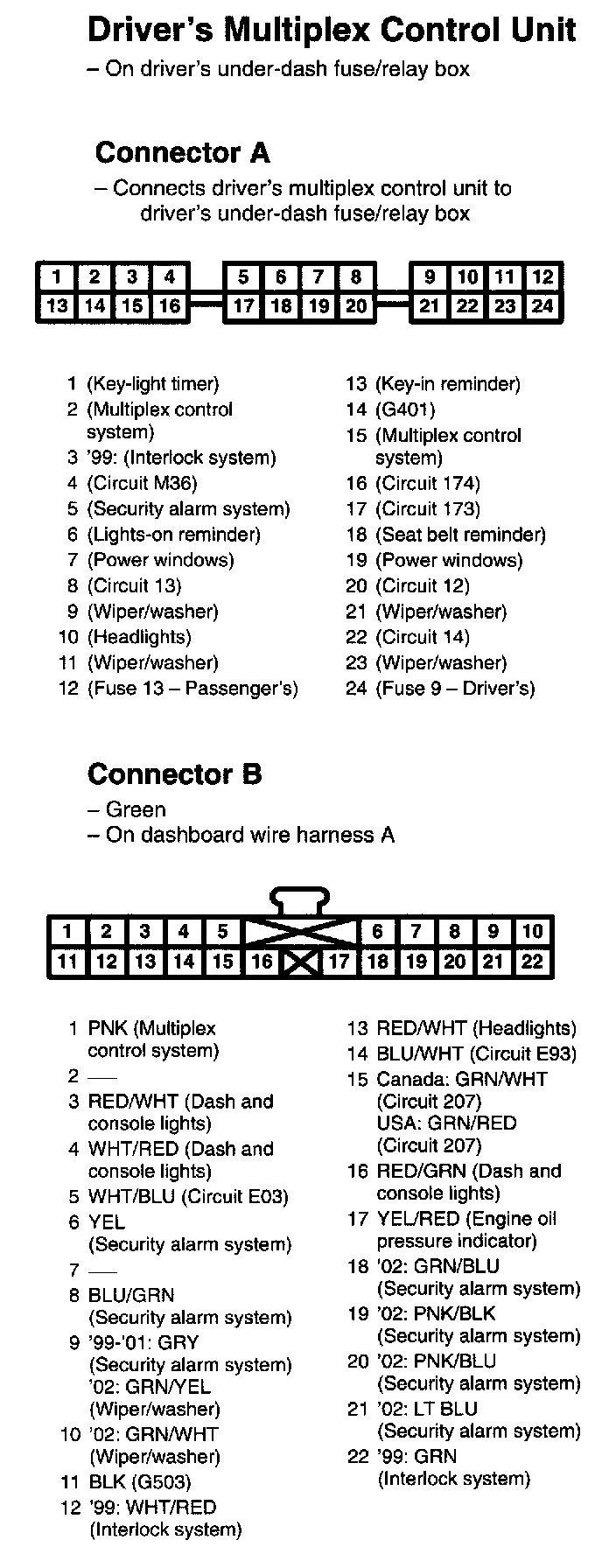

Driver's Multiplex Control Unit Connectors A, B:

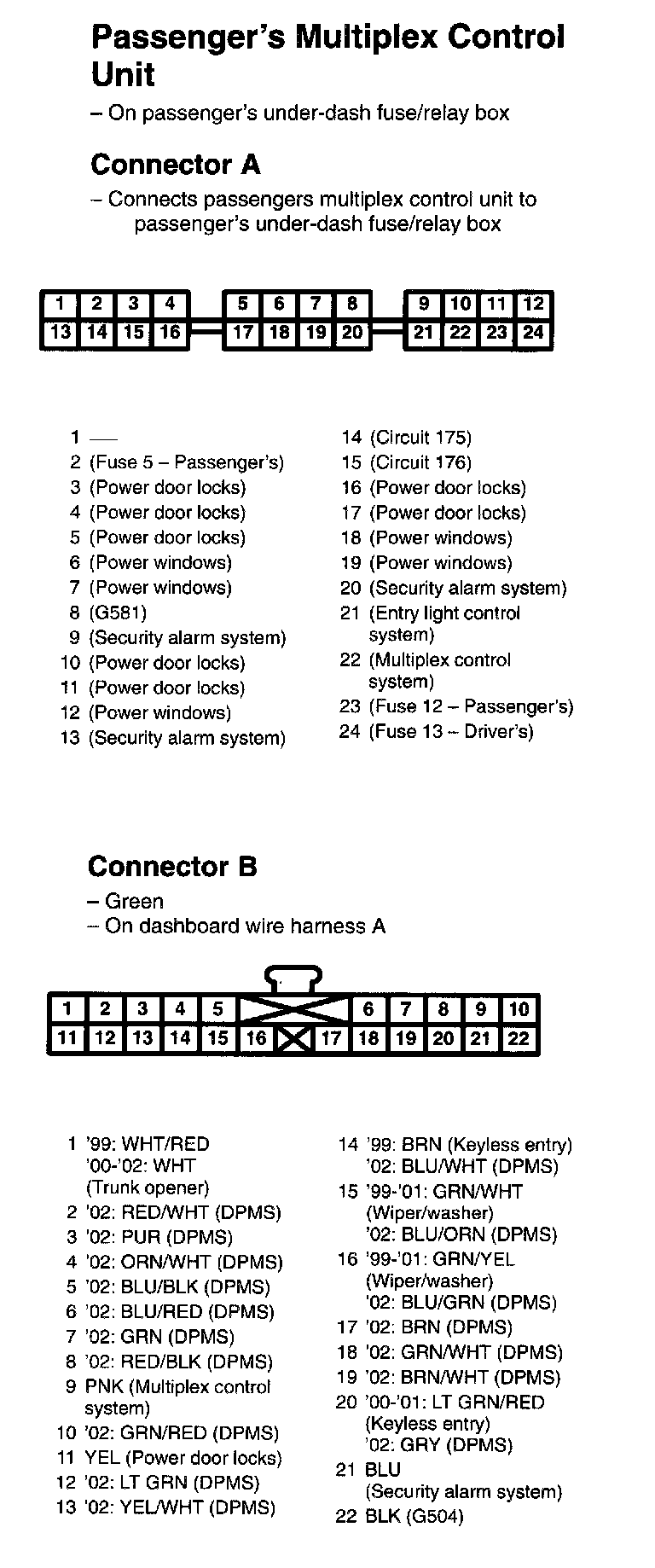

Passenger's Multiplex Control Unit Connectors A, B:
