Power Window Control Unit ('03) Connector End View

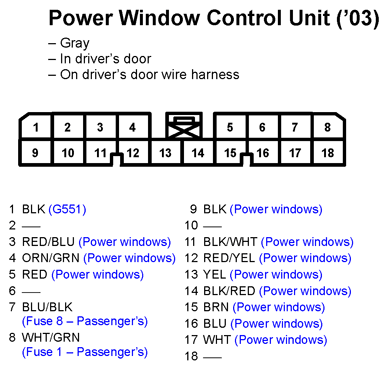

Fig 1: Power Window Control Unit ('03) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
