| A/C Compressor |
| Bracket-To-Block Bolts |
32 (44) |
| Compressor Mounting Bolts |
16 (22) |
| Auto-Tensioner Bolt |
|
| Baffle Plate Bolt |
|
| Bearing Cap Bolts |
56 (76) |
| Camshaft |
| Back Cover Mounting Bolts |
16 (22) |
| Pulley Bolt |
66 (90) |
| Connecting Rod Bearing Cap Bolts |
15 (20) |
| Crankshaft |
| Rear Seal Cover Bolts |
|
| Pulley Bolt |
181 (245) |

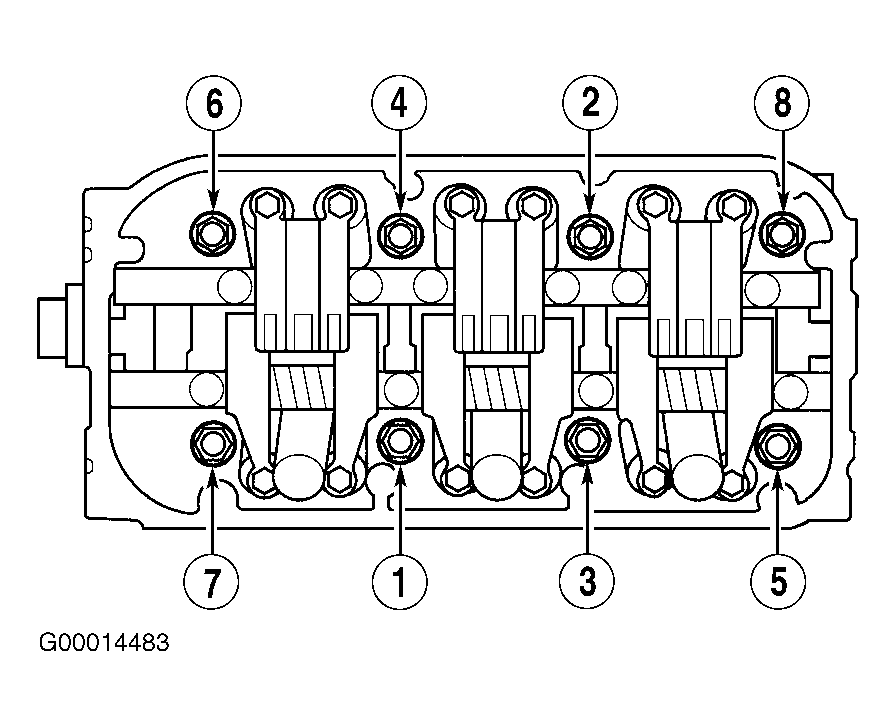

| Cylinder Head Bolts |
| 1st Step |
29 (39) |
| 2nd Step |
51 (69) |
| 3rd Step |
72 (98) |
| Cylinder Head Cover Bolts |
|
| Drain Plug |
29 (39) |
| Drive Plate |
54 (74) |
| Engine Drive Plate Mounting Bolts |
55 (75) |
| Engine Ground Strap Bolt |
28 (38) |
| Engine Harness Cowl Cover Nuts |
|
| Engine Mount Bracket-To-Block Bolts |
32 (44) |
| Engine Oil Bolt |
14 (20) |
| Engine Radius Rod Flange Bolts |
119 (161) |
| Engine Upper Cover Bolts |
|
| Exhaust Manifold |
| Cover Bolts |
16 (22) |
| Self-Locking Nuts |
23 (31) |
| Flange Bolts |
119 (162) |
| Flywheel |
87 (118) |
| Frame Sub-Assembly |
| Front Mounting Bolts |
76 (103) |
| Rear Extension Mounting Bolts |
40 (54) |
| Rear Extension Nuts |
28 (38) |
| Front Exhaust Pipe |
| Pipe-To-Catalytic Converter Self-Locking Nuts |
24 (33) |
| Pipe-To-Manifold Self-Locking Nuts |
40 (54) |
| Vacuum Tube Bracket Bolts |
28 (38) |
| Front Mount |
| Bracket-To-Block Bolts |
28 (38) |
| Bracket-To-Support Nut |
40 (54) |
| Fuel Injector Base Nuts |
16 (22) |
| Fuel Pulsation Damper |
16 (22) |
| Ignition Coil Mounting Bolts |
|
| Intake Air Temperature Sensor |
13 (18) |
| Intake Manifold |
| Manifold Chamber Cover Bolts |
|
| Mounting Bolts/Nuts |
16 (22) |
| Upper Cover Bolts/Nuts |
|
| Vacuum Nipple |
20 (27) |
| Main Bearing Caps |
| Side Bolts |
36 (49) |
| Top Bolts |
56 (76) |
| Oil Filter Housing Mounting Bolts |
16 (22) |
| Oil Pan Mounting Bolts |
|
| Oil Pressure Switch |
13 (18) |
| Oil Pump |
| Cover Screws |
|
| Mounting Bolts |
|
| Relief Valve Sealing Bolt |
29 (39) |
| Oil Screen Mounting Bolts |
|
| Power Steering Mounting Nut/Bolt |
17 (24) |
| Power Steering Pump Bracket Bolts |
16 (22) |
| Radiator Upper Mounting Bolts |
|
| Rear Mount |
| Bracket-To-Block Bolts |
28 (38) |
| Bracket-To-Support Nut |
40 (54) |
| Rocker Shaft Mounting Bolts |
18 (24) |
| Shift Control Lever |
| Cable Cover Bolts |
16 (22) |
| Cable Holder Bolts |
|
| End Bolt |
|
| Side Engine Mount Bracket |
| Bracket-To-Body Vertical Bolts |
32 (44) |
| Bracket-To-Support Horizontal Bolt |
40 (54) |
| Strut Brace Nut |
16 (22) |
| Thermostat Housing Bolts |
|
| Throttle Body Mounting Bolts/Nuts |
16 (22) |
| Timing Belt |
| Auto Tensioner Mounting Bolts |
|
| Idler Pulley Bolt |
32 (44) |
| Lower Cover Bolts |
|
| Upper (Camshaft) Cover Bolts |
16 (22) |
| Transmission Lower Rear Mount Bolts |
28 (38) |
| Valve Adjusting Screw Lock Nut |
14 (19) |
| VSP Speed Sensor Mount Bolts |
16 (22) |
| VTEC Solenoid Valve Mounting Bolts |
|
| Water Passage Assembly Mounting Bolts |
16 (22) |
| Water Pump Mounting Bolts |
|
