Pinout Values and Diagnostic Parameters

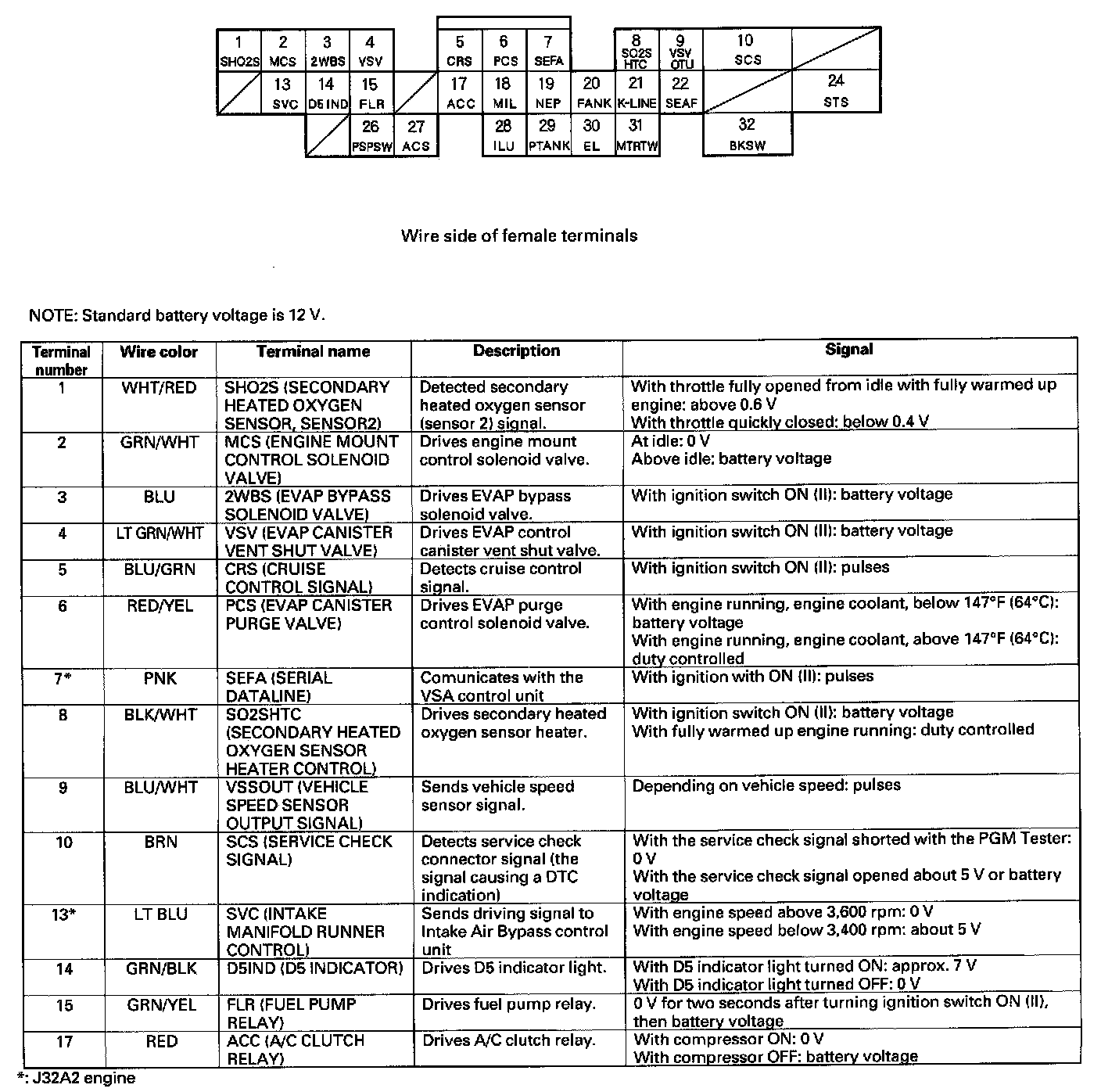

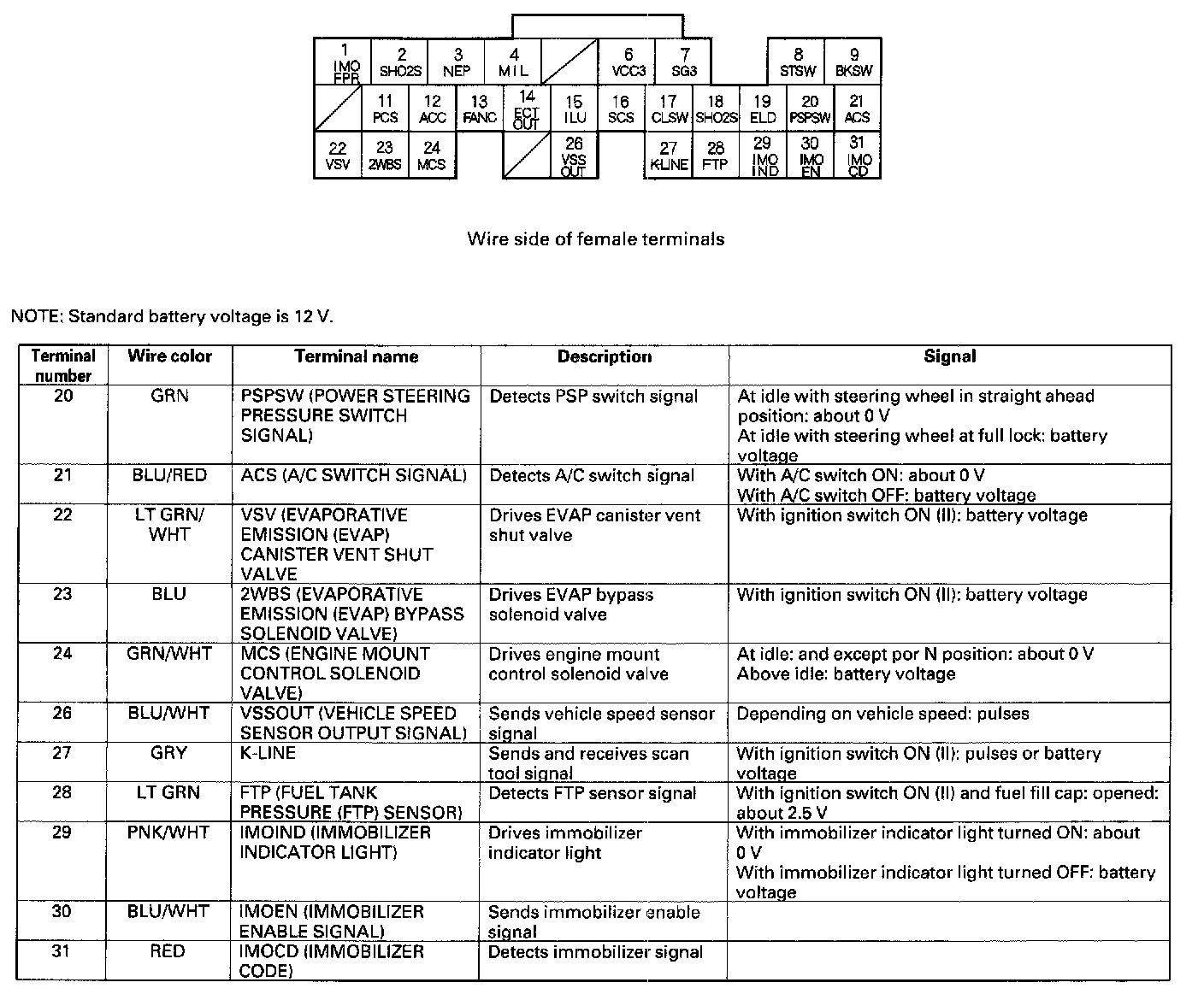

PCM Inputs And Outputs At Connector A (32P) - A/T:

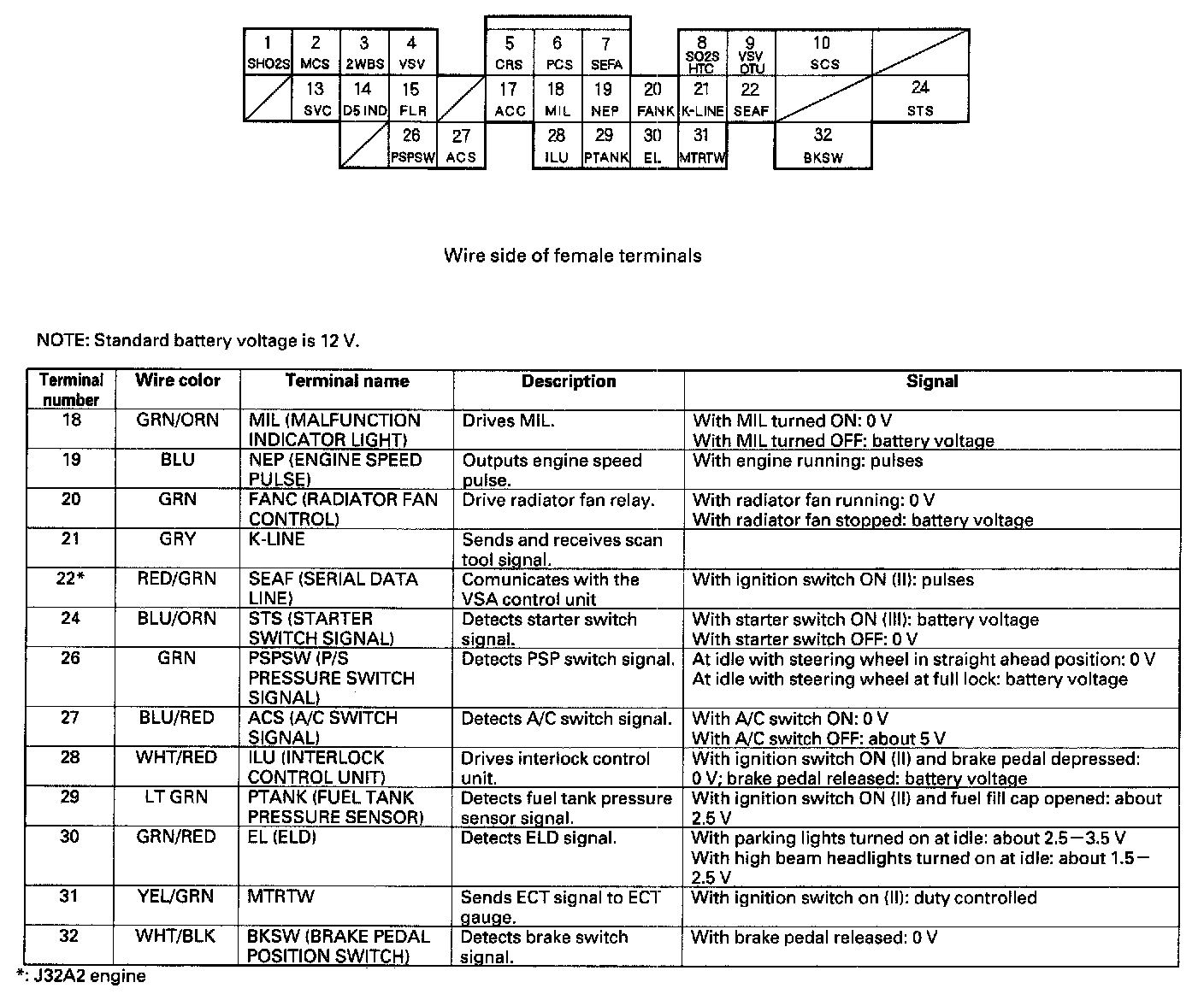

PCM Inputs And Outputs At Connector A (32P) - A/T:

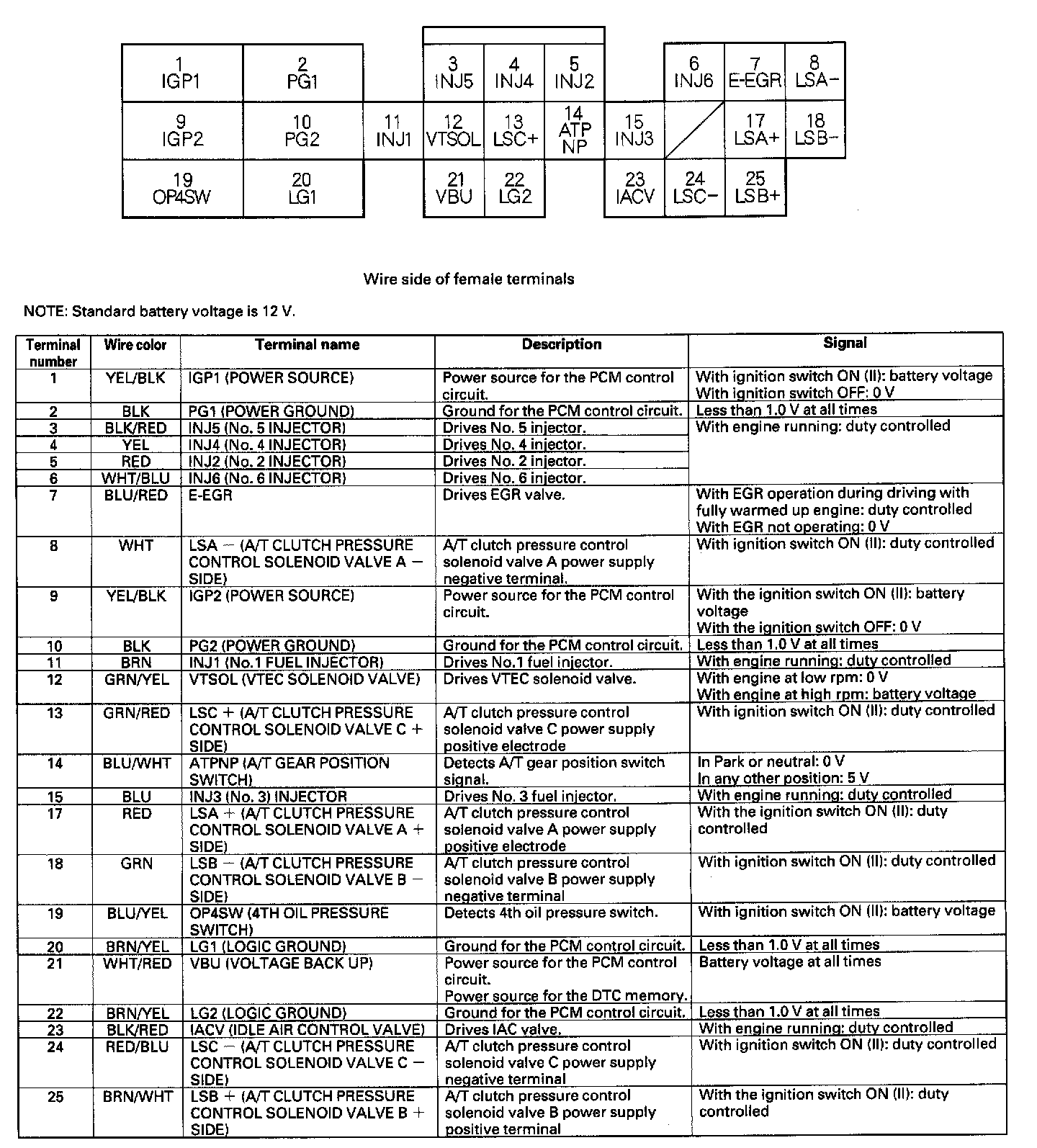

PCM Inputs And Outputs At Connector B (25P) - A/T:

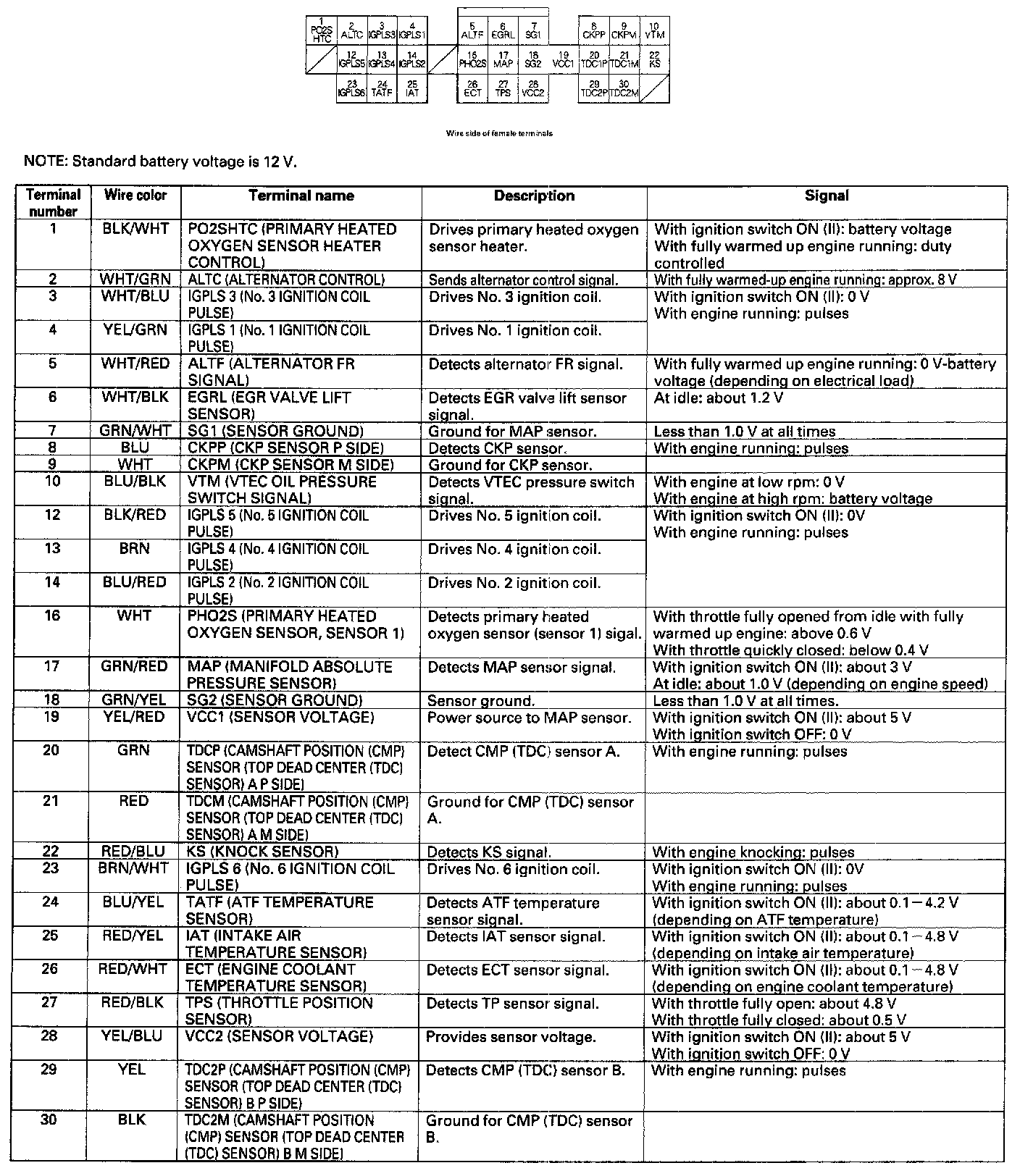

PCM Inputs And Outputs At Connector C (31P) - A/T:

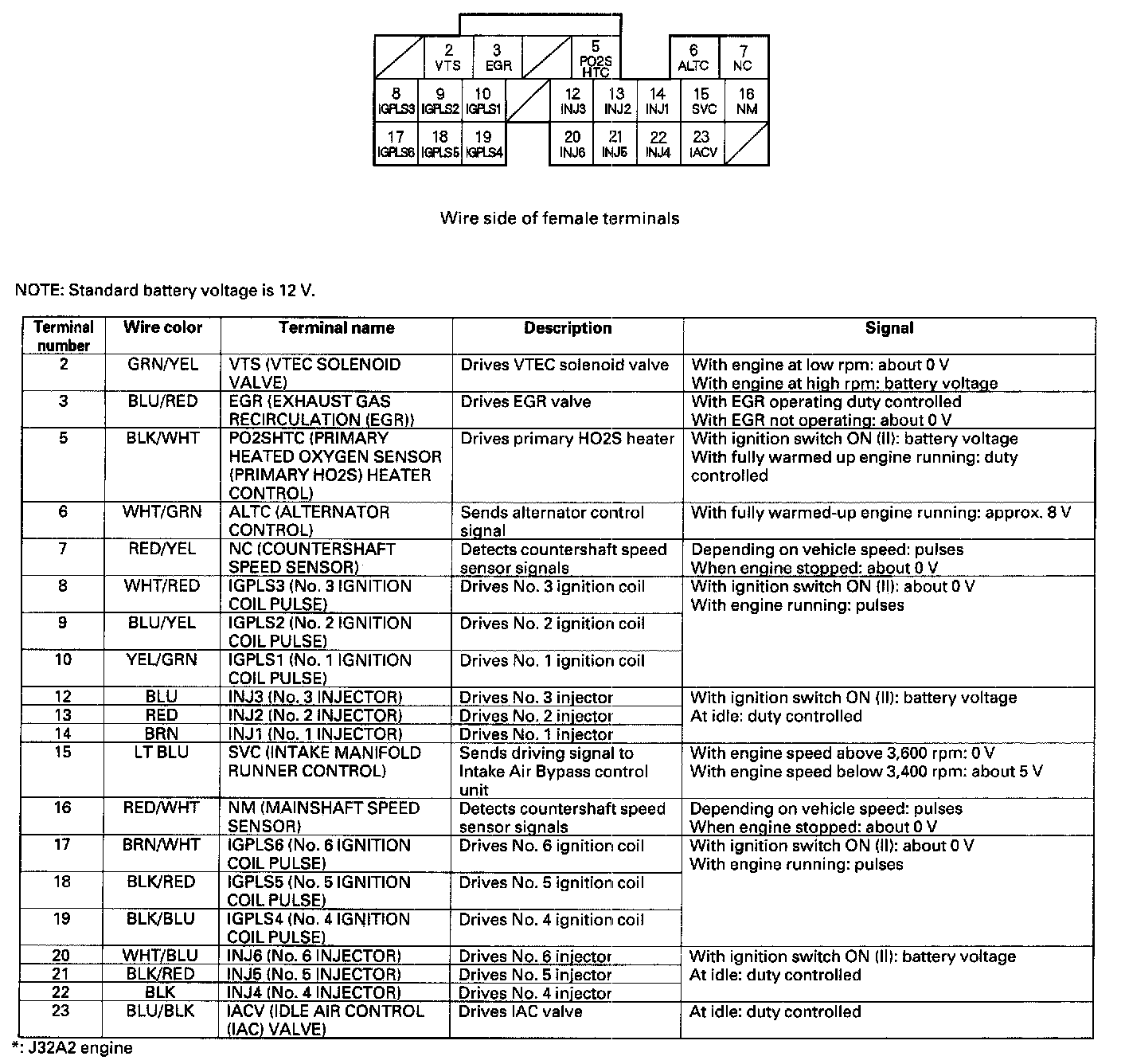

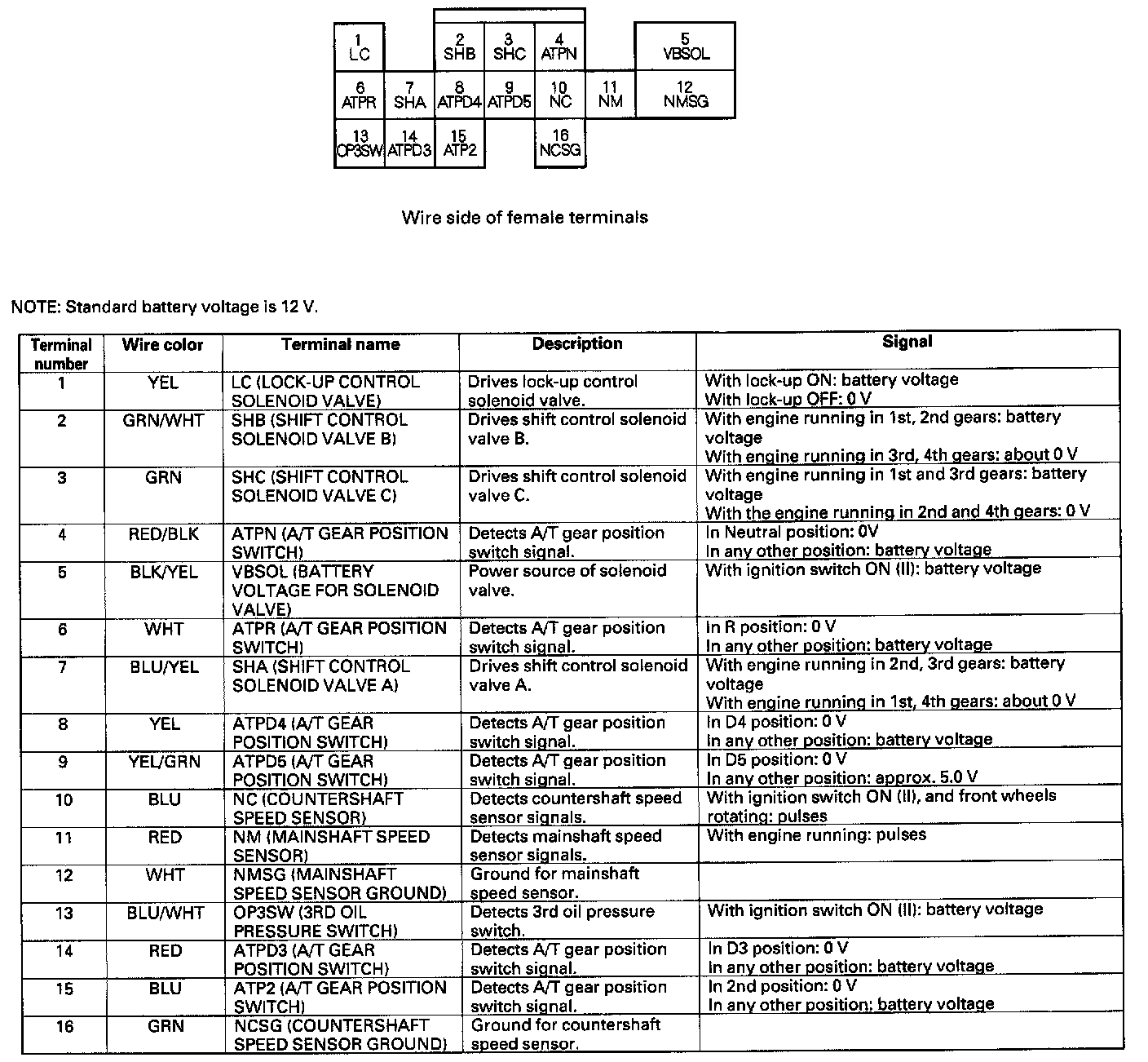

PCM Inputs And Outputs At Connector D (16P) - A/T:

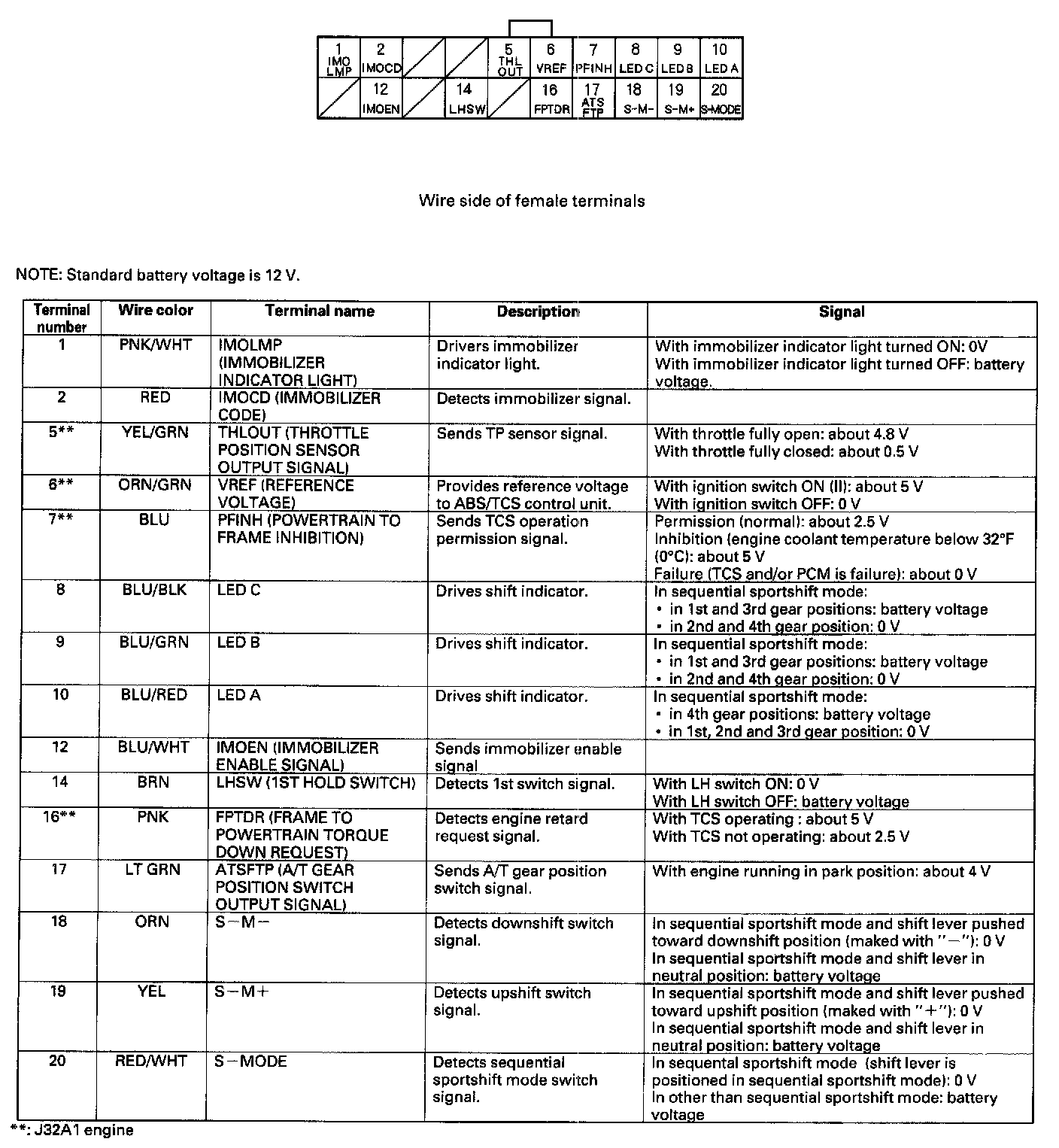

PCM Inputs And Outputs At Connector E (20P) - A/T:

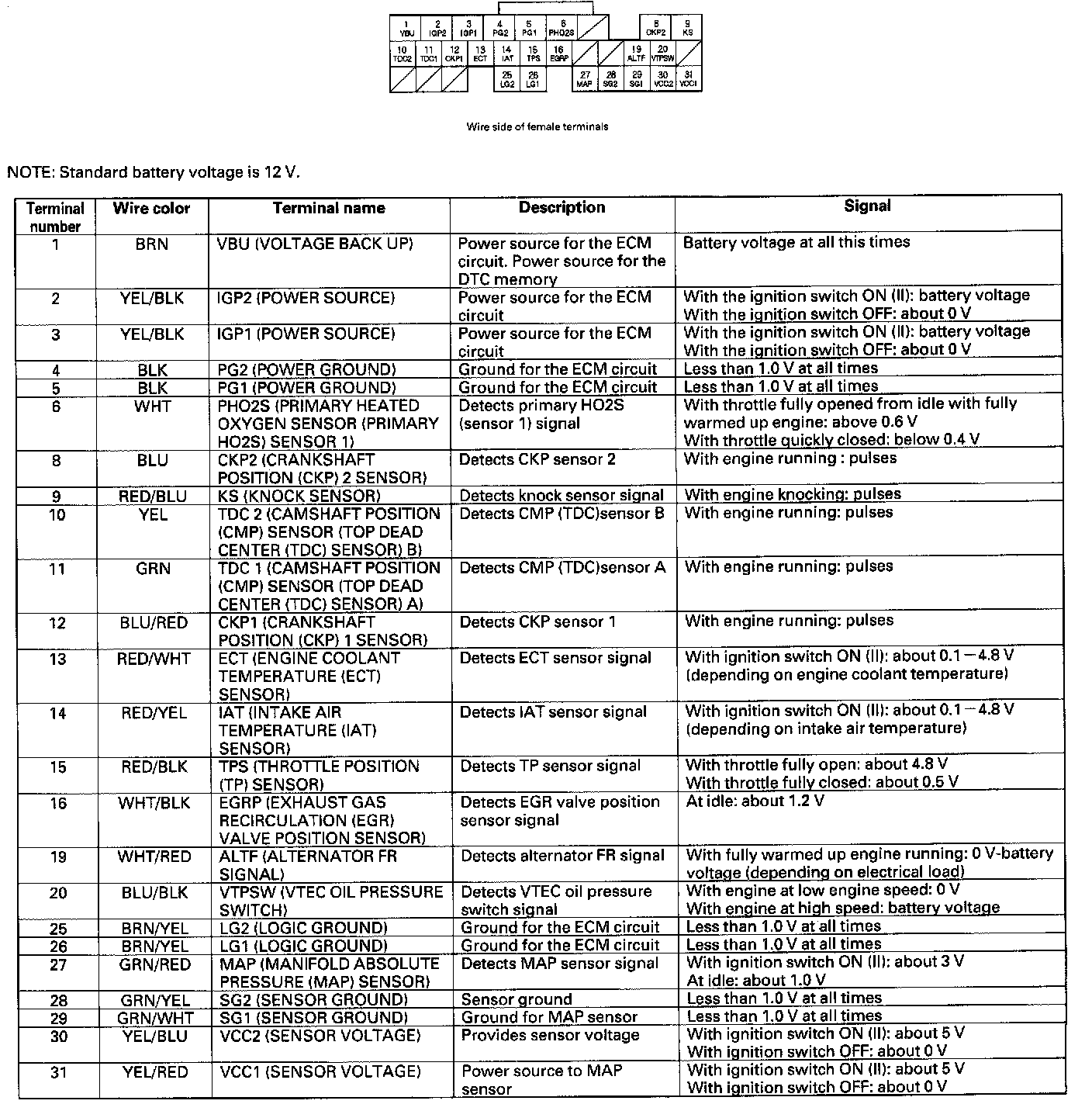

ECM Inputs And Outputs At Connector A (31P) - M/T:




ECM Inputs And Outputs At Connector B (24P) - M/T:

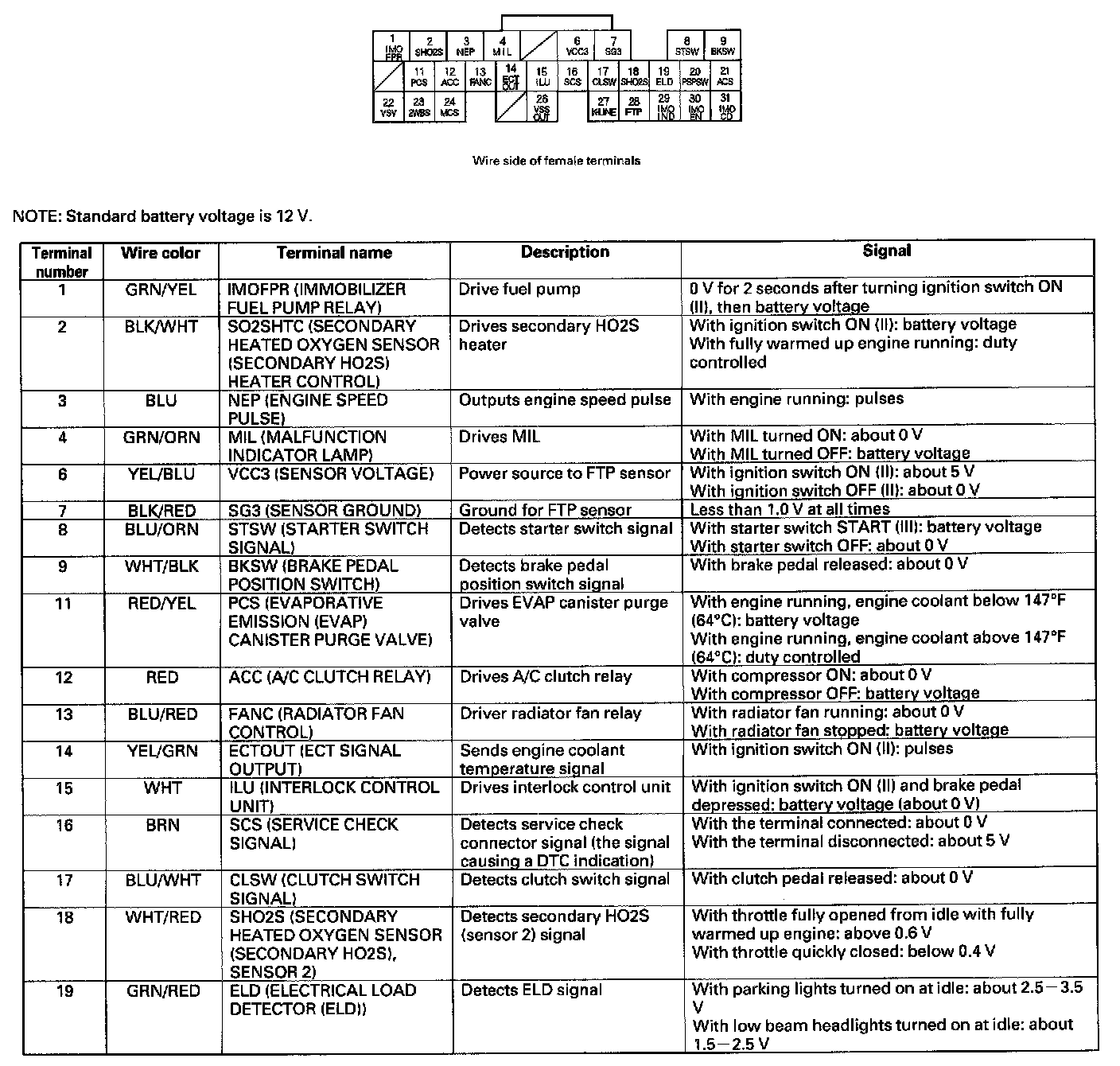

ECM Inputs And Outputs At Connector E (31P) - M/T:




ECM Inputs And Outputs At Connector E (31P) - M/T:
