Transmission Position Sensor/Switch: Testing and Inspection

Transmission Range Switch Test

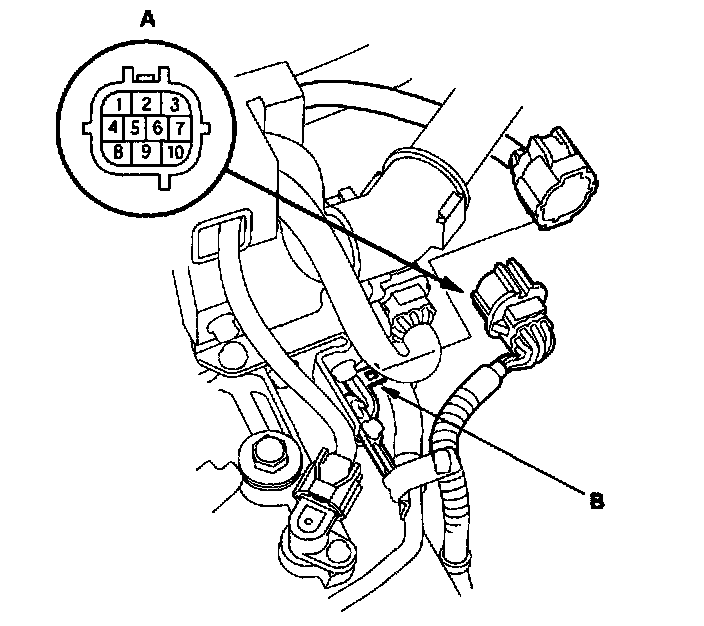

1. Remove the transmission range switch connector (A) from the connector bracket (B), then disconnect the connector.





2. Check for continuity between the terminals in each switch position according to the table.

NOTE: Terminal No. 1: Neutral position switch

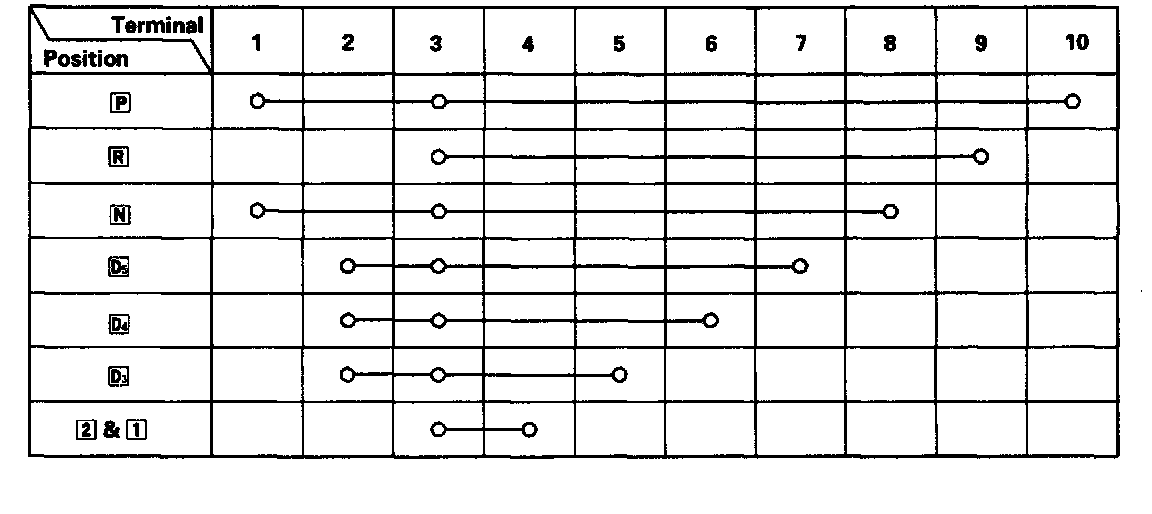

Transmission Range Switch Continuity check
