Power Window Control Module: Locations

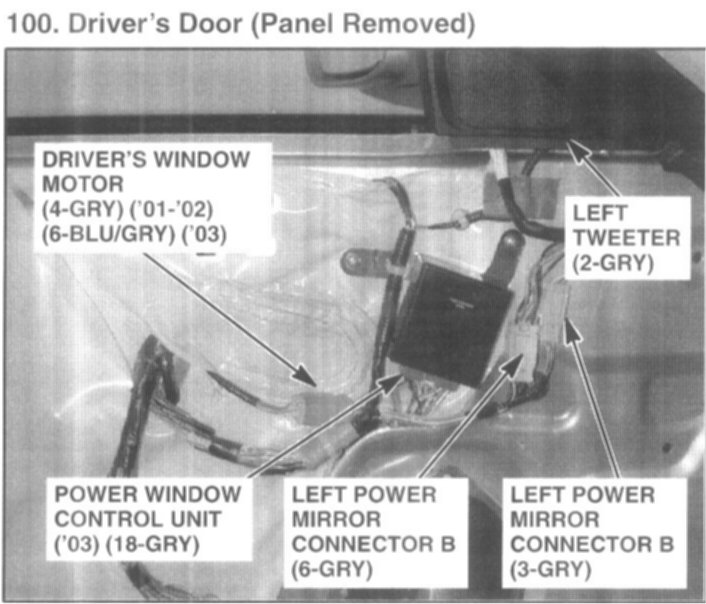

100. Driver's Door (Panel Removed):

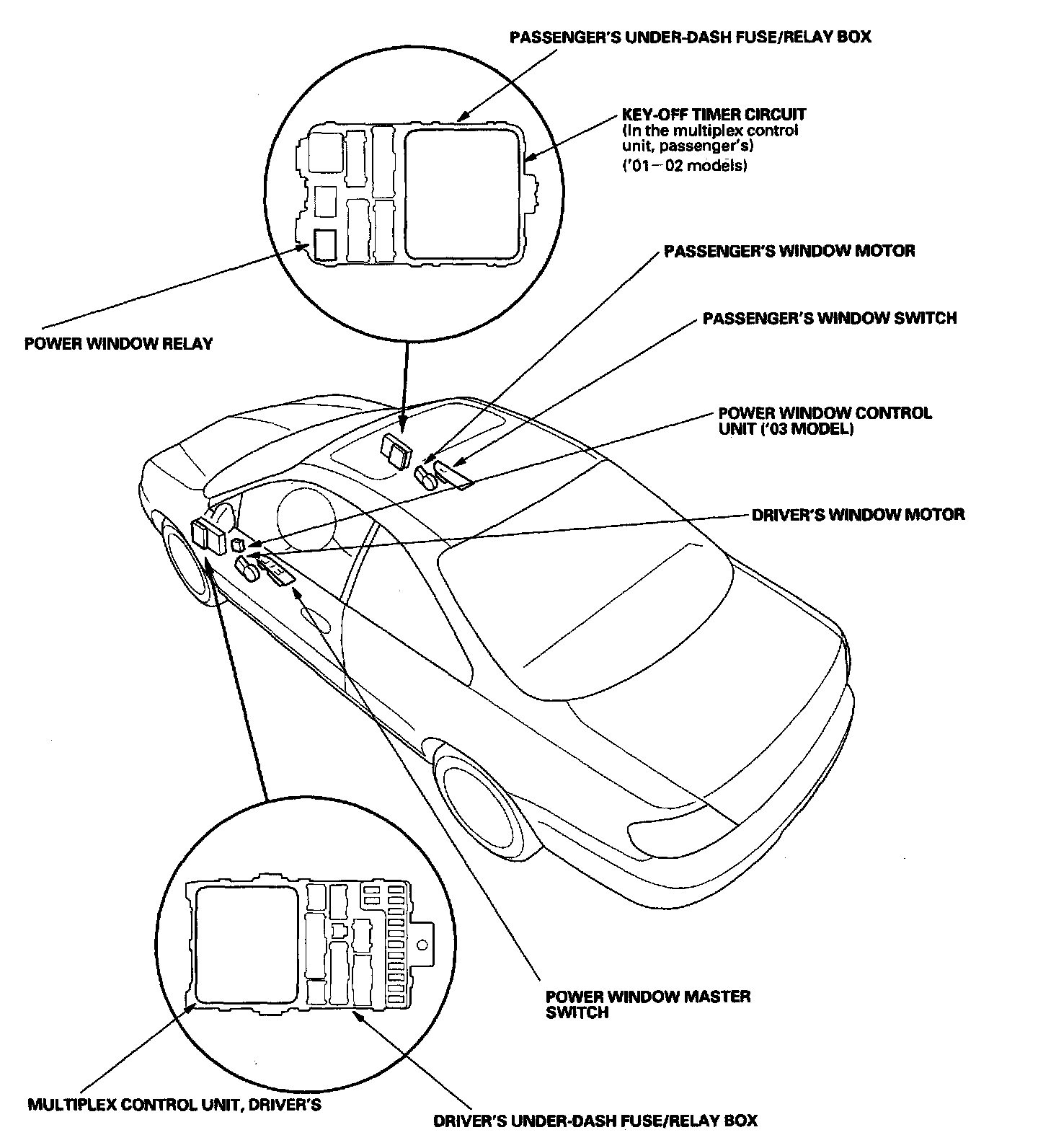

Power Windows Component Location Index:
