Passenger's Power Window Motor

Remove passenger's door panel. See DOOR PANEL  under REMOVAL & INSTALLATION. Disconnect power window motor 2-pin connector. See Fig 1 or Fig 2 . Using a fused jumper wire, connect battery voltage to power window 2-pin connector terminal No. 1 (Blue/White wire). Using another jumper wire, ground power window 2-pin connector terminal No. 2 (Blue/Red wire). Motor should go up smoothly. When polarity is reversed, power window motor should go down smoothly. Replace power window motor if it does not operate smoothly in both directions.

Fig 1: Testing Passenger's Power Window Motor (3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

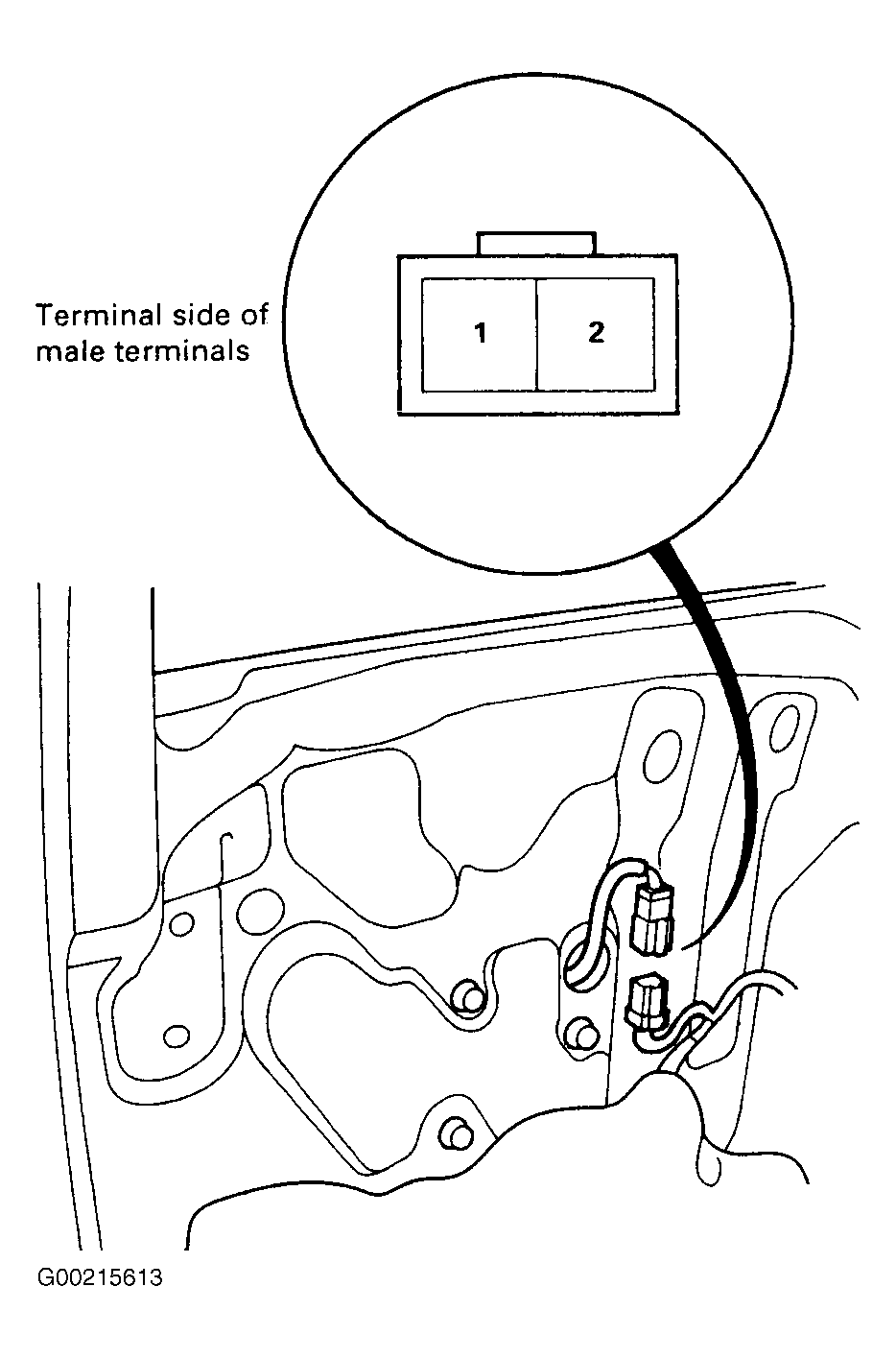

Fig 2: Testing Passenger's Power Window Motor (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
