VSA-TCS Control Valve Assembly Replacement

NOTE: Be careful not to damage the TCS control valve when handling the TCS control valve assembly.
  1. Remove the battery.
  2. Remove the intake air duct (A).
    Fig 1: Removing Intake Air Duct
    G01156422Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the TCS control valve sensor 3P connector (A) and TCS control valve actuator 2P connector (C), then remove the TCS control valve assembly.

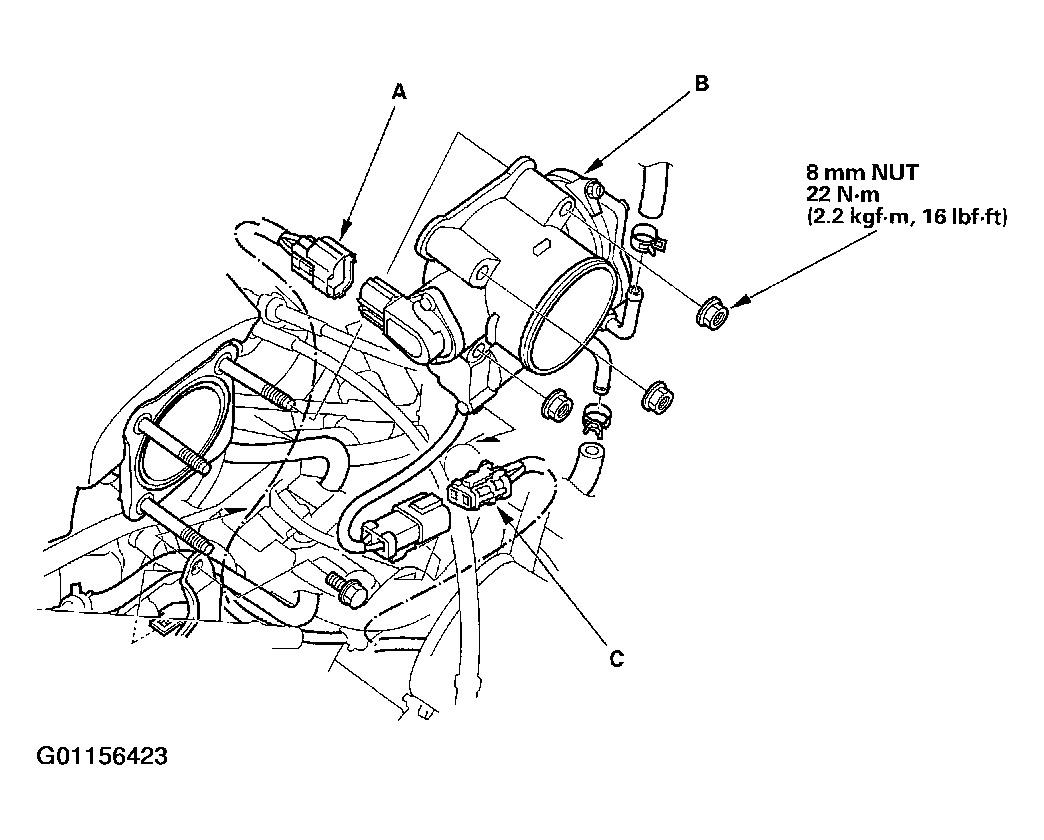

    Fig 2: Removing TCS Control Valve
    G01156423Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the TCS control valve assembly in the reverse order of removal.
