Display Unit Connector Inputs and Outputs

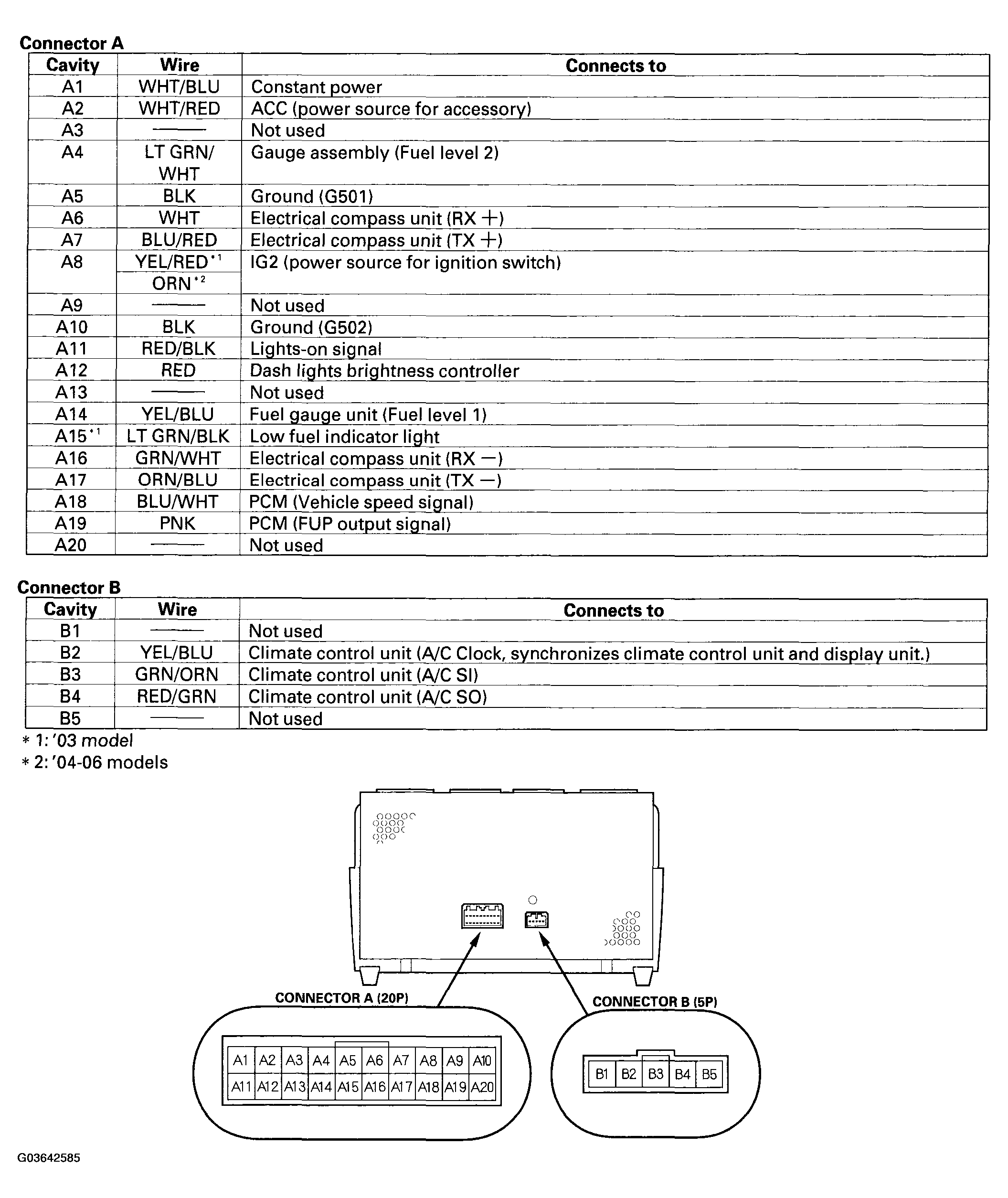

Fig 1: Identifying Display Unit Connector Inputs And Outputs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
