Throttle Actuator Control Module Relay and A/F Sensor Relay Connector End View

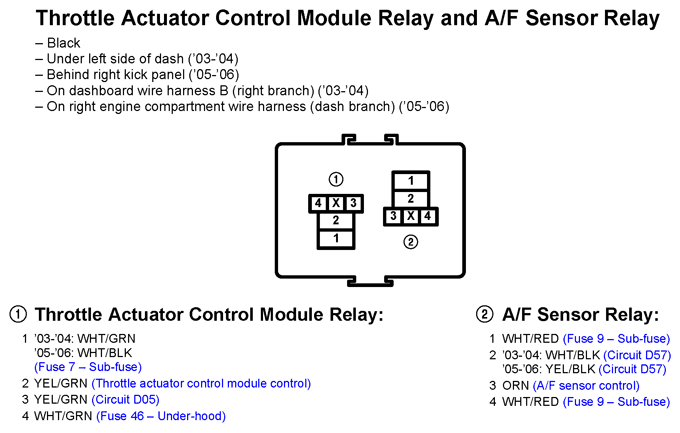

Fig 1: Throttle Actuator Control Module Relay and A/F Sensor Relay Connector End View
G11248155Courtesy of AMERICAN HONDA MOTOR CO., INC.
