Blower Unit Component Replacement

Note these items when overhauling the blower unit:

• The recirculation control motor (A), the power transistor (B) and the blower motor (C) can be replaced without removing the blower unit.
• Before reassembly, make sure that the recirculation control linkage and doors move smoothly without binding.
• After reassembly, make sure the recirculation control motor runs smoothly (see RECIRCULATION CONTROL MOTOR TEST  ).

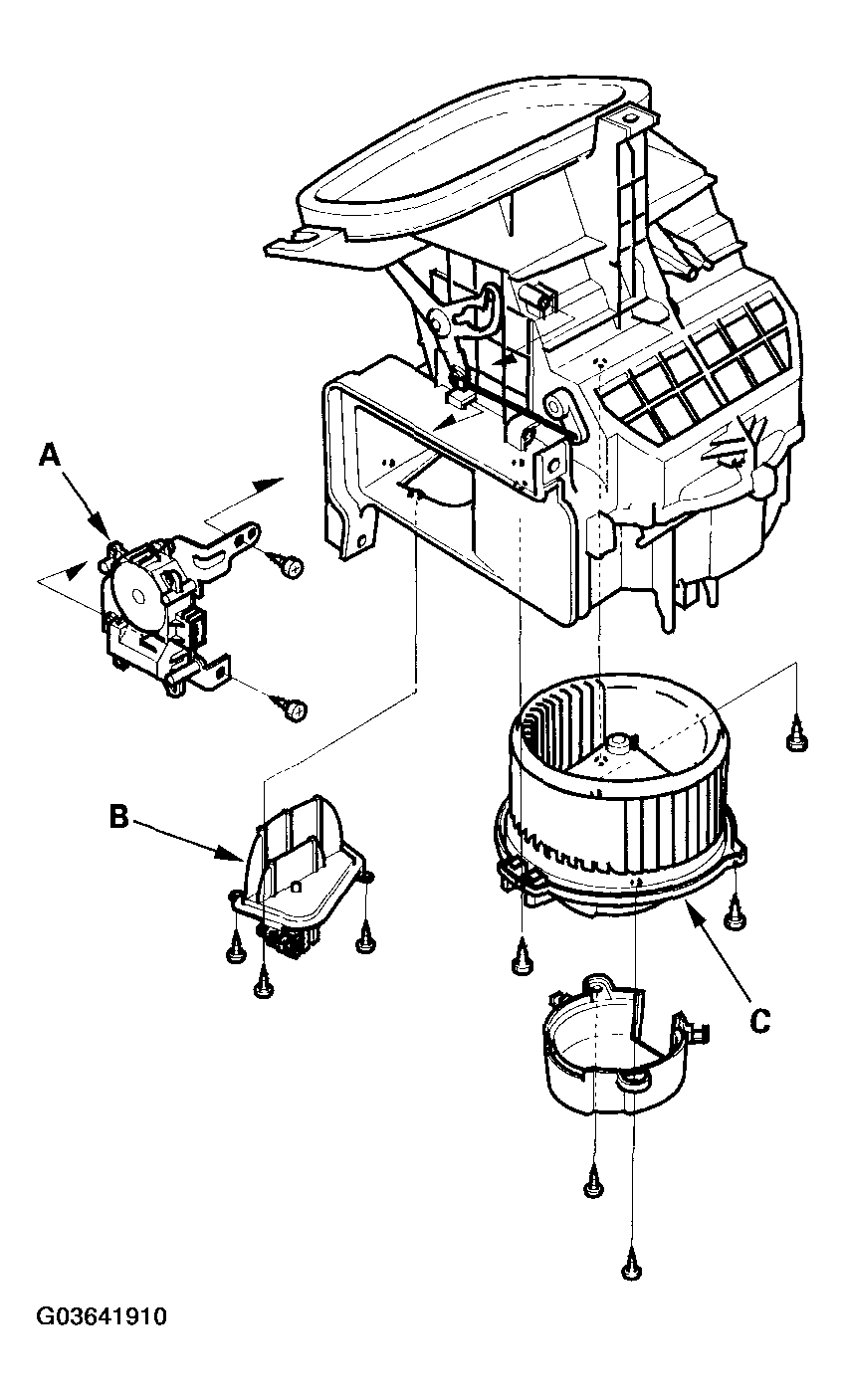

  Fig 1: Removing Blower Unit Components

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
