In-Car Temperature Sensor Test
Check for a change in resistance by heating or cooling the sensor with a hair dryer.

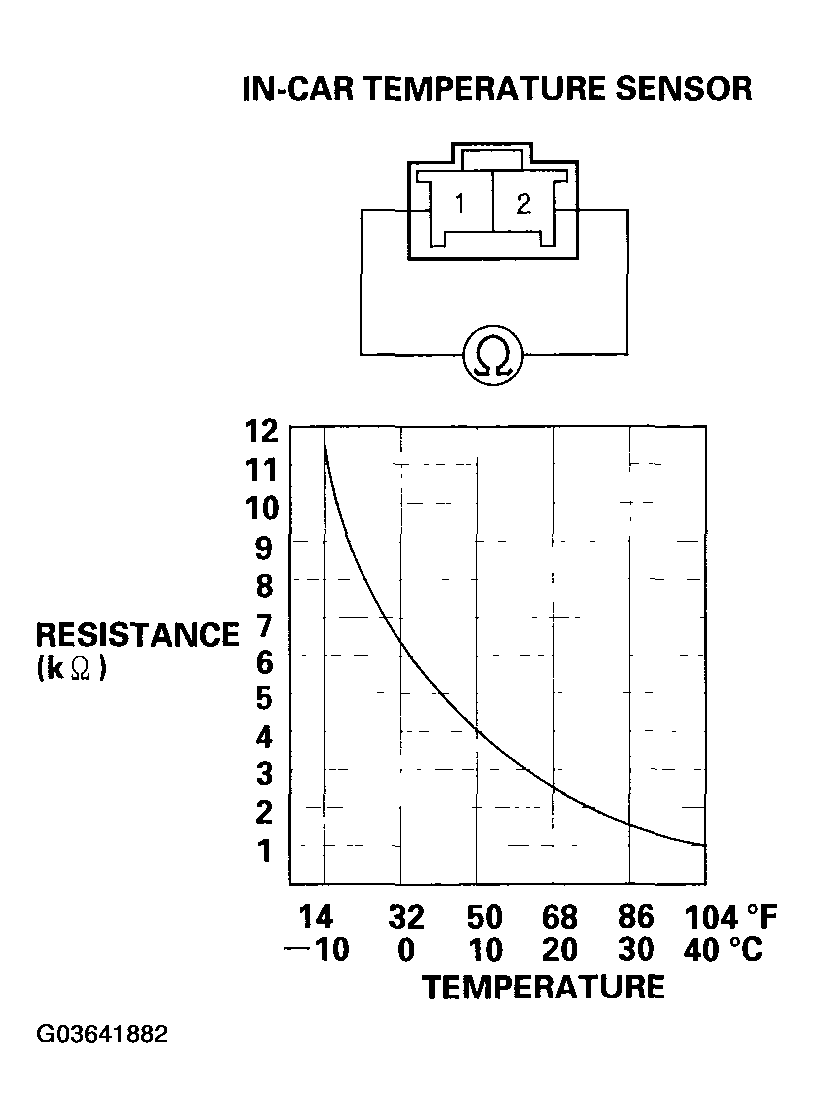

Compare the resistance reading between the No. 1 and No. 2 terminals of the in-car temperature sensor with the specifications shown in the graph; the resistance should be within the specifications.
