In-car Temperature Sensor Replacement

  1. Remove the driver's dashboard lower cover (see DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws and the in-car temperature sensor (A) from the driver's dashboard lower cover (B).

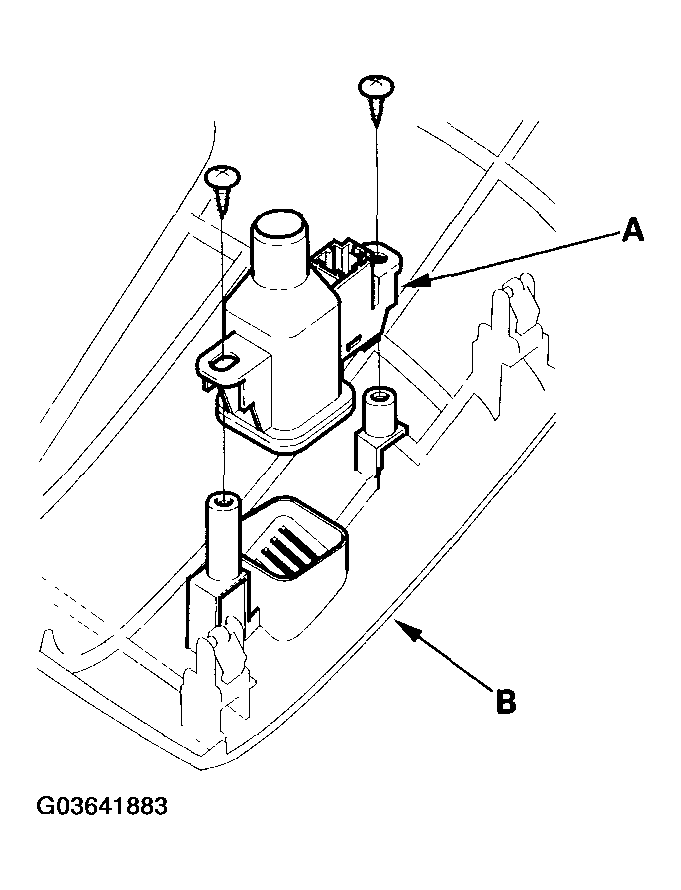

    Fig 1: Removing In-Car Temperature Sensor From Driver's Dashboard Lower Cover
    G03641883Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
