ATF Cooler Hose Replacement

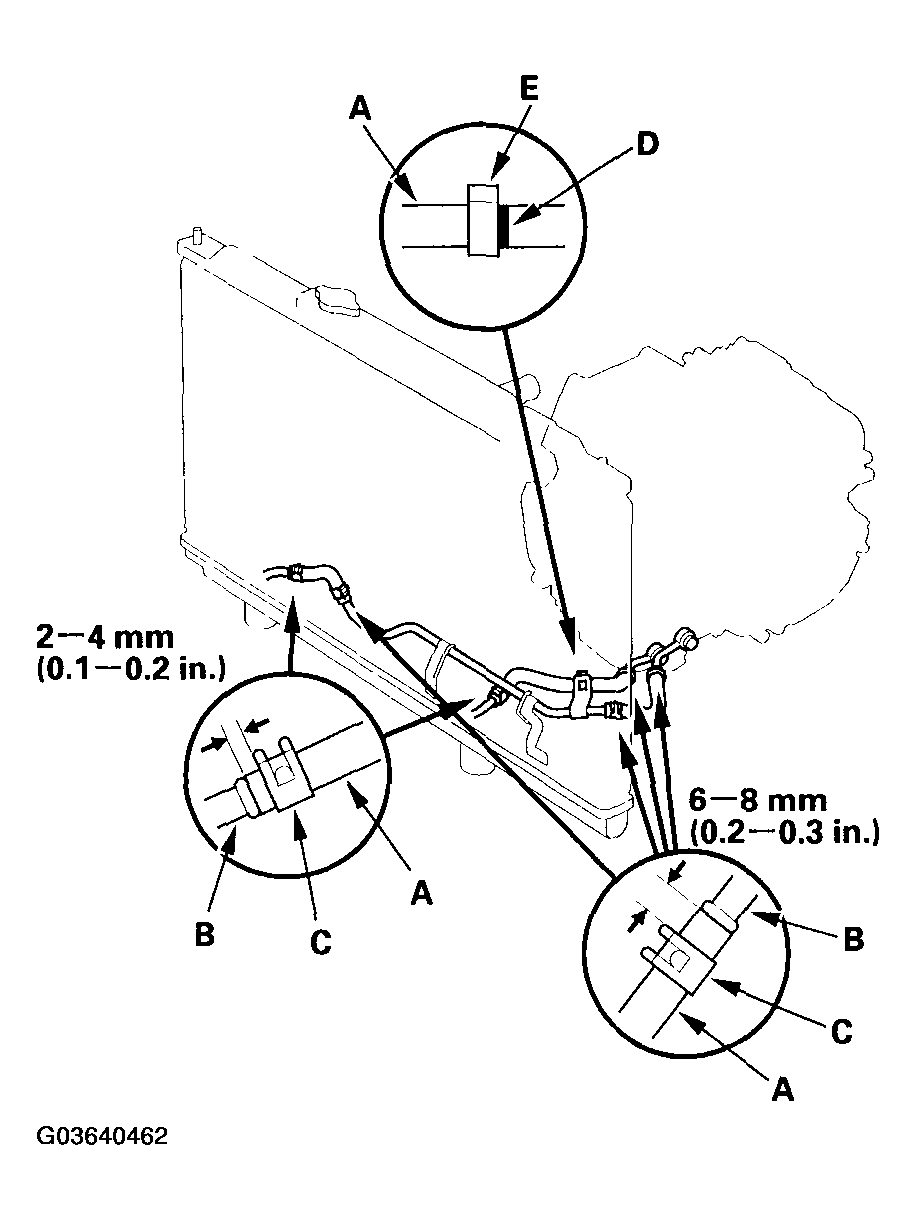

- Connect the cooler hoses (A) to the ATF cooler lines (B) and ATF cooler, and secure them with the clips (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Clamp the ATF cooler hose with the yellow mark (D) on the clamp (E).
