3rd Clutch Transmission Fluid Pressure Switch Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the connector from the 3rd clutch transmission fluid pressure switch (A).

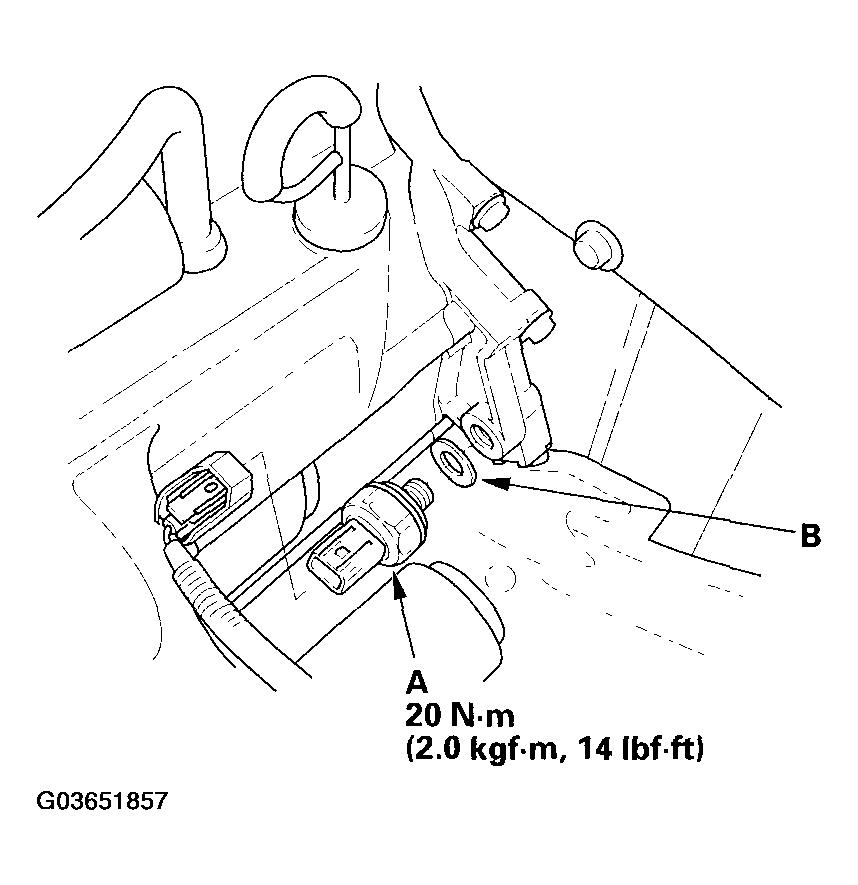

    Fig 1: Disconnecting Connector From 3rd Clutch Transmission Fluid Pressure Switch And Torque Specifications
    G03651857Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the 3rd clutch transmission fluid pressure switch, then install a new one with a new sealing washer (B). Tighten the switch to the specified torque.
  3. Reconnect the connector, making sure there is no water, oil, dust, or foreign particles inside the connector.
