Cruise Control Set/Resume/Cancel Switch Test/Replacement

Set/Resume/Cancel Switch Test/Replacement

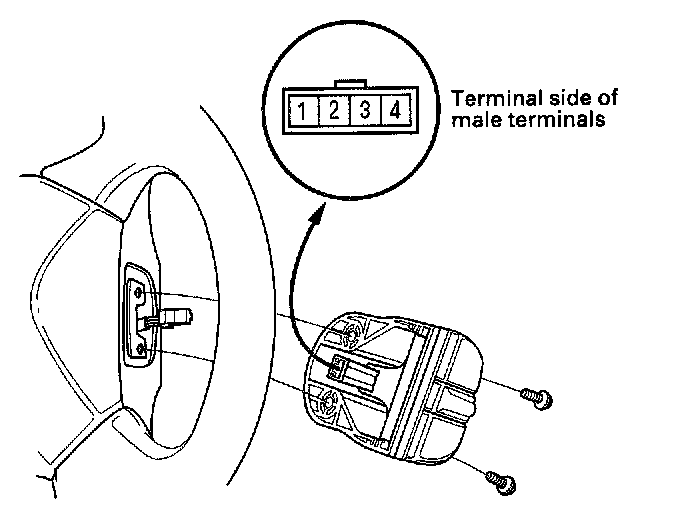

1. Remove the two screws, then remove the switch.

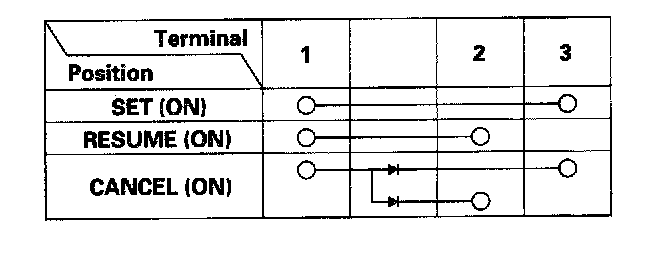

2. Check for continuity between the terminals in switch position according to the table.
- If there is continuity, and it matches the table, but switch failure occurred on the cruise control unit input test, check and repair the wire harness on the switch circuit.
- If there is no continuity in one or both positions, replace the switch.
