Home >> Acura >> 2003 >> RSX L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Air Bag Control Module

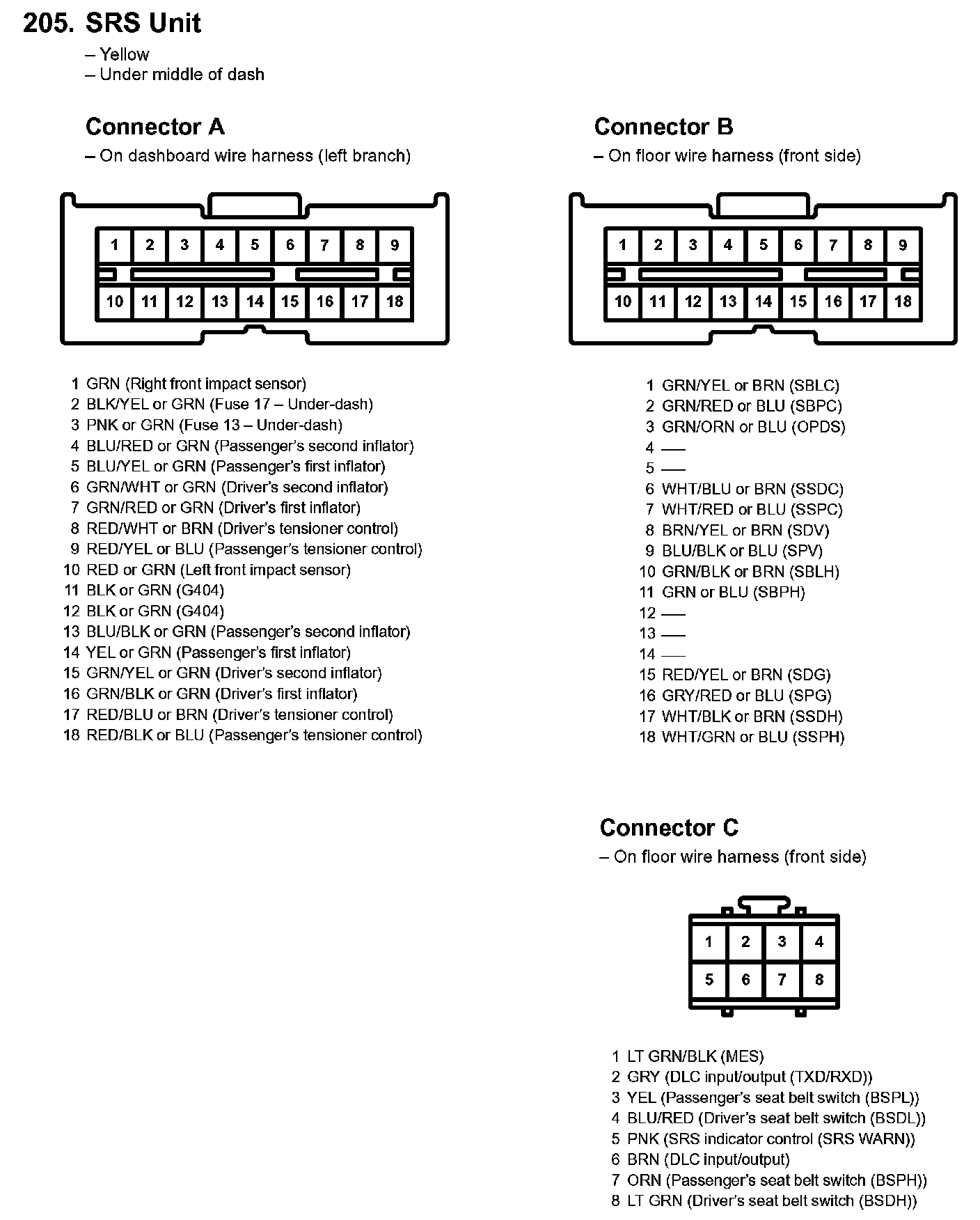

205. SRS Unit:

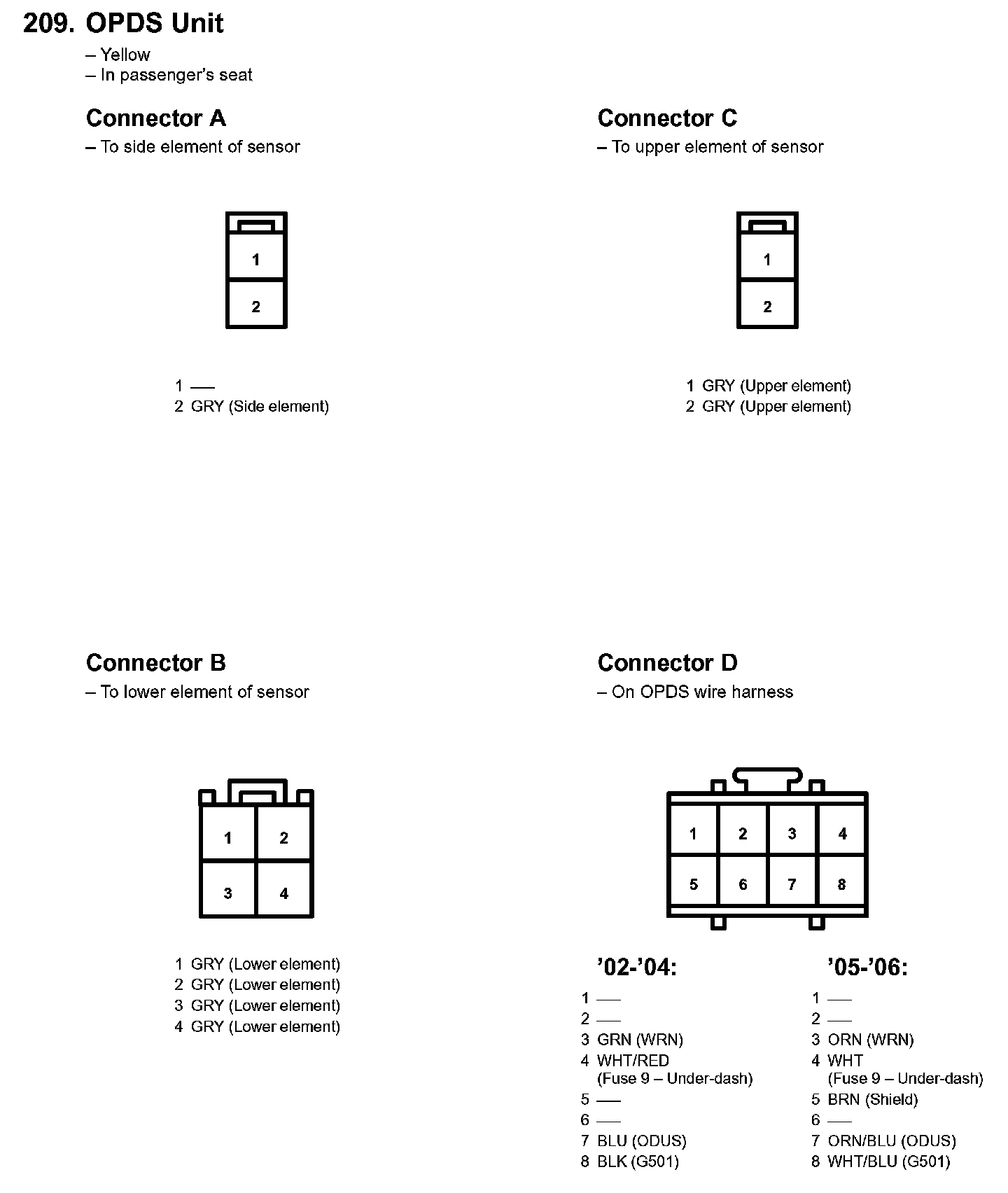

209. OPDS Unit:
