Heater Control Panel
Heater Control Panel Removal/InstallationNOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related pants, to prevent damage.
- Take care not to scratch the dashboard and related parts.

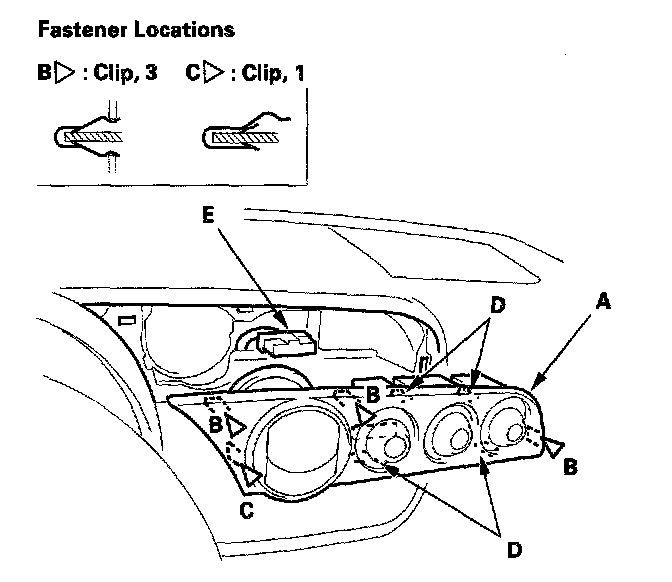

1. Gently pry up on the heater control panel (A) to detach the clips (B, C) and to release the hooks (D), then pull out the panel.
2. Disconnect the climate control unit connector (E), then remove the panel.

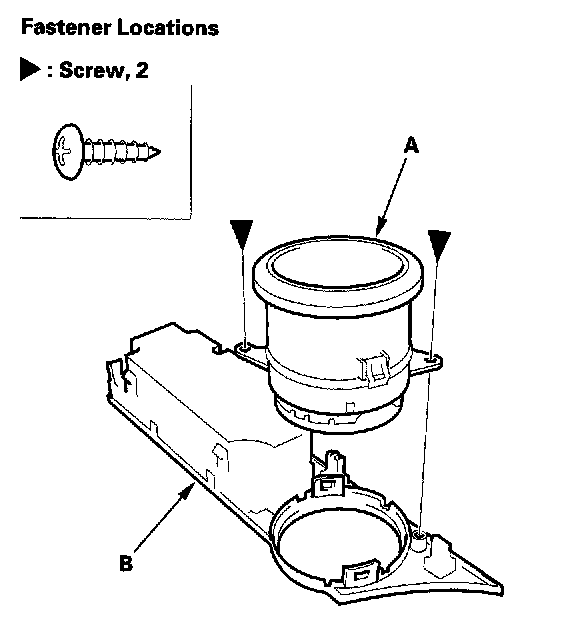

3. If necessary, remove the screws securing the driver's center vent (A), then separate it from the heater control panel (B).
4. Install the panel in the reverse order of removal, and make sure the climate control unit connector is plugged in properly.
