Main Relay (Computer/Fuel System): Diagrams

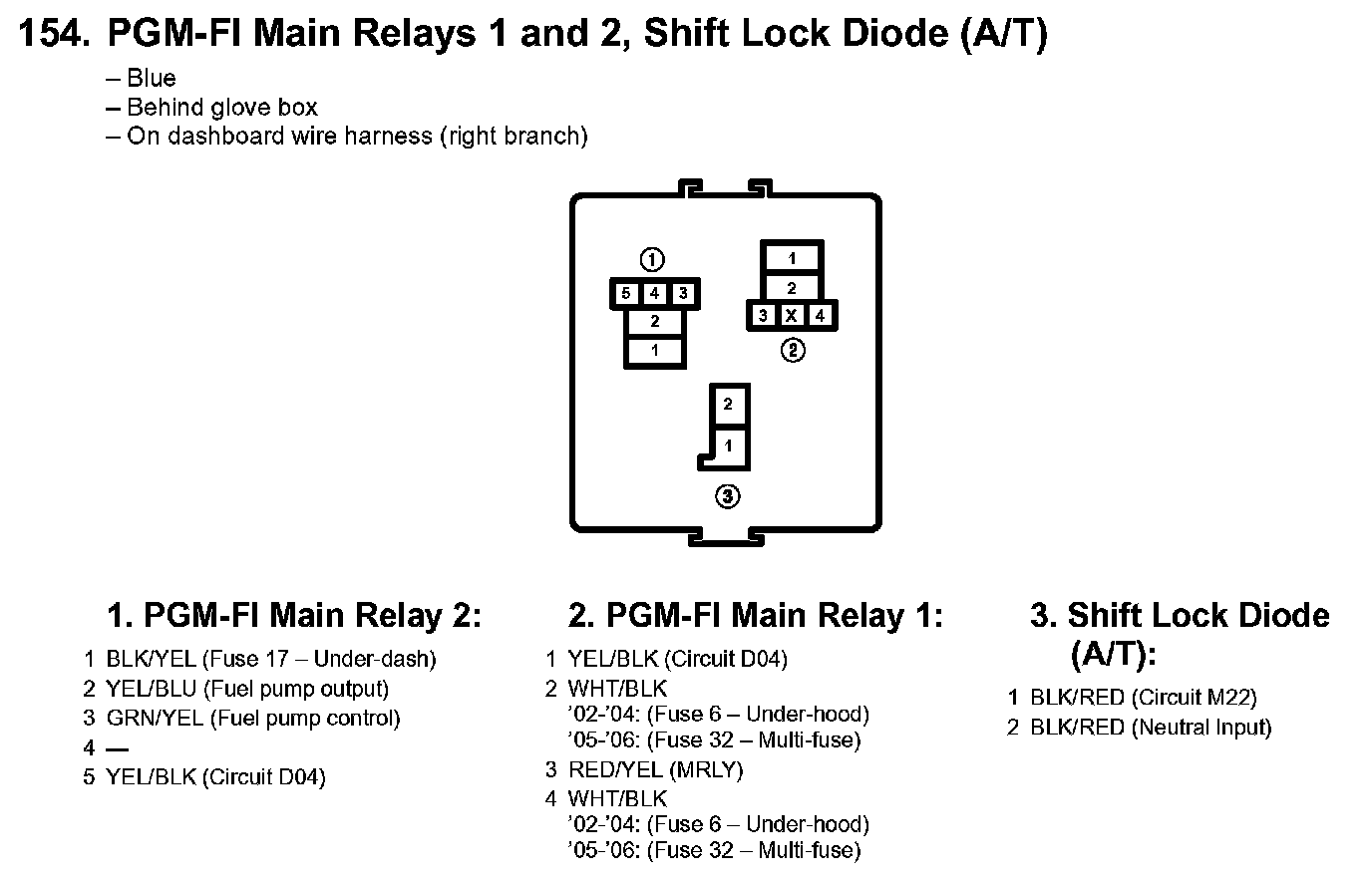

154. PGM-FI Main Relays 1 And 2, Shift Lock Diode (A/T):
